Dell OptiPlex 390/3010
Setup And Features Information
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury,
or death.

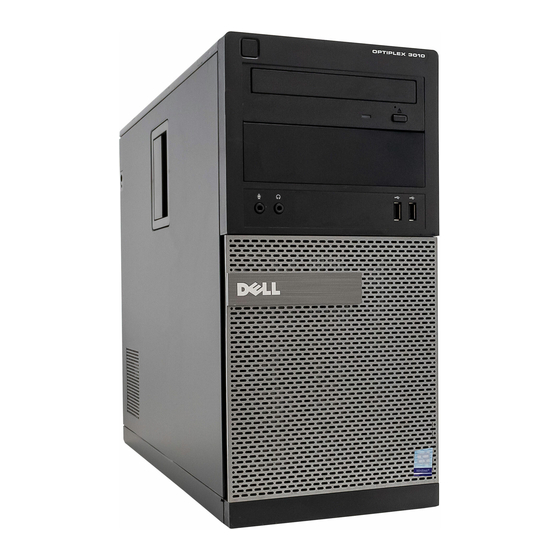

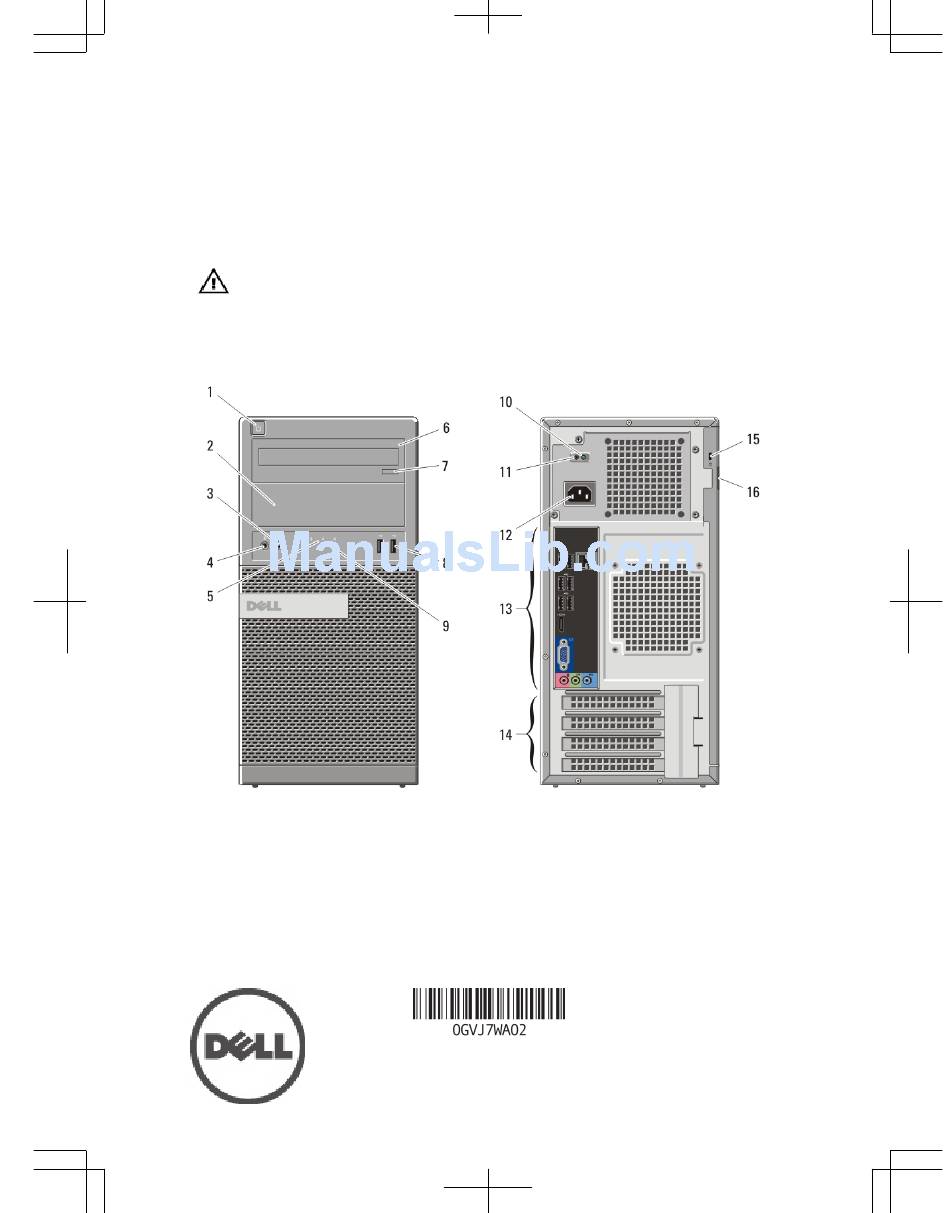

Mini-Tower — Front And Back View
Figure 1. Front And Back View Of Mini-Tower
1. power button
2. optical drive bay
3. headphone connector
4. microphone connector
5. diagnostic lights (4)
6. optical drive
7. optical-drive eject button
8. USB 2.0 connectors (2)
9. hard-drive activity light
10. power-supply diagnostic light
Regulatory Model: D04S, D07D, D12M
Regulatory Type: D04S001, D07D001,
D12M001
2012 - 05
Advertisement
Related Manuals for Dell OptiPlex 3010
Summary of Contents for Dell OptiPlex 3010
- Page 1 Dell OptiPlex 390/3010 Setup And Features Information About Warnings WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Mini-Tower — Front And Back View Figure 1. Front And Back View Of Mini-Tower 1. power button 6. optical drive 2.
-
Page 2: Desktop - Front And Back View
11. power-supply diagnostic button 15. security cable slot 12. power cable connector 16. padlock ring 13. back panel connectors 14. expansion card slots (4) Desktop — Front And Back View Figure 2. Front And Back View Of Desktop 1. optical drive 8. - Page 3 15. power-supply diagnostic button Mini-Tower And Desktop — Back Panel Figure 3. Back Panel View of Mini-Tower And Desktop 1. link integrity light 6. USB 2.0 connectors (6) 2. network connector 7. HDMI connector 3. network activity light 8. VGA connector 4.
- Page 4 Small Form Factor — Front And Back View Figure 4. Front And Back View Of Small Form Factor 1. optical drive 9. padlock ring 2. optical-drive eject button 10. security cable slot 3. power button 11. power cable connector 4. USB 2.0 connectors (2) 12.
-
Page 5: Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with your computer. For additional best practices information, see www.dell.com/regulatory_compliance NOTE: Some devices may not be included if you did not order them. - Page 6 Figure 7. VGA Connector Connect the USB keyboard or mouse (optional). Figure 8. USB Connection Connect the network cable (optional). Figure 9. Network Connection Connect the power cable(s). Figure 10. Connecting Power Press the power buttons on the monitor and the computer.
-
Page 7: Specifications
Specifications NOTE: The following specifications are only those required by law to ship with your computer. For a complete and current listing of the specifications for your computer, go to support.dell.com. Power Coin-cell battery 3 V CR2032 lithium coin cell... -
