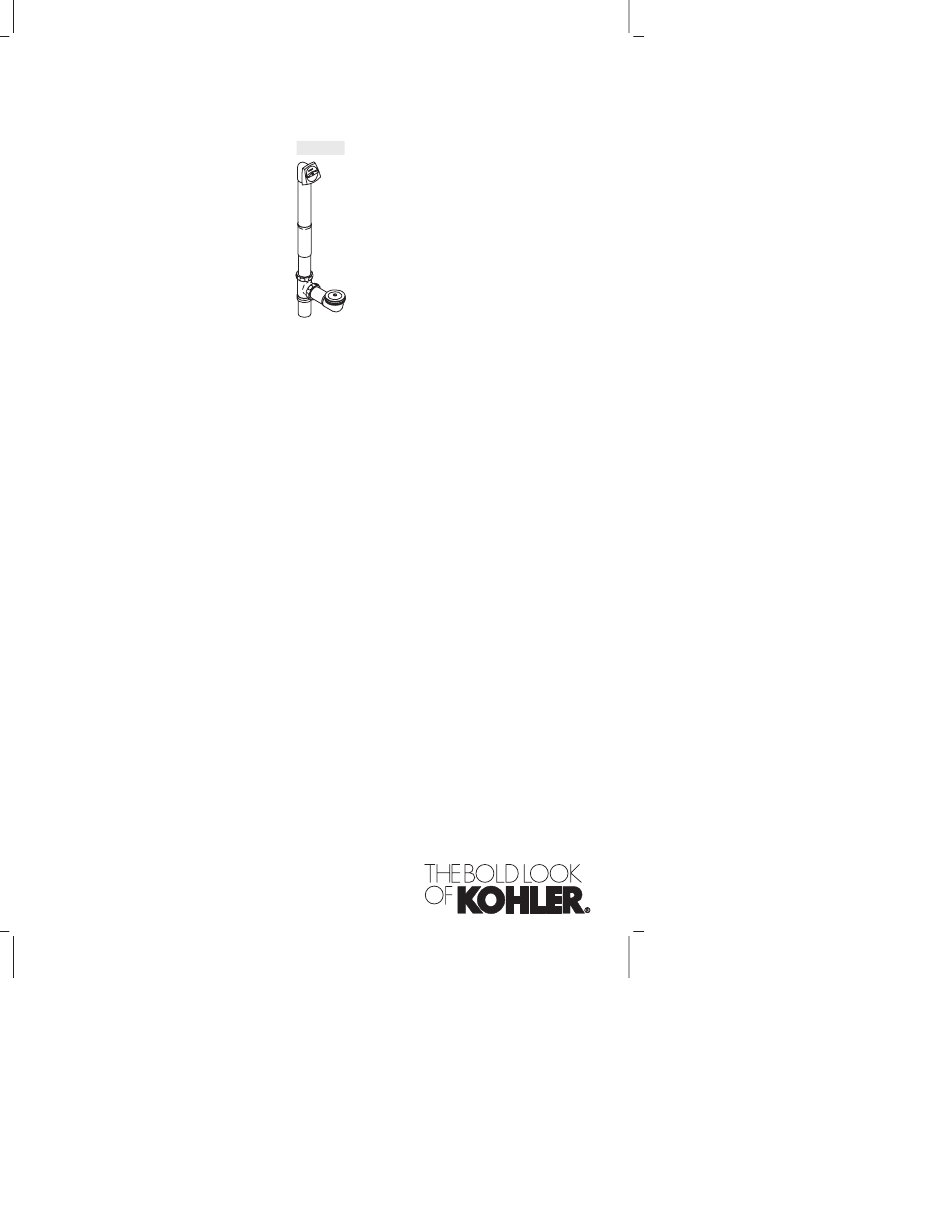

- Page 1 Installation Guide Bath Drain K–7167 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page“ Français-1” Español, página“ Español-1” 112035-2-AB...
-
Page 2: Tools And Materials
Sealant Tape Thank You For Choosing Kohler Company We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don’t hesitate to contact us. Our phone numbers and website are listed on the back cover. - Page 3 Before You Begin (cont.) Kohler Co. reserves the right to make revisions in the design of drains without notice, as specified in the Price Book. Kohler Co. 112035-2-AB...
- Page 4 Set the gasket between the drain ell and the underside of the bath. Thread the strainer into the drain ell until snug. Do not fully tighten at this time. 112035-2-AB Kohler Co.
- Page 5 Align the overflow ell with the overflow hole in the bath. From inside the bath, thread two screws through the retainer plate and into the two lower holes in the overflow ell. Tighten the screws. Kohler Co. 112035-2-AB...
- Page 6 Apply thread sealant to the threads on the tailpiece. Insert the tailpiece into the trap inlet, with 1” (2.5 cm) to 2” (5.1 cm) inside the trap. The tailpiece may need to be cut for proper fit. Attach the tailpiece to the tee and tighten. 112035-2-AB Kohler Co.
- Page 7 Tighten the drain ell securely by inserting pliers handles into the top of the strainer. Turn the strainer into the drain ell. Remove any excess sealant. Kohler Co. 112035-2-AB...
- Page 8 Refer to the bath installation instructions to determine your bath size. If necessary, loosen the screw and adjust the linkage. The screw should be aligned with the 16 for 16″ (40.6 cm) baths, 14 for 14″ (35.6 cm) etc. Tighten the screw after adjusting. 112035-2-AB Kohler Co.
- Page 9 Insert the lift rod assembly into the overflow ell. Tighten the overflow hood to the overflow ell with the two screws provided. Assemble the handle to the overflow hood with the provided screws. It may be necessary to adjust the handle to the desired position. Kohler Co. 112035-2-AB...
- Page 10 Loosen the screw and slide the adjusting block up onto the adjusting rail to increase clearance or down to decrease clearance. Tighten the screw and insert the lift rod assembly back into the overflow ell. 112035-2-AB Kohler Co.
