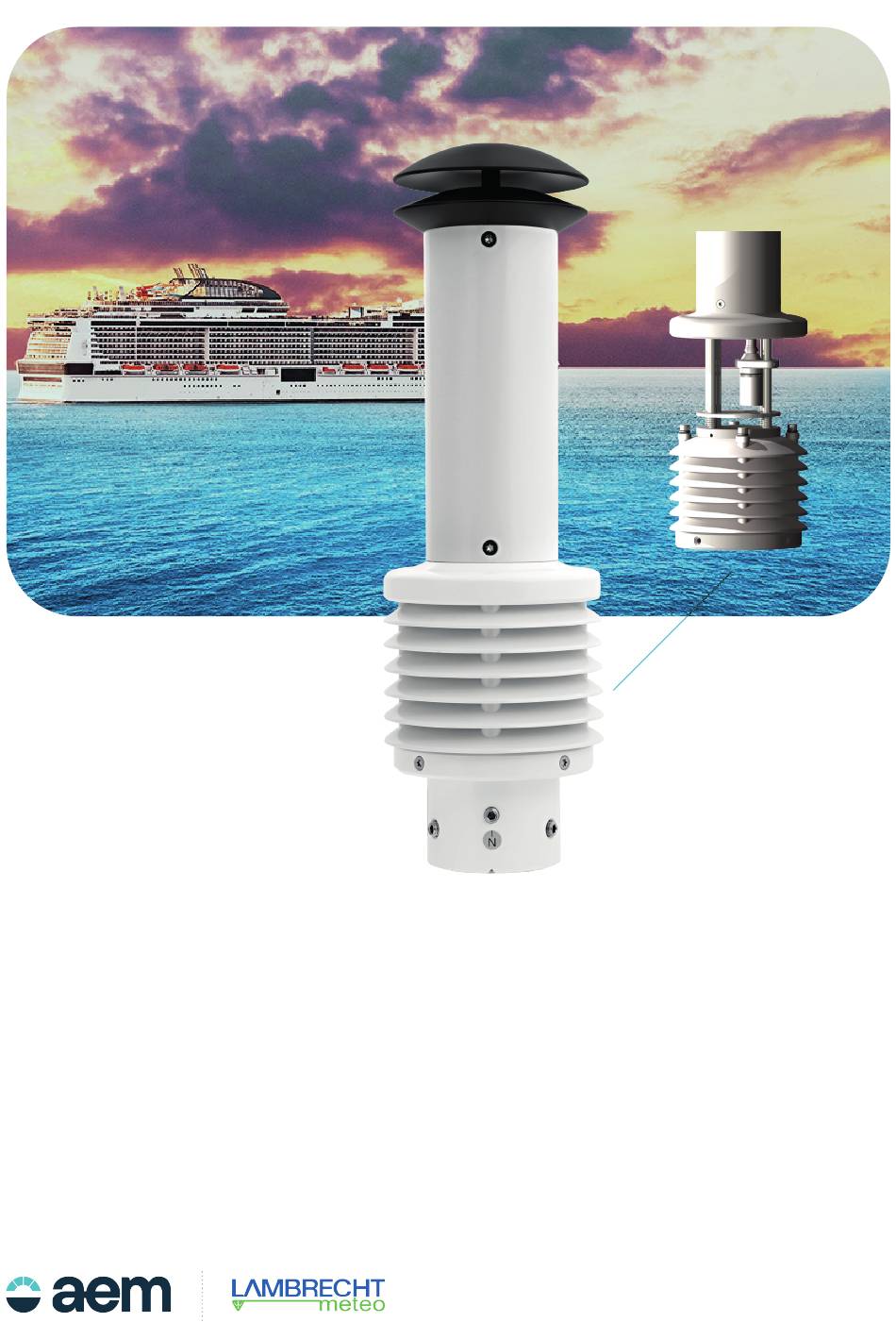

- Page 1 USER MANUAL EOLOS-NAV2 Static Weather Sensor...
-
Page 2: Table Of Contents
Power supply and signal cable 5.8.2. Safety regulations Maintenance 6.1. Regular maintenance and calibration 6.2. Visual checks and cleaning Transports Illustrated parts catalog Disassembly and assembly of the lower sensor section Dimensional drawings and connection diagrams Data protocols Technical data Disposal page – aem.eco... -
Page 3: Safety Instructions
+ Dew point temperature (calculated value) • With independent, integrated sensors for high accuracy of each individual parameter • No moving measuring elements, i.e. no wear, low maintenance, and very service-friendly • For very high wind speeds up to 85 m/s aem.eco page –... -
Page 4: Introduction
The wind parameter can be measured also in winter time accurate and precise, because of the electronic controlled heating for the immovable measuring elements. This heating is particularly effective against ice and snow in all climatic zones. • Lightweight mass and immovable measuring elements to enable very low starting values, distance- and page – aem.eco... -
Page 5: Start-Up
If you want to measure both wind direction and wind speed, it is recommended to mount both sensors at the same spot, where any interaction between the sensors should be avoided. The sensor EOLOS-NAV2 easily meets this requirement. aem.eco page –... -
Page 6: Tools And Installation Material
5.5. Power supply The compact sensor requires 24 VDC as a power supply for the electronics. The sensor heating must be supplied with 24 VDC and has a power consumption of 70 W (max. 3 A). page – aem.eco... -
Page 7: Power Consumption
There is a corresponding marking on the appliance housing for this purpose (see dimensional drawing). Align the sensor to the north before tightening the screws. Please ensure that the sensor is firmly attached to the mast! aem.eco page –... -
Page 8: Sensor Alignment
EIA/RS-422 / Talker. The line drivers are capable of transmitting data over cable lengths up to 1,220 meters (4,000 feet). This maximum distance will vary depending upon the ope- rational environment, the wire gauge used, and the baud- rate of the attached devices. page – aem.eco... -
Page 9: Safety Regulations
If problems arise during the tests that you cannot solve, please contact the LAMBRECHT meteo service at: Tel: +49-(0)551-4958-0 E-Mail: support-lambrecht@aem.eco Transports If the sensor is to be shipped or transported by you, it must be securely packaged to prevent mechanical impact or other damage. -
Page 10: Illustrated Parts Catalog
LAMBRECHT meteo | EOLOS-NAV2 Illustrated parts catalog Figure: Spare parts and consumables SPARE PARTS LIST Description Part no. Quantity per unit Protection shelter with lamellas 37.16432.001000 Weather module (temperature/humidity) 37.16433.002000 Sinter cap weather module 37.08095.100001 page – aem.eco... -
Page 11: Disassembly And Assembly Of The Lower Sensor Section
Herausdrehen der 4 Senkkopfschrauben aus dem unteren Ring der Wetter- schutzhütte mit einem Torx-Schlüssel TX20. Schutzhütte vorsichtig nach unten schieben und abnehmen. Carefully push the sensor shelter down and remove it. Schutzhütte vorsichtig nach unten schieben und abnehmen. aem.eco page –... - Page 12 Wechselkappe zu arbeite weather module it has to be completely dried. We um das Wettermodul nicht zu lange ungeschützt suggest working with an exchange cap to assure that zu las sen. the weather module isn’t unprotected for too long. page – aem.eco...
- Page 13 Sensor auf den Masten Screw the mounting set screws and the north setzt werden kann. screw as far as the sensor can be placed on the Erdungsanschlussschrauben wieder an- mast. schrauben. 8. Fix the earthing screws. aem.eco page –...
-
Page 14: Dimensional Drawings And Connection Diagrams
LAMBRECHT meteo | EOLOS-NAV2 10. Dimensional drawings and connection diagrams 72,5 Datum Name Benennung Revision Bearb. 16.06.2016 Krell EOLOS-NAV II Gepr. 00.16432.210002 Norm. Artikelnummer Blatt 80.16432.210M01 1 / 1 Zust. Änderungen Datum Name Dateiname Ersatz für: 80.16432.210M01.idw page – aem.eco... - Page 15 LAMBRECHT meteo | EOLOS-NAV2 aem.eco page –...
-
Page 16: Data Protocols
WMO and outputs at wind from the north the value field delimiter: , (comma) “360.0” respectively “0.0” at calm (lull). header: $WIMHU rel. humidity: 000.0...100.0 dew point temp.: -40.0...+70.0 C: °C stop limiters: <CR> <LF> error code: 999.9 page – aem.eco... -
Page 17: Technical Data
Aluminum; anodized; IP66 Dimensions H 388 mm; Ø 120 mm; mast adapter Ø 50 mm for mounting on standard pipe Weight Approx. 2.5 kg Interface Serial; RS-422/ Talker; Baud rate 4800, 1 Hz (measurement cycle of 4 Hz); 8N1 aem.eco page –... -
Page 18: Disposal
Copyright © 2025 LAMBRECHT meteo GmbH. All rights reserved. Information in this document subject to change without notice. Photo copyright: © Parilov - Adobe stock EOLOS_NAV2_b-de.indd 13.25 LAMBRECHT meteo GmbH Friedländer Weg 65 +49-(0)551-4958-0 37085 Göttingen E-Mail info-lambrecht@aem.eco Germany Internet www.lambrecht.net page – aem.eco...
