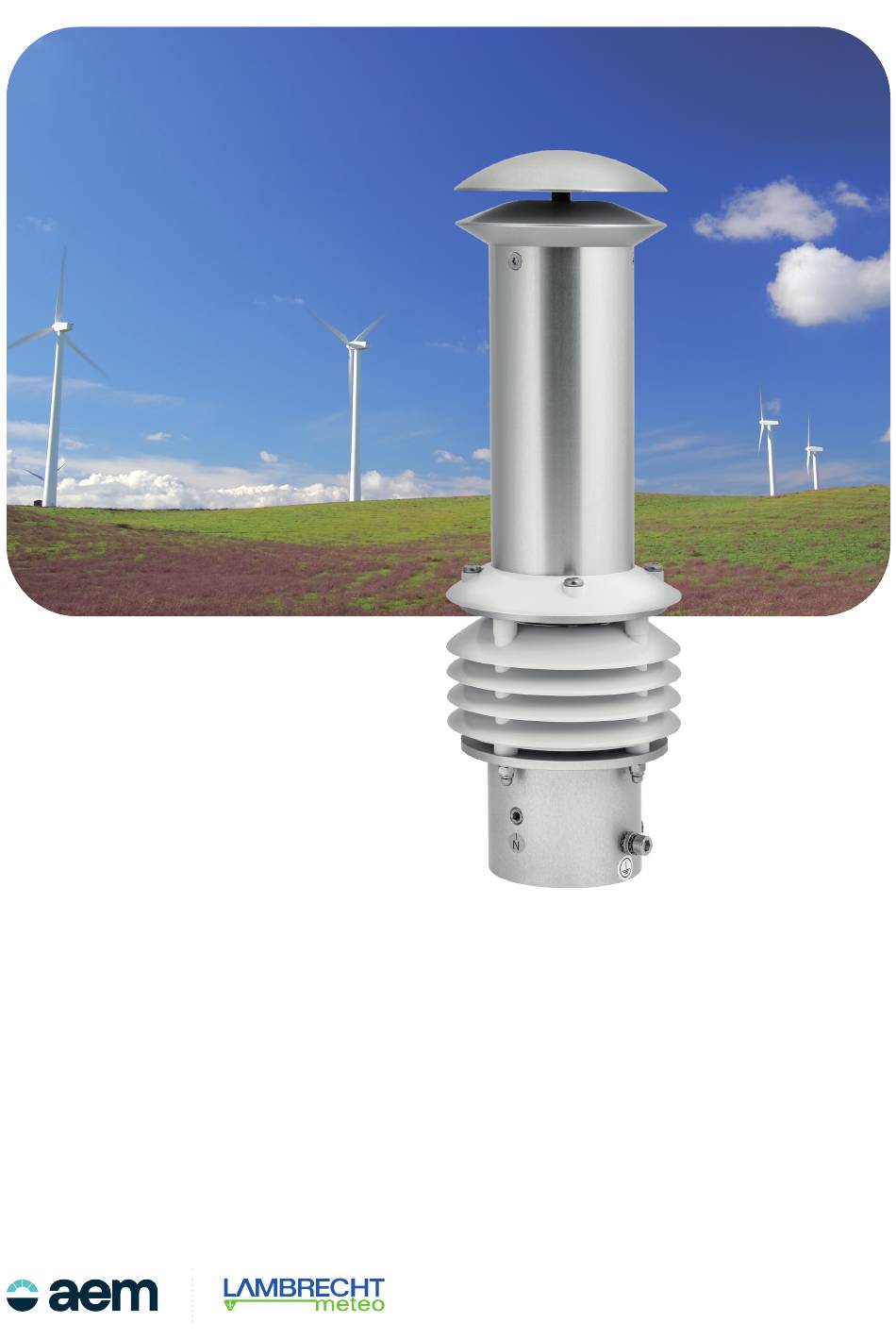

- Page 1 USER MANUAL EOLOS-IND Static Weather Sensor...
-
Page 2: Table Of Contents
North alignment of wind sensor 2.7.2. Power and signal connection 2.7.3. Safety regulations Maintenance 3.1. Regular maintenance and calibration 3.2. Visual check and cleaning Transports Dimensional drawings and electrical connections Data protocols Disposal Versions and technical data page – aem.eco... -
Page 3: Introduction
Lightweight mass and immovable measuring elements to enable very low starting values, distance- and attenuation constants as well as a very high repetition accuracy. • The compact sensor is easy to install. Minor deviations from the vertical (pitch) can be neglected with this measurement principle. aem.eco page –... -
Page 4: Setting To Work
The maximum electric field intensity may not exceed 10 V/m (tested according to EMC standard). When indicated a greater distance should be kept. To avoid possible measurement errors due to heat sources as hot or warm fumes, hot surfaces etc. next to the sensor, the mounting site should be chosen accordingly. page – aem.eco... -
Page 5: Tools And Installation Aids
Wind speed Ø Power input 0 m/s 500 mA 5 m/s 650 mA 20 m/s 900 mA 38 m/s 1100 mA Measured at a supply voltage of 24 V DC and 20 °C (without heating) aem.eco page –... -
Page 6: Protection
Once the sensor is adjusted, it can be fixed with the two hexagonal screws. Finally the earth screw has to be connected to the ship’s ground. Acid-free contact grease is recommended to protect contact surfaces against corrosion. page – aem.eco... -
Page 7: Power And Signal Connection
If reference measurements are required, it is essential to ensure that comparability of the measurement values is only possible if the measurements are taken under the same conditions. This means that the reference device must be used in close proximity to the sensor! aem.eco page –... -
Page 8: Visual Check And Cleaning
In case you should be faced with any specific problems please contact the Lambrecht meteo service under: Tel: +49-(0)551-4958-0 E-mail: support-lambrecht@aem.eco Transports In case it is necessary to ship or to transport the sensor must be carefully packed to prevent damages during transport. -
Page 9: Dimensional Drawings And Electrical Connections
LAMBRECHT meteo | EOLOS-IND Dimensional drawings and electrical connections aem.eco page –... - Page 10 LAMBRECHT meteo | EOLOS-IND page – aem.eco...
-
Page 11: Data Protocols
This is valid for sensors with a 2 cm -tipping bucket. With sensors with a 4 cm3-tipping bucket the instantaneous value is to be multiplied by 2. M: identifier for precipitation 01: transducer ID stop delimiters: <CR> <LF> aem.eco page –... -
Page 12: Disposal
For an environmentally friendly recycling and disposal of your old device, contact a certified disposal company for electronic waste. Outside the EU Please follow the regulations in your country regarding the appropriate disposal of waste electronic equipment. page – aem.eco... -
Page 13: Versions And Technical Data
At sensor connector; when connected to a LAMBRECHT standard cable (15 m) the supply voltage range on the side of the power supply switches to 18.7...32 V DC. When using other cables and cable lengths the individual voltage drop has to be considered. aem.eco page... - Page 14 Copyright © 2024 LAMBRECHT meteo GmbH. All rights reserved. Information in this document subject to change without notice. 1643x_IND_b-de.indd 47.24 Photo copyright: © Mark Rasmussen - Adobe stock LAMBRECHT meteo GmbH +49-(0)551-4958-0 Friedländer Weg 65 +49-(0)551-4958-312 37085 Göttingen E-Mail info-lambrecht@aem.eco Germany Internet www.lambrecht.net page – aem.eco...
