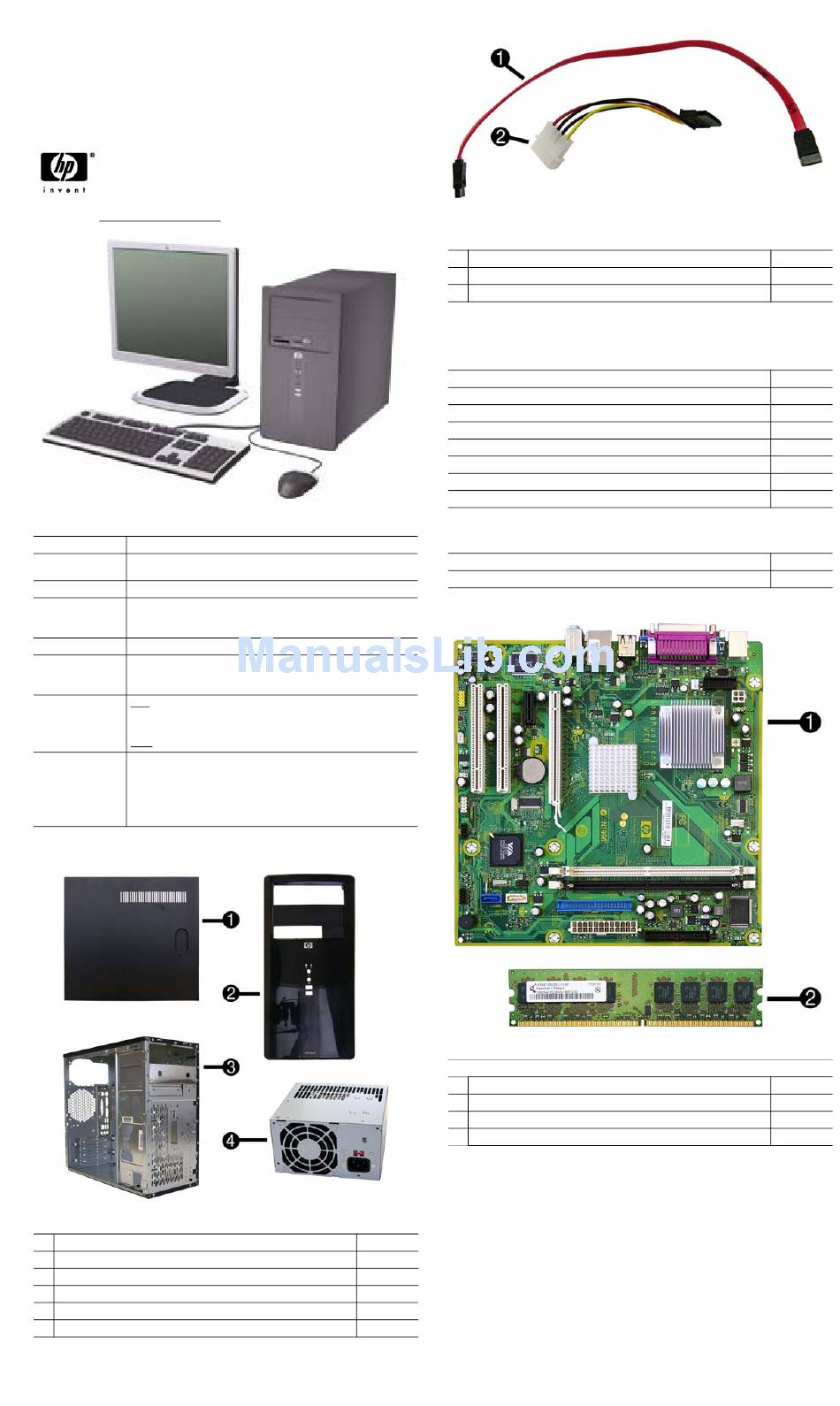

HP dx2040 Illustrated Parts & Service Map

Illustrated Parts & Service Map
HP Compaq dx2040 Microtower Business PC
©
2009 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Document Number 571404-001.
NOTE: See http://partsurfer.hp.com for current spare parts listings.
Key Specifications
Processor Type VIA C7-D Model D 1.8-GHz, 128K L2 cache, 800-MHz FSB
RAM Type PC2-6400 (800 MHz) non-ECC (system downgrades to PC2-5300
(667 MHz) non-ECC
Maximum RAM 4 GB
Expansion Slots • 1 PCIe-x16
• 1 PCIe-x1
• 2 PCI 2.3
Graphics Adapter VIA Chrome9™ HC Integrated Graphics with 2D/3D/Video Controllers
Drive Bays • 2 external 5.25-inch (13.335 cm) optical drive bays
• 2 internal 3.5-inch (8.89 cm) hard drive bays
• 1 external 3.5-inch (8.89 cm) bay for media reader or diskette drive
I/O Interfaces Rear: parallel, COM, USB 2.0 (4), RJ-45 (1), line-in or rear speaker
out(for 4 or 5.1 channel) line out or front speaker out (for 4 or 5.1
channel), mic-in or center/subwoofer speaker out (for 5.1 channel
only), PS/2 ports (2), VGA (1)
Front: mic, headphone, USB 2..0 (2)
Operating Systems • Windows Vista Business 32
• Windows Vista Home Basic
• Windows Vista Business w/downgrade to Windows XP Professional
• Windows XP Home
• Red Flag
• FreeDOS

Spare Parts

System Unit
1 Front bezel
2 Access panel
3 Chassis
4 Power supply, PFC, 250W
5 Bezel blank, 5.25 inch
* Bezel blank, 3.5 inch
*Not shown
dx2040 Illustrated Parts & Service Map, MT Chassis
1st Edition May 2009.
570029-001
440197-001
not spared
570028-001
335937-005
459913-001
571404-001
Cables
1 SATA hard drive cable, 10 inch (2 straight ends)
2 PATA to SATA cable adapter
* SATA cable, 14 inch (2 straight ends) (use for optical drive 1)
*Not shown
Mass Storage Devices (not illustrated)
Diskette drive, 3.5-inch, with bezel and mounting screws
48X SATA CD-RW/DVD-ROM drive
16X SATA DVD±RW and CD-RW drive with LightScribe
80 GB, 7200-RPM SATA hard drive, 8-MB cache
160 GB, 7200-RPM SATA hard drive, 8-MB cache
250 GB, 7200-RPM SATA hard drive, 8-MB cache
320 GB, 7200-RPM SATA hard drive, 8-MB cache
Media card reader, 3.5 inch
Keyboards (not illustrated)
PS/2, Basic, People's Republic of China (PRC)
USB, Basic, People's Republic of China (PRC)
Standard and Optional Boards
System board with thermal grease, alcohol pad, and CPU socket cover
1 Standard board
2 Memory module, 1 GB, PC2-6400, CL6
2 Memory module, 2 GB, PC2-6400, CL6
* ATI HD3450, 256-MB graphics card
* Not shown
392307-001
572506-001
391740-001
431452-001
419496-001
447310-001
449978-001
449979-001
449980-001
497731-001
480033-001
435302-AA1
435382-AA1
570030-001
418951-001
457624-001
491168-001
