Foamit FG-10N-3-TM Service Manual

10 gallon fog unit with timer
Hide thumbs

Advertisement

Table of Contents

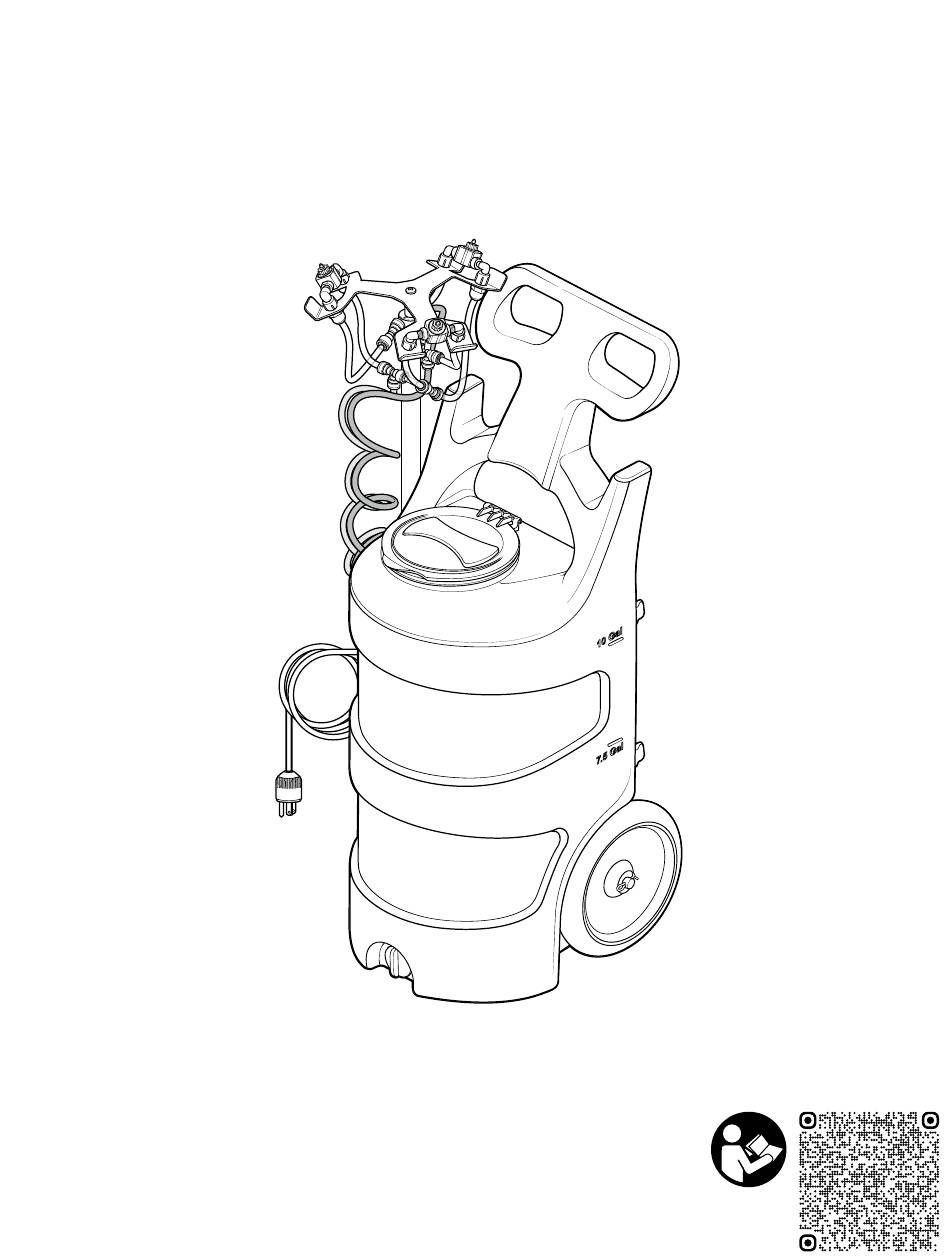

10 Gallon Fog Unit With Timer
Service Manual
FG-10N-3-TM
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
Scan this code for
service manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FG-10N-3-TM and is the answer not in the manual?

Questions and answers

Related Manuals for Foamit FG-10N-3-TM

Summary of Contents for Foamit FG-10N-3-TM

  • Page 1 10 Gallon Fog Unit With Timer Service Manual FG-10N-3-TM READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
  • Page 2 Touching damaged electrical cords may result in electrical shock, serious injury or death. Always inspect electrical cords and extension cords for damage before connecting the unit to power supply. DO NOT touch a damaged electrical cord, or extension cord, that is connected to power supply. Model: FG-10N-3-TM V20250310 • Page 2 of 12...

  • Page 3: Protect The Environment

    • Crescent wrench (2x) • #2 Phillips head screwdriver • ⁷/16 in. (11 mm) open-ended wrench • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: FG-10N-3-TM V20250310 • Page 3 of 12...
  • Page 4 50 psi (3.4 bar). If the air gauge reads more or less than 50 psi (3.4 bar), adjust pressure by turning the knob on the top of the air regulator. Model: FG-10N-3-TM V20250310 • Page 4 of 12...

  • Page 5: Tank Assembly

    * Additional colors available, see datasheet for options. Item number Description 5 TNK-10N Tank - 10 gallon natural - portable Drain plug assembly for portable 6 DPA units - includes gasket Model: FG-10N-3-TM V20250310 • Page 5 of 12...
  • Page 6 Wheel - 10 in. - non-marking Flat washer for 5/8 in. od pipe or axle - 12 FW58 stainless steel - 0.64 in. id x 1.2 in. od x 0.05 in. thk WHLA-AXL14 Model: FG-10N-3-TM V20250310 • Page 6 of 12...

  • Page 7: Back Plate Assembly

    ⅜ in. id blue hose - hybrid TPE - 9 H38BL-F available per ft. Plug-in elbow 3/8 in. tube x 3/8 in. 10 QFSEL38 polypropylene 3/8 in. od natural tube - 11 TB38N-PE polyethylene - available per ft. Model: FG-10N-3-TM V20250310 • Page 7 of 12...
  • Page 8 12 WS-20CFM 20 CFM - 1/ 4 in. FPT ports Air fitting - 1/ 4 in. MPT quick disconnect 13 AP14 hose coupling plug - nickel-plated brass WSA-20CFM* *Optional assembly sold separately Model: FG-10N-3-TM V20250310 • Page 8 of 12...
  • Page 9 Fixed elbow 1/ 4 in. MPT x 3/8 in. tube - 8 QFEL1438 polypropylene Hex head stainless bushing 1/ 4 MPT x 9 HHSB1418 1/8 FPT Air gauge - ⅛ in. NPT - 0-100 PSI 10 AG100 markings - dry model RGA-R14-PNZ Model: FG-10N-3-TM V20250310 • Page 9 of 12...
  • Page 10 - 1/ 4 in. MPT x 3/8 in. barb Hex head poly bushing ¾ MPT 6 HHPB3414 x ¼ FPT Ball valve - PVC - 3/ 4 NPT to 7 BVPVC34MF 3/ 4 FNPT Buna seal SCTNA-PNZ Model: FG-10N-3-TM V20250310 • Page 10 of 12...
  • Page 11 13 CB-5 includes clear boot 14 SSA14 Stainless adapter 1/ 4 MPT x 1/ 4 FPT Air fitting - 1/ 4 in. MPT quick 15 AP14 disconnect hose coupling plug - nickel-plated brass Model: FG-10N-3-TM V20250310 • Page 11 of 12...

  • Page 12: Nozzle Assembly

    Bolt - 1/ 4 -20 x 5/8 in. - stainless 10 B142058-VS steel - truss head Phillips - Vibra-Seal Telescoping mast for 11 MST-TNK rotomolded tanks - bracket and hardware not included Model: FG-10N-3-TM V20250310 • Page 12 of 12...
