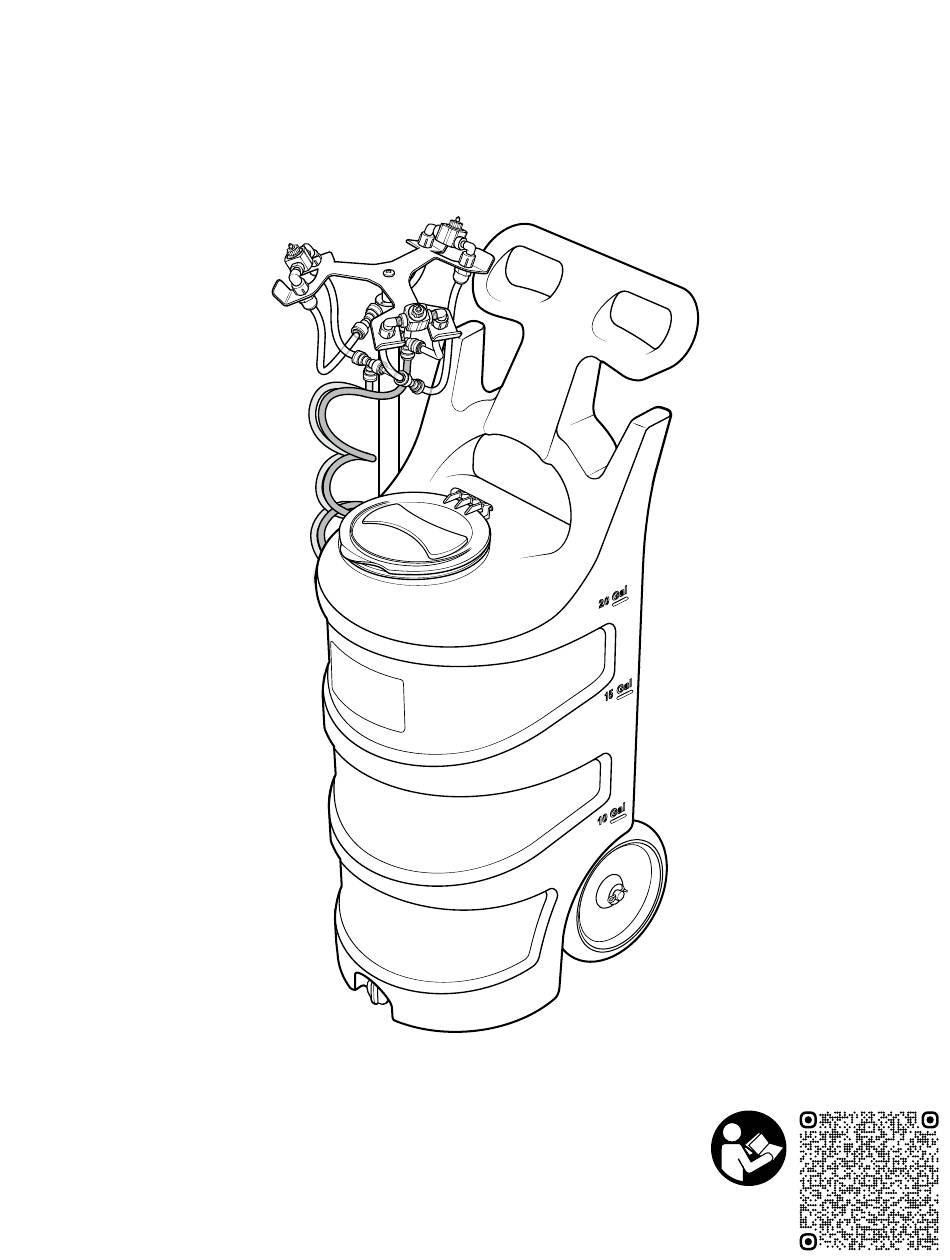

- Page 1 20 Gallon Fog Unit Service Manual FG-20N-3 READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions) service manual...
- Page 2 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: FG-20N-3 V20250128 • Page 2 of 11...
-
Page 3: Protect The Environment
• Crescent wrench (2x) • #2 Phillips head screwdriver • ⁷/16 in. (11 mm) open-ended wrench • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: FG-20N-3 V20250128 • Page 3 of 11... - Page 4 50 psi (3.4 bar). If the air gauge reads more or less than 50 psi (3.4 bar), adjust pressure by turning the knob on the top of the air regulator. Model: FG-20N-3 V20250128 • Page 4 of 11...
-
Page 5: Tank Assembly
* Additional colors available, see datasheet for options. Item number Description 5 TNK-20N Tank - 20 gallon natural - portable Drain plug assembly for portable 6 DPA units - includes gasket Model: FG-20N-3 V20250128 • Page 5 of 11... - Page 6 Wheel - 10 in. - non-marking Flat washer for 5/8 in. od pipe or axle - 12 FW58 stainless steel - 0.64 in. id x 1.2 in. od x 0.05 in. thk WHLA-AXL15 Model: FG-20N-3 V20250128 • Page 6 of 11...
-
Page 7: Back Plate Assembly
⅜ in. id blue hose - hybrid TPE - 9 H38BL-F available per ft. Plug-in elbow 3/8 in. tube x 3/8 in. 10 QFSEL38 polypropylene 3/8 in. od natural tube - 11 TB38N-PE polyethylene - available per ft. Model: FG-20N-3 V20250128 • Page 7 of 11... - Page 8 9 WS-20CFM 20 CFM - 1/ 4 in. FPT ports Air fitting - 1/ 4 in. MPT quick disconnect 10 AP14 hose coupling plug - nickel-plated brass WSA-20CFM* *Optional assembly sold separately Model: FG-20N-3 V20250128 • Page 8 of 11...
- Page 9 Air gauge - ⅛ in. NPT - 100 PSI 10 AG100 dry model Air fitting - 1/ 4 in. MPT quick disconnect 11 AP14 hose coupling plug - nickel-plated brass Not included with assembly RGA-R14-PNZ Model: FG-20N-3 V20250128 • Page 9 of 11...
- Page 10 - 1/ 4 in. MPT x 3/8 in. barb Hex head poly bushing ¾ MPT 6 HHPB3414 x ¼ FPT Ball valve - PVC - 3/ 4 NPT to 7 BVPVC34MF 3/ 4 FNPT Buna seal SCTNA-PNZ Model: FG-20N-3 V20250128 • Page 10 of 11...
-
Page 11: Nozzle Assembly
Bolt - 1/ 4 -20 x 5/8 in. - stainless 10 B142058-VS steel - truss head Phillips - Vibra-Seal Telescoping mast for 11 MST-TNK rotomolded tanks - bracket and hardware not included Model: FG-20N-3 V20250128 • Page 11 of 11...
