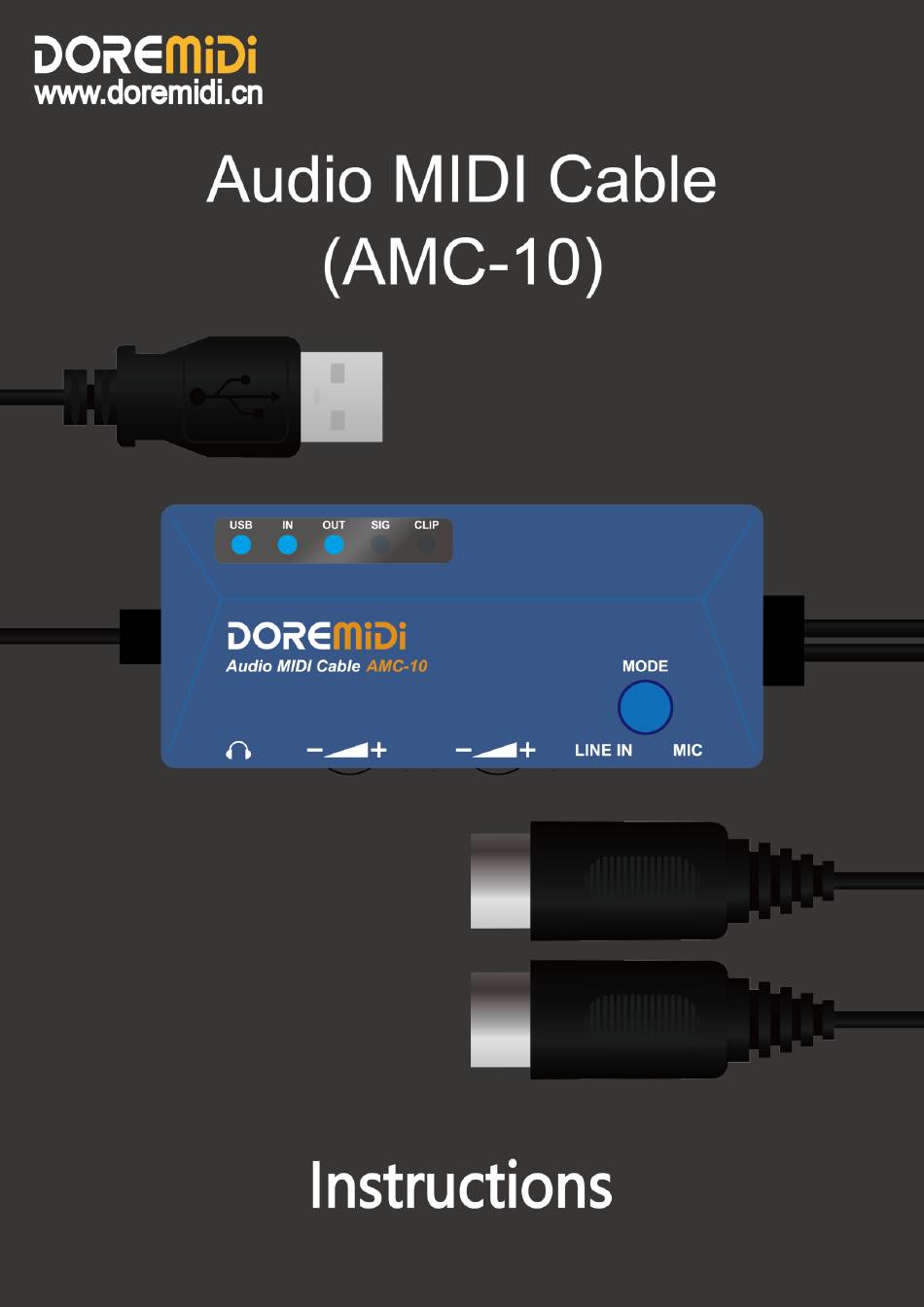

- Page 2 Introduction The Audio MIDI Cable (AMC-10) is a USB converter that has both sound card and MIDI functions. The AMC-10 has standard MIDI DIN five-pin input and output plugs, as well as a full-speed standard USB-MIDI interface, 16 channels of standard MIDI, and can communicate all standard MIDI commands.
- Page 3 Steps for usage 3.1. Use the MIDI to USB function: Connect to a computer: Connect the USB plug to the computer. The USB indicator lights up after the connection is successful. Connect to a MIDI DIN five-pin device: Connect the IN plug to the OUT port of the MIDI device, and the OUT plug to the IN port of the device.
- Page 4 3.3. Use MIDI to control the effects function The MIC and LINE IN of AMC-10 can be set with audio effects, including reverb, 3D, EQ, chorus and other effects. Users can control the various effects of AMC-10 through the AMC Tool software.
- Page 5 Select the effector of LINE IN or MIC IN. Set effector parameters: Users can adjust different effector parameters as needed. Each modified parameter will be updated to the product in real time. Click "Set" and the product will save the current effector parameters and use them the next time you start the product.
- Page 6 Upgrade: Firmware upgrade, click “Upgrade” and follow the instructions to upgrade. Factory Reset: Select this option to restore the connected product to factory settings. User Manual: Click to open the manual. About: Click to view software information.
- Page 7 MIDI IN plug of the AMC-10. The effect ❶ parameters of the AMC-10 are controlled by the CC controllers of MIDI channel = 14 (i.e. the 15th channel) and MIDI channel = 15 (i.e. the 16th channel). The CC value corresponds to the effect parameter in proportion, and the specific parameter comparison table is as follows.
- Page 8 Please use this function after you are familiar with MIDI control. ❷AMC-10 is divided into two groups of independent effects, LINE IN and MIC IN. The MIDI CC value can be used to adjust each effect parameter in real time.
- Page 9 6. Questions & Answers 1) Question: USB cannot connect to computer. Answer: AMC-10 is a MIDI device that complies with USB standards. It can be plug-and-play on general computers without installing drivers. If your computer lacks MIDI drivers, please try to install MIDI drivers.
