Summary of Contents for DOREMIDI HUB-8

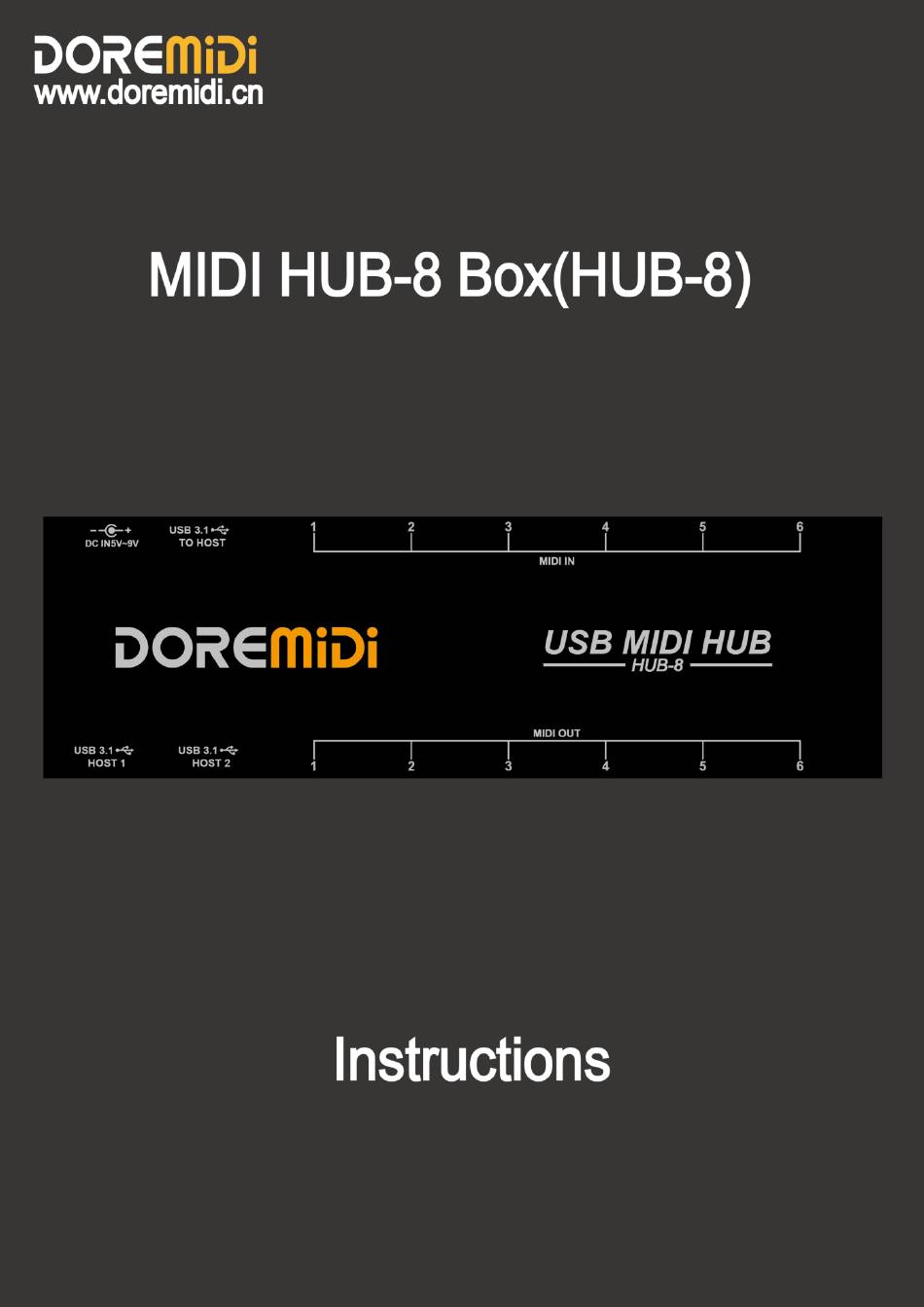

- Page 2 1. Introduction The MIDI HUB-8 box (HUB-8) is a high-performance USB 3.1 MIDI hub designed by DOREMiDi. The USB of HUB-8 is a USB3.1 super high-speed interface with a communication speed of 10Gbps (1.25GB/s). HUB-8 has 2 USB 3.1 HOST ports, which can be connected to USB MIDI instruments and other USB devices.
- Page 3 HOST" interface, and the power indicator will also light up. 2. External power supply: If the USB interface power supply is insufficient, you need to supply power to the HUB-8 through an external power supply. Use DC5.5*2.1 plug power supply to supply power to HUB-8, the power supply voltage is 5V~9VDC.
- Page 4 4. Connection After HUB-8 is connecting to the computer, there will be MIDI Group1 and MIDI Group2. MIDI Group1 corresponds to MIDI IN/OUT1~3 of HUB-8, and MIDI Group2 corresponds to MIDI IN/OUT4~6 of HUB-8. The mapping between the MIDI port name and HUB-8's MIDI interface is as follows:...
- Page 5 MIDI Compatibility Compatible with all musical instruments with MIDI standard interface If the USB TO HOST power supply is insufficient, you can use DC 5V~9V to Power In Interface power the HUB-8 Stand-by Current 80~100mA Working Power Depends on the external USB and MIDI devices...
- Page 6 Win10 MIDI driver solution: https://windowsreport.com/install-midi-drivers-pc/ 2. Question: Can the MIDI OUT of HUB-8 supply power to MIDI devices? Answer: 5V power supply can be provided, but the power supply is not high. If the external MIDI device requires a higher voltage, it is recommended to supply additional power.
