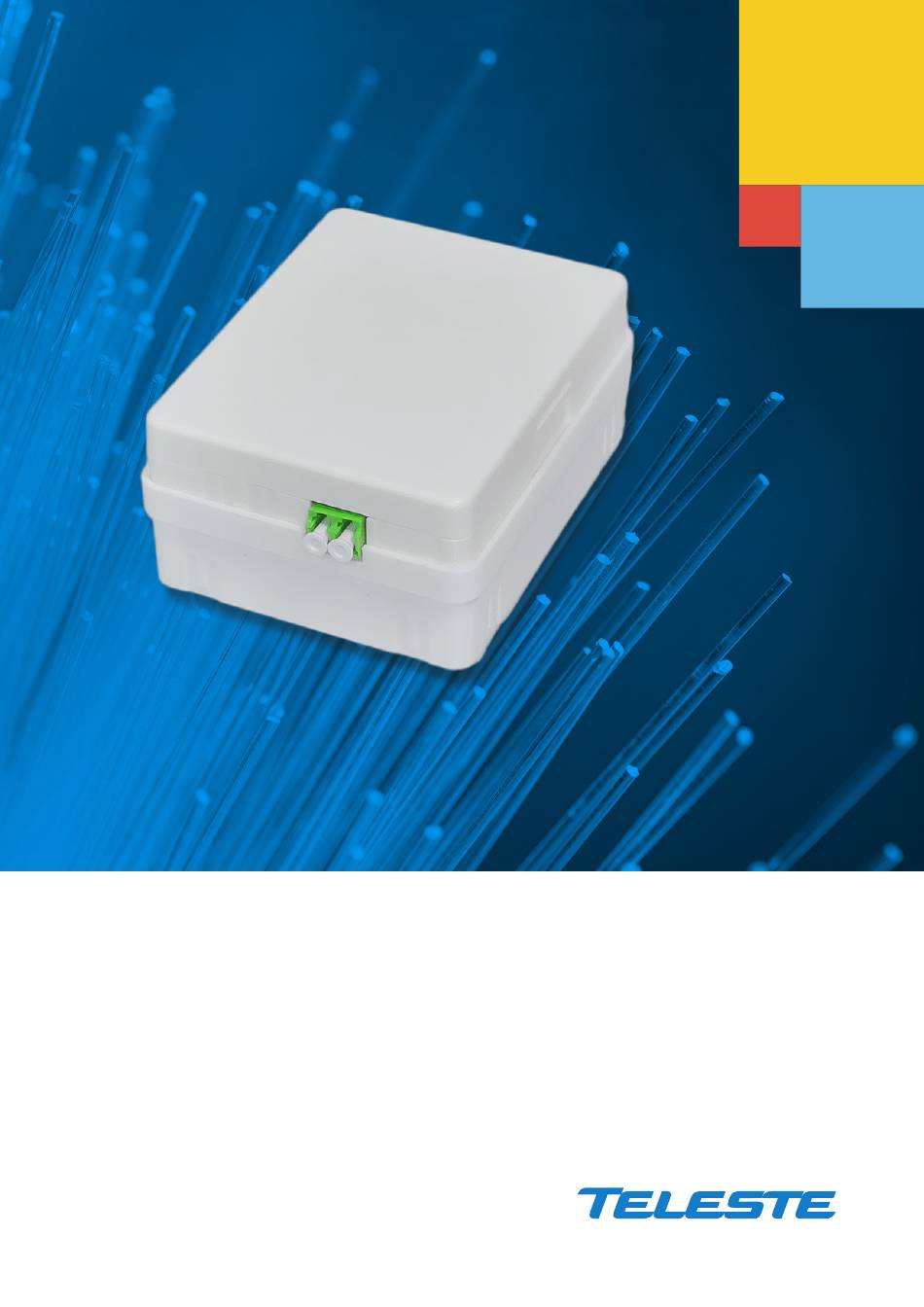

- Page 1 FTTx SOLUTIONS TEN-FWO10B - FTTH WALL OUTLET Installation Guide Rev. 1.00/09.2024...
-
Page 2: Table Of Contents
FTTx Solutions Contents Getting Started............................1 Introduction ............................1 Package Contents ..........................1 About the TEN-FWO10B FTTH Wall Outlet ..................2 Product Specification - General ......................2 Mechanical Layout ..........................2 Installation Instructions .........................3 General Preparations and Precautions ....................3 Installation Guidelines ......................... -
Page 3: Getting Started
FTTx Solutions Getting Started Introduction Thank you for choosing this Teleste product. The TEN-FWO10B FTTH wall outlet is designed as a reliable termination point for drop cables, seam- lessly connecting them with patch cables in FTTH indoor applications. -
Page 4: About The Ten-Fwo10B Ftth Wall Outlet
TEN-FWO10B Installation Guide Rev. 1.00/09.2024 e n l i g h t e n FTTx Solutions About the TEN-FWO10B FTTH Wall Outlet This FTTH Wall Outlet is engineered for easy installation and tailored spe- cifically for indoor mounting applications. Made from durable PC+ABS material with a flame rating of UL94 V-0, it offers superior safety and reliability. -
Page 5: Installation Instructions
TEN-FWO10B Installation Guide Rev. 1.00/09.2024 e n l i g h t e n FTTx Solutions Installation Thank you for choosing this Teleste product. Please take a moment and carefully read these instructions through before installing the product. Instructions General Preparations and Precautions 1. - Page 6 TEN-FWO10B Installation Guide Rev. 1.00/09.2024 e n l i g h t e n FTTx Solutions 2. Proceed by stripping the cable. Make sure to have enough length on the fibre to make a few turns inside the outlet. Insert the cable into the outlet and secure it with a zip tie, as shown in Picture 2.
- Page 7 TEN-FWO10B Installation Guide Rev. 1.00/09.2024 e n l i g h t e n FTTx Solutions 4. Using a screwdriver, install the screw to secure the outlet to the install tray. See Pictures 4 and 5 for reference. Warning! Never look directly into the end of a fibre or a fibre connec- tor that may be carrying laser light.
- Page 8 TEN-FWO10B Installation Guide Rev. 1.00/09.2024 e n l i g h t e n FTTx Solutions 5. Route the fibre along the designated path and onto the hinge tray, as shown in Picture 6. Picture 6 6. After that, coil and position the fibre and pigtail in the splice management area.
- Page 9 TEN-FWO10B Installation Guide Rev. 1.00/09.2024 e n l i g h t e n FTTx Solutions 7. Finally, attach the lid and gently brush off any dust or dirt to ensure a clean finish. The installation is now successfully completed. See Picture 8 for reference.
-
Page 10: Mounting Guidance
TEN-FWO10B Installation Guide Rev. 1.00/09.2024 e n l i g h t e n FTTx Solutions Mounting Guidance To successfully complete a wall mount installation, follow the guidance Wall fixing plug and self-tapping steps outlined below. Ensure you have all necessary tools and materials screw on hand before beginning the process. -
Page 11: Legal Declarations
This document is protected by copyright laws. Unauthorized distribution or reproduction of this document is strictly prohibited. Teleste reserves the right to make changes to any of the products described in this document without notice and all specifications are subject to change without notice. - Page 12 Teleste reserves the right to make changes to any features and specifications of the products without prior notice. Although the information in this document has been reproduced in good faith, the contents of this document are provided “as is”. Teleste makes no warranties of any kind in relation to the accuracy, reliability or contents...
