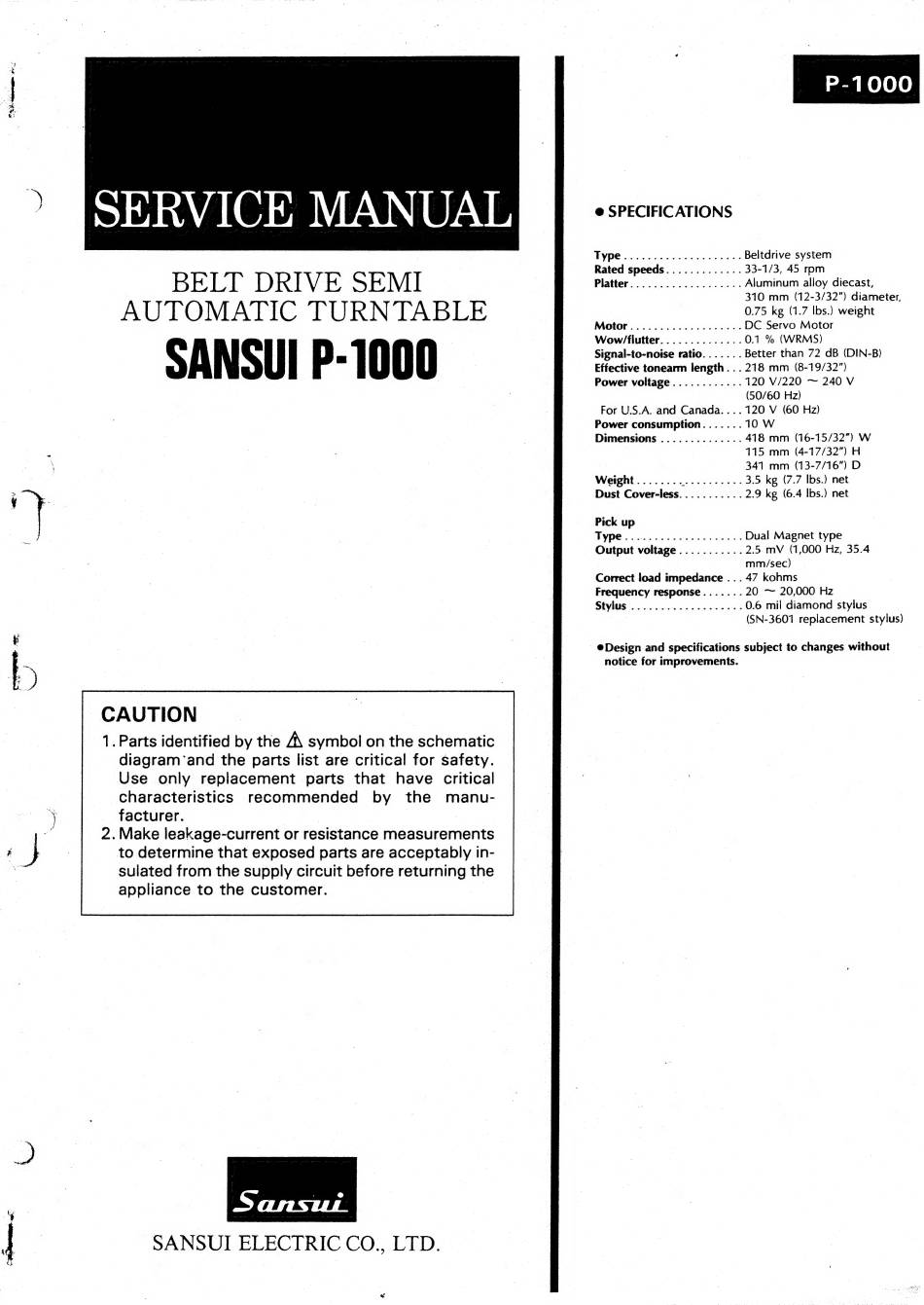

Sansui P-1000 Service Manual

> RDA TDR FNL ONE
BELT DRIVE SEMI
AUTOMATIC TURNTABLE
SANSUI P-1000
CAUTION
1. Parts identified by the 4\ symbol on the schematic
diagram 'and the parts list are critical for safety.
Use only replacement parts that have critical
characteristics recommended by the manu-
facturer. |
2. Make leakage-current or resistance measurements
é 5 7 to determine that exposed parts are acceptably in-
- sulated from the supply circuit before returning the
appliance to the customer. |
:
eee
| - SANSUI ELECTRIC Co., LTD.
@ SPECIFICATIONS
1 6 | pe ee oe Beltdrive system
Rated speeds............. 33-1/3, 45 rom
PIANG! o e iv cia tens eoe Aluminum alloy diecast,
310 mm (12-3/32") diameter,
0.75 kg (1.7 Ibs.) weight
MOOR sooo et pcs e tates DC Servo Motor
Wow/flutter.............. 0.1 % (WRMS)
Signal-to-noise ratio....... Better than 72 dB (DIN-B)
Effective tonearm length... 218 mm (8-19/32")
Power voltage............ 120 V/220 ~ 240 V
(50/60 Hz)
For U.S.A. and Canada....120 V (60 Hz)
Power consumption....... 10 W
Dimensions .............. 418 mm (16-15/32") W
115 mm (4-17/32") H
341 mm (13-7/16") D
Weight........ M e e eaticclh es 3.5 kg (7.7 Ibs.) net
Dust Cover-less........... 2.9 kg (6.4 Ibs.) net
Pick up
TYPO ston 2aohbatieacer ens Dual Magnet type
Output voltage........... 2.5.mV (1,000 Hz, 35.4
mm/sec)
Correct load impedance . .. 47 kohms
Frequency response....... 20 ~ 20,000 Hz
StVlGS > no weniiitedca sous 0.6 mil diamond stylus
(SN-3601 replacement stylus)
@ Design and specifications subject to changes without
notice for improvements.
