Sansui P-L75 Service Manual

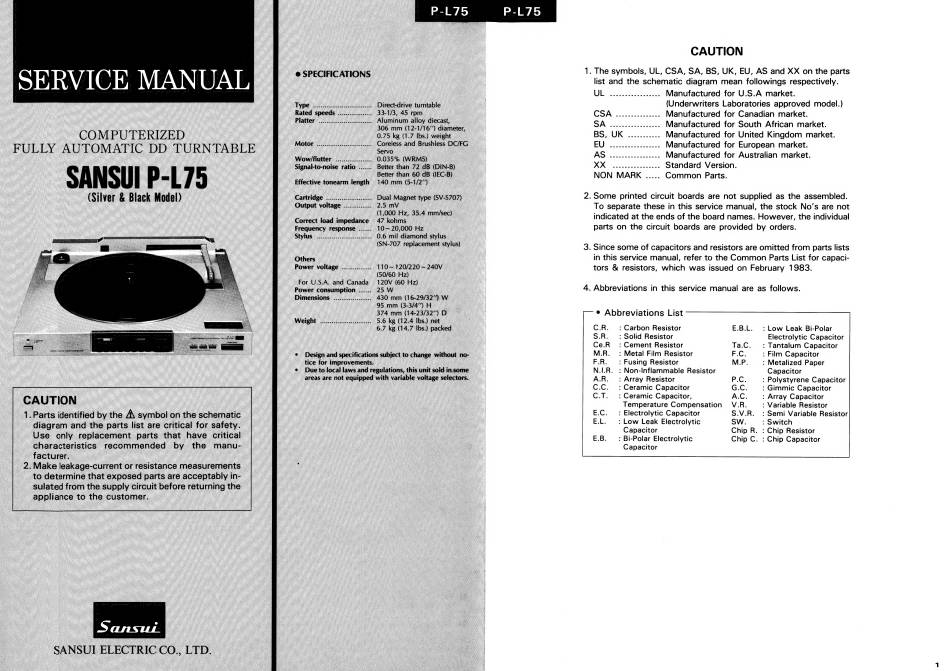

SERVICE MANUAL
ad ko
CAUTION
1. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX on the parts
list and the schematic diagram mean followings respectively.
eS capentsees haces Manufactured for U.S.A market.
(Underwriters Laboratories approved model.)
CSA xctcncseriorax Manufactured for Canadian market.
SAY astscccateent os Manufactured for South African market.
BS). WK: sasivenunes Manufactured for United Kingdom market.
EW) secs bcanttacsers Manufactured for European market.
PAS. 2 tincesctiae teins Manufactured for Australian market.
DOK sca eilac ated any Standard Version.
NON MARK ..... Common Parts.
2. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock No's are not
indicated at the ends of the board names. However, the individual
parts on the circuit boards are provided by orders.
3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capaci-
tors & resistors, which was issued on February 1983.
4. Abbreviations in this service manual are as follows.
e Abbreviations List
: Carbon Resistor .B.L. : Low Leak Bi-Polar
: Solid Resistor Electrolytic Capacitor
: Cement Resistor : Tantalum Capacitor
: Metal Film Resistor : Film Capacitor
: Fusing Resistor : Metalized Paper
: Non-Inflammable Resistor Capacitor
: Array Resistor : Polystyrene Capacitor
: Ceramic Capacitor : Gimmic Capacitor
: Ceramic Capacitor, | : Array Capacitor
Temperature Compensation : Variable Resistor
: Electrolytic Capacitor : Semi Variable Resistor
: Low Leak Electrolytic : Switch
Capacitor : Chip Resistor
: Bi-Polar Electrolytic : Chip Capacitor
Capacitor
