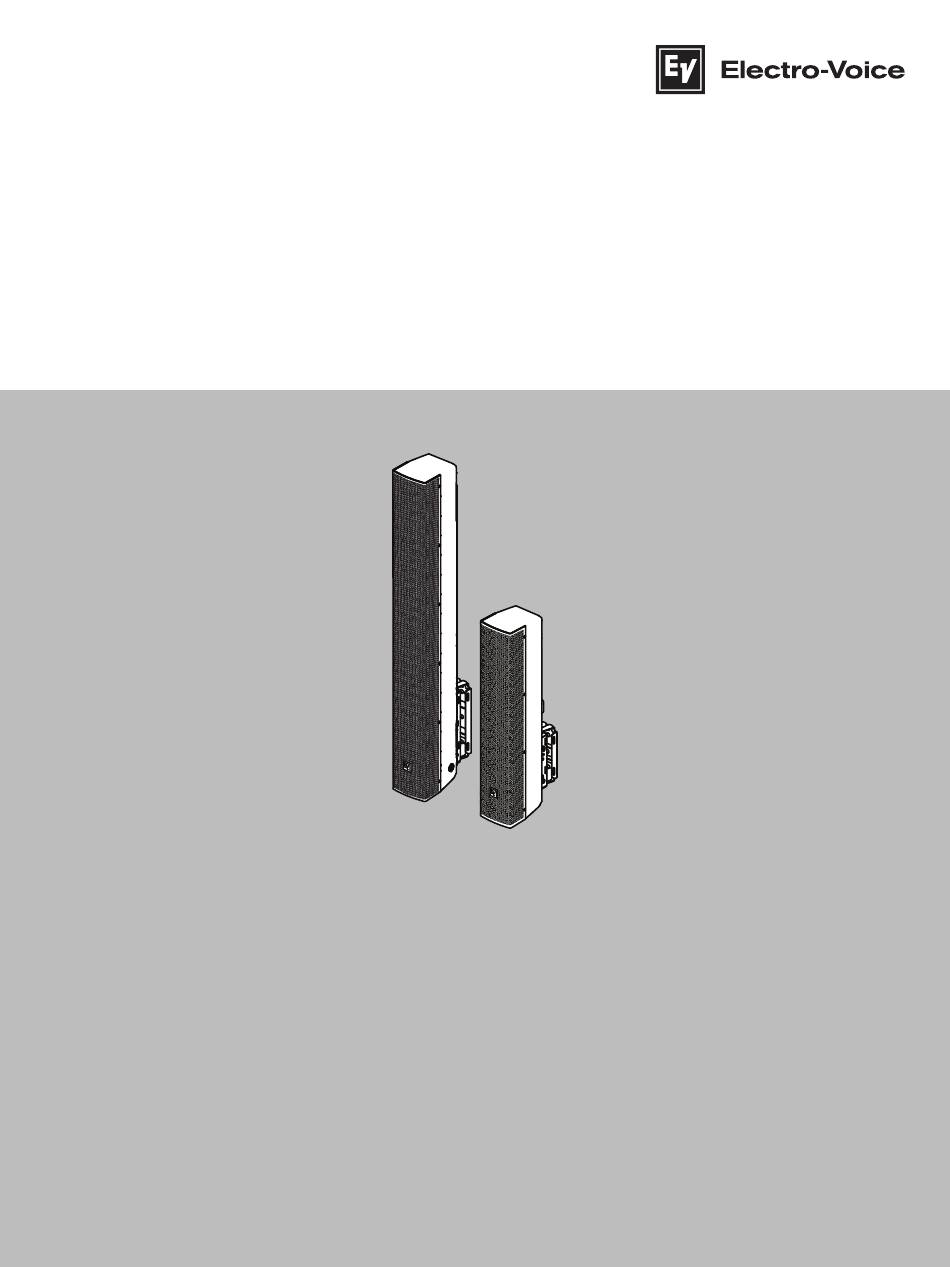

- Page 1 Line Radiator Column Speaker LRC‑1060‑B, LRC‑1060‑W, LRC‑1100‑B, LRC‑1100‑W Installation manual...
-
Page 3: Table Of Contents
Line Radiator Column Speaker Table of contents | en Table of contents Safety Important safety instructions Suspension Precautions Notices Personal Protective Equipment (PPE) Safety standards Introduction Applicable products Parts included System features 2.3.1 Integration and compatibility Installation Selecting the transformer tap Using the multifunctional mounting bracket Suspending the loudspeaker Vertical coverage... -
Page 4: Safety
It is the responsibility of the person installing the assembly to make sure the wall, ceiling, structure, and any attachments are capable of supporting all objects suspended overhead. Never modify Electro-Voice loudspeakers or rigging components or use a partial assembly of rigging components. -
Page 5: Precautions
Do not install these loudspeaker systems in high chlorine environments, such as swimming pools. Precautions – These Electro-Voice loudspeakers were designed for use in an environment with ambient temperatures between -20°C (-4°F) and +50°C (122°F). Bosch Security Systems, LLC 2025-01 | 02 | F.01U.428.747... -
Page 6: Notices
Line Radiator Column Speaker – Electro-Voice loudspeakers are easily capable of generating very high sound pressure levels. Caution should be taken to avoid prolonged exposure to sound pressure levels exceeding 90 dB. To prevent hearing damage do not listen at high volume levels for long periods. -
Page 7: Introduction
Focus3, PREVIEW Loudspeaker Software and by SONICUE System Software, as well as AFMG's EASE and EASE Focus3 software. Applicable products This document is applicable to these products: – LRC-1060-B Column Speaker 0.6m blk – LRC-1060-W Column Speaker 0.6m wht – LRC-1100-B Column Speaker 1m blk –... -
Page 8: System Features
PREVIEW Loudspeaker Software, and control LRC/Dynacord combinations in SONICUE System Software. Electro-Voice also provides files to model LRC loudspeakers in EASE, EASE Focus, and BIM Software, as well as CLF files, allowing LRC to be included in models from most leading software platforms in the market today. -
Page 9: Installation
Line Radiator Column Speaker Installation | en Installation Notice! The weather cover must be used in all EN54-24 compliant installations. This speaker cannot be painted when used in EN54-24 compliant installations. Selecting the transformer tap LRC-1060 and LRC-1100 include a pre-installed internal transformer for connection to 70- or 100-volt lines. -
Page 10: Using The Multifunctional Mounting Bracket
en | Installation Line Radiator Column Speaker Tap setting Impedance 70 V / 4 W 1333 Ω 100 V / 8 W LRC-1100 transformer specifications Tap setting Impedance 8-Ohm direct coupled 8 Ω 70 V / 120 W 42 Ω 70 V / 60 W 83 Ω 100 V / 120 W 70 V / 30 W 167 Ω 100 V / 60 W 70 V / 15 W 333 Ω 100 V / 30 W 70 V / 8 W 667 Ω 100 V / 15 W Using the multifunctional mounting bracket LRC columns include a versatile, multi-mode mounting bracket that comes in three pieces: Column bracket attached to the bottom part of the loudspeaker Tilt bracket to mount the loudspeaker on the wall... - Page 11 Line Radiator Column Speaker Installation | en Caution! It is the installer's responsibility to determine and use the proper mounting hardware for the wall construction type. Disregarding this caution could result in damage to the product and personal injuries may occur.
- Page 12 en | Installation Line Radiator Column Speaker Down tilting the loudspeaker The LRC column bracket has holes that match predefined down-tilt angles: 0, 2.5, 5, 7.5, 10, 15, 20 and 25 degrees. All down-tilt angles are supported by the lower (default) bracket position. Moving the mounting bracket to the upper position restricts maximum down-tilt to -7,5 degrees.
- Page 13 Line Radiator Column Speaker Installation | en Panning the loudspeaker It is possible to pan the loudspeaker up to 80° left or right by using the pan bracket. To pan the loudspeaker left and right: Mount the pan bracket on the wall. Using the supplied screws and the Allen key included, screw the wall bracket and the pan bracket together on the top and on the bottom.
- Page 14 en | Installation Line Radiator Column Speaker Moving the mounting bracket location It is possible to move the mounting bracket location to the upper part of the loudspeaker. Note that the upper bracket position will limit maximum down-tilt to -7.5 degrees. To move the bracket location: Remove the safety point eyebolt and M6 screw covers.
-
Page 15: Suspending The Loudspeaker
Line Radiator Column Speaker Installation | en Suspending the loudspeaker Mounting the loudspeaker to a pole It is possible to mount the loudspeaker to a pole using the two-piece or three-piece mounting bracket. To mount the loudspeaker to a pole: –... - Page 16 Flying the loudspeaker It is possible to fly the loudspeaker using M8 eyebolts. Notice! Electro-Voice only provides one M8 eyebolt. Any additional hardware used for suspending the loudspeaker should be properly rated for the intended load and environment. To fly the loudspeaker: Unscrew the column bracket.
-
Page 17: Vertical Coverage
Line Radiator Column Speaker Installation | en Vertical coverage +15º +5º 40º 20º +10º -25º -15º 20º -10º LRC-1060 vertical coverage Beam center perpendicular to front speaker grille LRC-1100 vertical coverage (narrow) Beam center offset -5° relative to horizontal LRC-1100 vertical coverage (wide) Beam center offset -5°... -
Page 18: Removing The Logo
en | Installation Line Radiator Column Speaker To set the vertical coverage on LRC-1060: Using the torx end of the dual-ended Allen key included, turn the wide/narrow tap at the bottom side of the loudspeaker. TR20 Removing the logo The loudspeakers have a low-contrast version of the EV logo that is removable by the installer, without leaving any cosmetic artifacts on the grill. - Page 19 Line Radiator Column Speaker Installation | en Warning! Do not use abrasives such as sandpaper or steel wool. Never use gasoline, kerosene, acetone, MEK, paint thinner, harsh detergents, or other chemicals, as these agents may cause permanent damage to the enclosure. Apply latex or enamel paint.
-
Page 20: Wiring
en | Wiring Line Radiator Column Speaker Wiring Warning! Risk of electrical shock Before connecting the loudspeaker, verify that the connection to the amplifier is disconnected, or the amplifier is disconnected from mains power. Failure to do so may result in voltage present at the loudspeaker connection sufficient to cause an electrical shock. - Page 21 Line Radiator Column Speaker Wiring | en Push the wire through the gland nuts. Wire the Euroblock connector. Refer to Electrical connection, page 24 for wiring details. Mount the loudspeaker as shown in Installation, page 9. Plug the Euroblock connector into the speaker. Line the weather cover up with the back of the input cup, pulling excess wire out through the gland nuts.
-
Page 22: Recommended Wire Gauge
en | Wiring Line Radiator Column Speaker To wire the speaker with one cable: Remove the screws of the weather cover. Remove the Euroblock connector. Loosen one of the gland nuts of the weather cover. Push the wire through the gland nut. Wire and install the Euroblock connector. -
Page 23: Rigging Strength Ratings And Safety Factors
Rigging strength ratings and safety factors | en Rigging strength ratings and safety factors Warning! Never exceed the limitations or maximum recommended working load for Electro-Voice loudspeakers. Disregarding this warning could result in serious injury or death. Eyebolts can be used to suspend individual loudspeakers when attached through the integral M8 attachment points. -
Page 24: Electrical Connection
en | Electrical connection Line Radiator Column Speaker Electrical connection Low impedance connection All LRC full-range systems are passive, which means a single input provides full-range audio to the entire loudspeaker. In addition, the internal passive network tailors the frequency response and level of each individual driver so that the overall frequency response of the loudspeaker is as even as possible over its intended range of operation. - Page 25 Line Radiator Column Speaker Electrical connection | en can also implement model-specific processing that optimizes loudspeaker performance. LRC loudspeaker settings can also be implemented in any IRIS-Net compatible digital signal processor. Bosch Security Systems, LLC 2025-01 | 02 | F.01U.428.747 Installation manual...
-
Page 26: Technical Data
en | Technical data Line Radiator Column Speaker Technical data LRC-1060 Frequency range (-10 dB) 70 Hz - 15000 Hz Maximum SPL 122 dB Axial sensitivity 90 dB SPL 1W/1m Coverage angle HxV 130° x 20° Power handling (continuous) 100 W Power handling (program) 200 W Peak input voltage (Lo-Z) 80 V Nominal impedance (Lo-Z) 8 Ω... - Page 27 Line Radiator Column Speaker Technical data | en Included hardware Tilt bracket Pan bracket Gland nut weather cover Dual-ended Allen/TR20 key M8x20 mm eyebolt (pre-installed) -10 dB from rated sensitivity. Measured with Music preset in half-space (wall-mounted) position 1 m on axis, half-space, 12 dB crest factor pink noise with Music preset (measured) Unprocessed Vertical coverage unprocessed.
- Page 28 en | Technical data Line Radiator Column Speaker Horizontal spatial frequency response -120 -150 -180 Frequency (Hz) Vertical spatial frequency response Frequency (Hz) 2025-01 | 02 | F.01U.428.747 Bosch Security Systems, LLC Installation manual...
-
Page 29: Technical Data For En54, Type B Installations
Line Radiator Column Speaker Technical data | en Dimensions [4.13] [5.67] 47.5 [1.87] [22.83] 47.5 [1.87] [1.18] [1.41] mm[in] [2.91] 7.1.1 Technical data for EN54, type B installations Data measured and expressed as per EN54-24 requirements. Acoustic coverage Frequency Frequency response / Horizontal Coverage Vertical Reproducibility... -
Page 30: Lrc-1100
en | Technical data Line Radiator Column Speaker Sensitivity and max SPL Sensitivity per EN54-24 77 dB standard (SPL 1 W/4 m): Max measured SPL per 94 dB EN54-24 standard: Impedance Tap setting Impedance 8-Ohm direct coupled 8 Ω 70 V / 60 W 83 Ω 70 V / 30 W 167 Ω 100 V / 60 W 70 V / 15 W 333 Ω... - Page 31 Line Radiator Column Speaker Technical data | en Transformer taps 70 V line 120 W; 60 W; 30 W; 15 W; 8 W Transformer taps 100 V line 120 W; 60 W; 30 W; 15 W Transducer (quantity) size (12) 2.5 in active drivers (3) 2.5 in and 6.5 in passive radiators Connector type 4-pin Euroblock Input + Pass through...
- Page 32 en | Technical data Line Radiator Column Speaker Frequency response Wall Mount - Narrow Wall Mount - Wide Full Space Frequency (Hz) Impedance response Narrow Wide Frequency (Hz) 2025-01 | 02 | F.01U.428.747 Bosch Security Systems, LLC Installation manual...
- Page 33 Line Radiator Column Speaker Technical data | en Horizontal spatial frequency response -120 -150 -180 Frequency (Hz) Vertical spatial frequency response Frequency (Hz) Frequency (Hz) Bosch Security Systems, LLC 2025-01 | 02 | F.01U.428.747 Installation manual...
- Page 34 en | Technical data Line Radiator Column Speaker Dimensions [5.91] [4.33] [2.95] [37.40] [2.95] [1.18] 36.3 [1.43] mm[in] 74.8 [2.94] 2025-01 | 02 | F.01U.428.747 Bosch Security Systems, LLC Installation manual...
-
Page 35: Technical Data For En54, Type B Installations
Line Radiator Column Speaker Technical data | en 7.2.1 Technical data for EN54, type B installations Data measured and expressed as per EN54-24 requirements. Acoustic coverage Frequency Frequency response / Horizontal coverage Vertical coverage Reproducibility Narrow Wide Narrow Wide Narrow Wide dB SPL Degrees... - Page 36 en | Technical data Line Radiator Column Speaker Tap setting Impedance 70 V / 30 W 167 Ω 100 V / 60 W 70 V / 15 W 333 Ω 100 V / 30 W 70 V / 8 W 667 Ω 100 V / 15 W 2025-01 | 02 | F.01U.428.747 Bosch Security Systems, LLC Installation manual...
-
Page 37: References
Line Radiator Column Speaker References | en References Rigging (printed) [1] W.E. Rossnagel, L.R. Higgins & J.A. MacDonald, Handbook of Rigging for Construction and Industrial Operations, McGraw-Hill Book Company, New York, NY, USA (2009). [2] H. Donovan, Entertainment Rigging, http://www.riggingbooksandprograms.com, Rigging Seminars, Seattle, WA, USA (2002). - Page 38 | References Line Radiator Column Speaker 2025-01 | 02 | F.01U.428.747 Bosch Security Systems, LLC Installation manual...
- Page 40 Bosch Security Systems, LLC 130 Perinton Parkway Fairport, NY 14450 www.electrovoice.com © Bosch Security Systems, LLC, 2025 EU importer: Bosch Sicherheitssysteme GmbH Robert-Bosch-Platz 1 70839 Gerlingen Germany © Bosch Sicherheitssysteme GmbH, 2025 202501101125...
