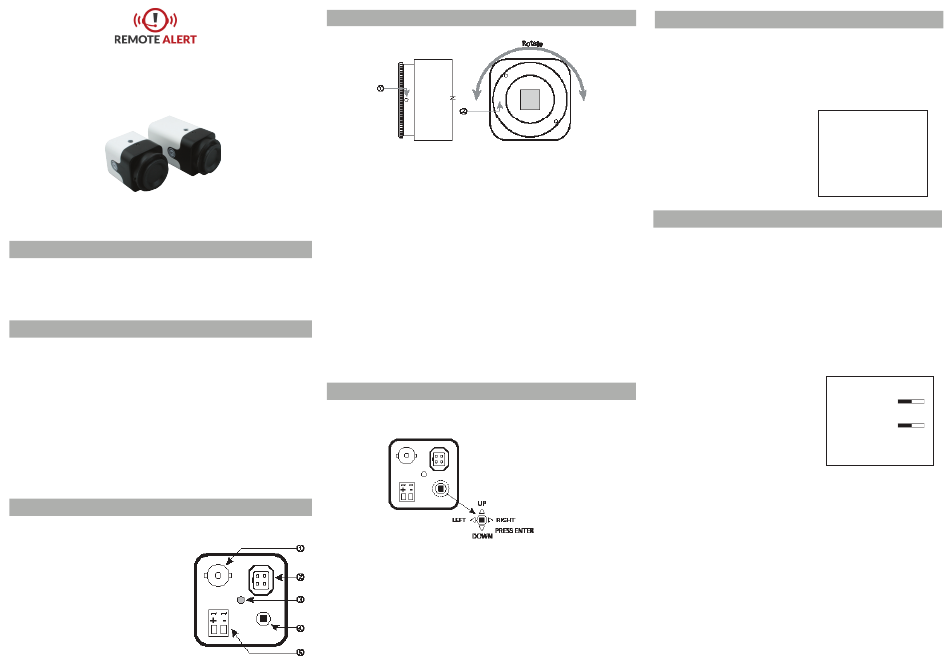

Remote Alert in11S7N2D Quick Start Manual

in11S7N2D
4-in-1
Box Camera
Quick Start Guide
Before operating this product, please read this quick-start guide to ensure proper use.
Please store these instructions a safe place for future reference.
FEATURES
• Compact Design • Wide Dynamic Range
• Manual Iris only • HLC, BLC, DEFOG
• 1080P Full HD High Sensitivity Sensor • Sens Up
• 800TVL Resolution in analog mode • On Screen Menu
• Selectable , Analog, TVI, CVI, AHD • 12VDC or 24VAC
PRECAUTIONS
1. Before installing and operating the unit, please read this manual carefully.
2. Precision components are contained in this camera, please avoid violent vibrations during
installation and maintenance. Do not connect the power until you have completed the
installation.
3. Please obey all local electrical wiring regulations when using this unit.
4. Do not use abrasive or corrosive materials for cleaning. Use only a soft cloth for cleaning.
5. To prevent damage to the lens or sensor, do not point the camera directly into the sun
or very strong light sources.
6. Do not use the camera outside it's working temperature (-10°C~ 50°C / 14°F ~122°F) or
humidity (<90%) ranges.
7. Ensure that the power supply meets the current requirements of the camera and that
the supply voltage is inside the tolerances of the camera: 24VAC ±10%
8. Ensure that the fixings used are adequate to support the load of camera.
9. In case of camera failure, do not attempt to dismantle or service the camera yourself.
Please refer to qualified service personnel for repair of the camera.
CONNECTIONS
BNC Connector. Video Output. 75Ω 1Vp-p
1.
2. No connection, connector not active
3. Power LED
4. OSD Joystick
Removable power connector. Observe
5.
polarity of 12VDC connections. 24VAC
connections are not polarity conscious.
Polarity markings are visible when the
terminal block is removed
LENS AND BACK FOCUS
A CS-mount lens should not normally require any back focus adjustment when
mounted on the camera. If back focus adjustment is required, slacken the grub screw
, using the supplied allen key and rotate the lens mounting ring
①
focus is achieved. Re-tension the grub screw to lock the mounting ring.
If a C-mount lens is used, a C-mount adaptor(not supplied) must be fitted to the lens
mounting ring before attaching the C-Mount lens, or the CCD/filter may be damaged.
Depending on the available installation space, the knurled lock screws
with the spare domed lock screws Do not overtighten the lock screws. Remember to secure
. ⑥
the power/video lead to the bracket with a cable tie as detailed in the previous section.
OSD ACCESS
Connect the Video-Out of the camera to a display monitor.
To activate the camera OSD, depress the joystick button twice on the rear panel
of the camera.
Push the joystick  to select a menu from the list.
Push the joystick   to change the selected value.
Press the joystick button to open a sub-menu or execute a command.
When the OSD menu is launched, you are presented with the adjacent opening
screen.
A menu option followed by a  indicates the presence of a sub-menu. Options
set to OFF will not show a  until set to ON
Use RETURN  to return to the previous menu.
until optimum
②
Exposure menu:
may be interchanged
④
• Lens- Manual
• BRIGHTNESS - sets the level of the overall brightness
• SHUTTER- OFF, 1/60~1/120K. (1/50~120K PAL) Set this on to reduce the
exposure time of each image. This can be used to reduce blur in images
with fast changing content.
• FLK- Use this when flicker is observed in the image under fluorescent
lighting. When FLK is ON, the shutter menu is disabled.
• SENS UP - Slows frame rate and increases low light sensitivity
• AGC- Off or Level Control -Used to adjust overall AGC level
OSD MAIN MENU
MENU
EXPOSURE

BACKLIGHT WDR
DAY/NIGHT

WHITE BALANCE

DNR Middle

MOTION OFF
SYSTEM

EXIT SAVE
EXPOSURE MENU
LENS MANUAL
BRIGHTNESS 10
SHUTTER AUTO
SENS-UP x4
AGC
10
RETURN

