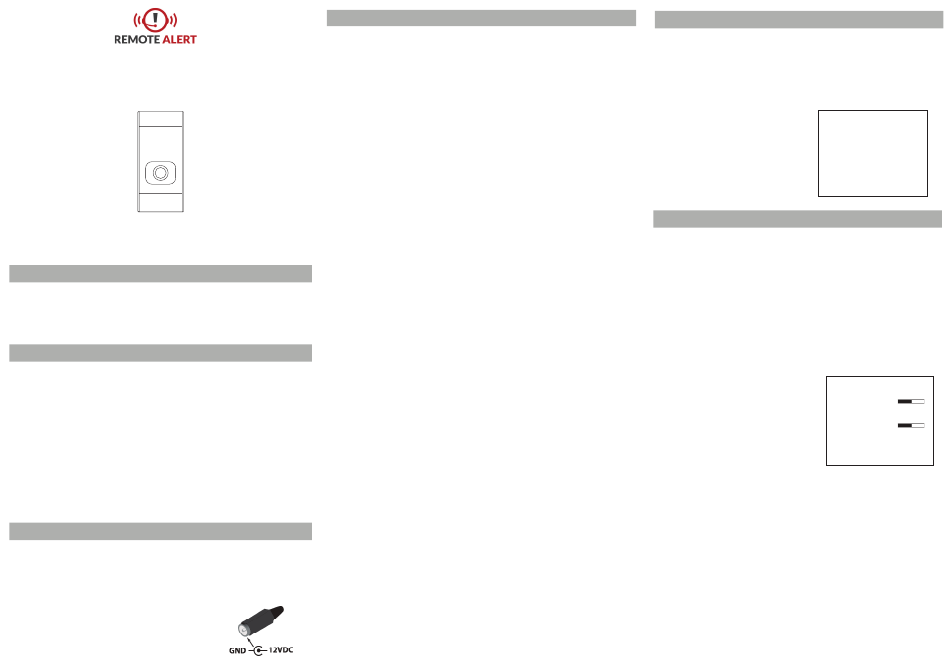

inDUCS7N1L30
4-in-1
Drive Up/Counter Camera
Quick Start Guide
Before operating this product, please read this quick-start guide to ensure proper use.
Please store these instructions a safe place for future reference.
FEATURES
• Compact Design • HLC, BLC, DEFOG
• 1080P Full HD High Sensitivity Sensor • Sens Up
• 800TVL Resolution in analog mode • On Screen Menu
• Selectable , Analog, TVI, CVI, AHD • 12VDC
• Wide Dynamic Range • Optional 24VAC power Converter
PRECAUTIONS
1. Before installing and operating the unit, please read this manual carefully.
2. Precision components are contained in this camera, please avoid violent vibrations during
installation and maintenance. Do not connect the power until you have completed the
installation.
3. Please obey all local electrical wiring regulations when using this unit.
4. Do not use abrasive or corrosive materials for cleaning. Use only a soft cloth for cleaning.
5. To prevent damage to the lens or sensor, do not point the camera directly into the sun
or very strong light sources.
6. Do not use the camera outside it's working temperature (-10°C~ 50°C / 14°F ~122°F) or
humidity (<90%) ranges.
7. Ensure that the power supply meets the current requirements of the camera and that
the supply voltage is inside the tolerances of the camera: 24VAC ±10%
8. Ensure that the fixings used are adequate to support the load of camera.
9. In case of camera failure, do not attempt to dismantle or service the camera yourself.
Please refer to qualified service personnel for repair of the camera.
CONNECTIONS
Connections for video and power are made to the flying lead from at the rear of
the camera. Two connectors are provided:
1. Video output connector, 75Ω BNC socket. Connect a male BNC connector to a
Monitor, DVR or UTC programmer to this socket.
2. Power Input connector. This is a 2.1mm DC jack. Observe polarity of 12VDC
connections. The centre conductor is +12VDC ±10%
and outer is ground. Refer to the adjacent diagram
for clarification.
OSD ACCESS
Connect the Video connector out connector of the camera to a display monitor. To
activate the camera OSD, depress the joystick button on the UTC Controller
Push the joystick to select a menu from the list.
Push the joystick  to change the selected value.
Press the joystick button to call the sub-menu or execute a command.
To return from a sub-menu to the previous menu, select "Return" and press the
joystick button.
OSD MAIN MENU
When the OSD menu is launched, you are presented with the adjacent opening
screen.
A menu option followed by a  indicates the presence of a sub-menu. Options
set to OFF will not show a  until set to ON
Use RETURN  to return to the previous menu.
EXPOSURE
BACKLIGHT
DAY/NIGHT
WHITE BALANCE
DNR
MOTION
SYSTEM
EXIT
EXPOSURE MENU
Exposure menu:
• Lens- Manual
• BRIGHTNESS - sets the level of the overall brightness
• SHUTTER- OFF, 1/60~1/120K. (1/50~120K PAL) Set this on to reduce the
exposure time of each image. This can be used to reduce blur in images
with fast changing content.
• FLK- Use this when flicker is observed in the image under fluorescent
lighting. When FLK is ON, the shutter menu is disabled.
• SENS UP - Slows frame rate and increases low light sensitivity
• AGC- Off or Level Control -Used to adjust overall AGC level
MENU

WDR


Middle

OFF

SAVE
LENS MANUAL
BRIGHTNESS 10
SHUTTER AUTO
SENS-UP x4
AGC
10
RETURN

