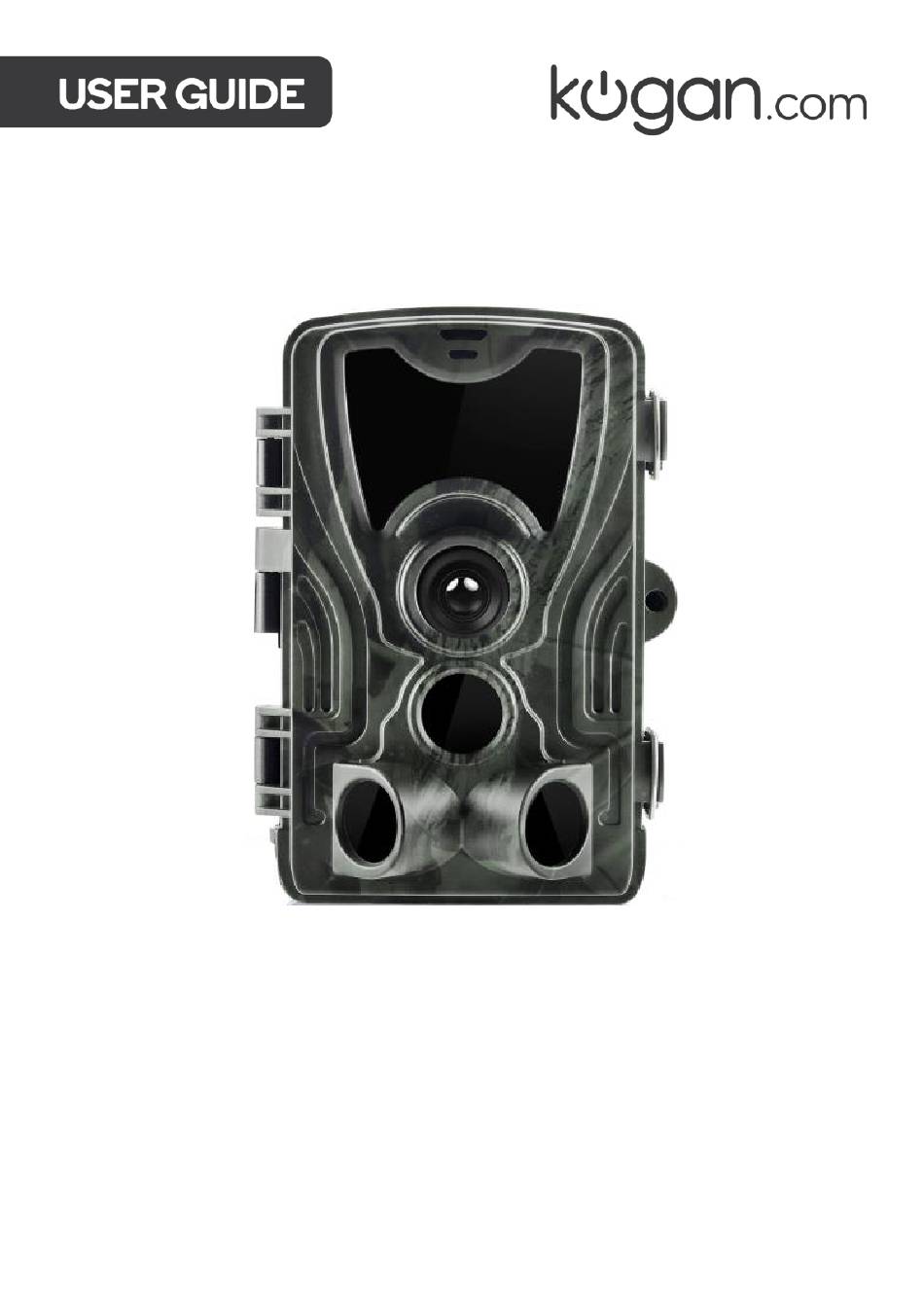

- Page 1 KOGAN 4K WI-FI TRAIL CAMERA KATRCM4KBTA...
- Page 3 COMPONENTS Camera USB Cable Mounting Strap User Guide...
- Page 4 OVERVIEW Photo Sensor Indicator Infrared Light Lens Central PIR Sensor Latch Side PR Sensor Display Screen Battery Compartment Micro SD Mode Card Slot Port Switch...
-
Page 5: Installation
INSTALLATION Batteries Remove the battery compartment cover. Install 8 AA batteries, paying close attention to the orientation of the polarity symbols (+/-). Replace the battery compartment cover. Insert a microSD Card To use the camera effectively, it is essential to install a microSD card (not provided). The microSD card should have a capacity of up to 32GB and a class 10 rating. - Page 6 WIFICAMERA APP Install the App Scan the QR codes below, or search for WiFiCameraSum on the Apple App Store, or WIFiCamera on the Google Play Store to download the app. Android Connect the Trail Camera to the App Open the app on your phone and tap Connect Bluetooth in the top left corner.
- Page 7 Select GCBT40 and then tap . The indicator will flash yellow once and then flash blue. Return to the app homepage and tap Connect WiFi . Alternatively, press the WiFi button on the trail camera to turn the Wi-Fi on.
- Page 8 Go to your phone Wi-Fi settings and select CAM_XXXXXXXXXXXX . Enter the password 12345678 . The Wi-Fi name and password can be changed in the app when connected.
-
Page 9: Operation
OPERATION Power Connect one end of the provided USB cable to the USB port on the trail camera and the other end to a 6V DC power adapter (not provided). Then, connect the adapter to an electrical outlet. Control Panel Menu Settings. - Page 10 Main Menu Main Menu Sub Menu Description Camera, video, camera & video, Picture, video, picture and Mode timelapse. video, taking pictures regularly. Resolution 4K, 2K, 1080P, 720P, VGA. Video resolution. Default video length is 5 Video Length 5/10/30/60/90 seconds. seconds. 90 seconds is the maximum video length.
- Page 11 Working 00:00:00 to 23:59:59. N/L. Timer Date / Time DD/MM/YY. N/L. Format OK/Cancel. Format memory card. Default OK/Cancel Back to default. Setting Version Camera firmware version.
-
Page 12: Specifications
SPECIFICATIONS Photo Recording Photo resolution 36MP/30MP/24MP/20MP/16MP File format .JPG Time lapse mode 5/30min, 1/2/3/6/12/24 hour. Multi-shot mode Take up to 9 photos per detection. Stamp Date, time, temperature (°C/°F) and moon phase. Capture mode Camera/Video/Camera & Video/Time-lapse. Video Recording Video resolution 4K/2K/1080P/720P/VGA File format .MP4/H.265... - Page 13 Nighttime Illumination System Infrared LEDs Low glow LEDs. Flash Range <30m. Exposure Auto/100/200/400. Optical field of view 120°. Dimensions 135 x 90 x 76mm. Recommendations Operating temperature -20°C to 70°C. Waterproof level IP 65.
- Page 14 NOTES...
