obsta NAVILITE-IR-F-048-KIT-TE Installation Notice

Hide thumbs
1
2

Advertisement

Quick Links

Download this manual
Installation notice

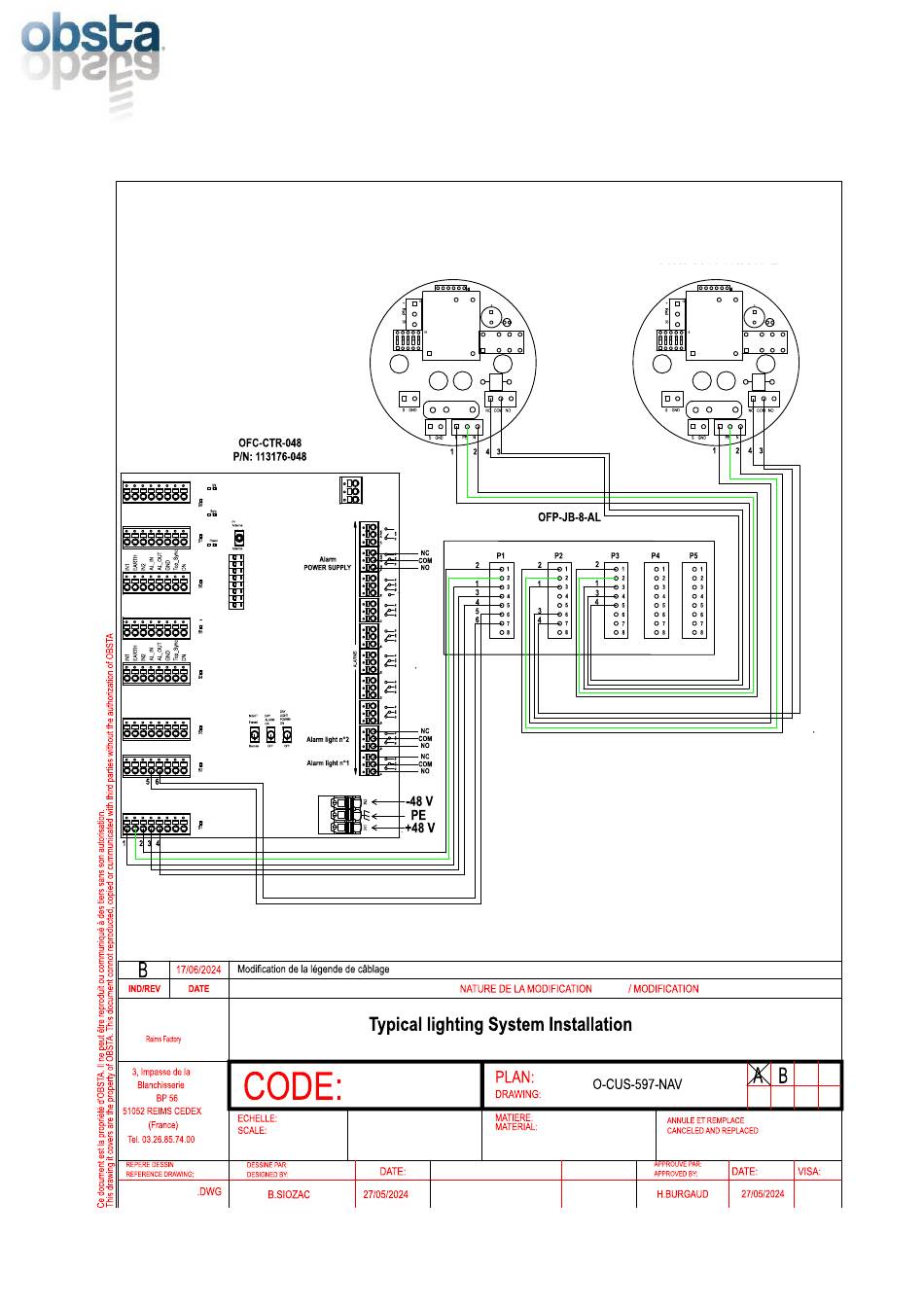

WIRING DIAGRAM
NAVILITE-IR-F-048-KIT
P/N 113965IR-TE
P/N 113948-TE
19/06/2024
NAVILITE-IR-F-048-KIT
P/N 113965IR-TE

Advertisement

loading
Need help?

Need help?

Do you have a question about the NAVILITE-IR-F-048-KIT-TE and is the answer not in the manual?

Questions and answers

Related Manuals for obsta NAVILITE-IR-F-048-KIT-TE

Summary of Contents for obsta NAVILITE-IR-F-048-KIT-TE

  • Page 1 19/06/2024 Installation notice WIRING DIAGRAM NAVILITE-IR-F-048-KIT NAVILITE-IR-F-048-KIT P/N 113965IR-TE P/N 113965IR-TE P/N 113948-TE...
  • Page 2 19/06/2024 Installation notice Content of the kit 113789- 113948-TE x 1 OXA4-1X17 113965IR-KIT-TE x 2 113789- (1 for 60cm NAV-114 x 3 of 127113) 113176-048 x 1 127113 Installation 1. On the ground, connect the 2 navilite to the junction box according to the wiring diagram. Ensure that the shield of the cable is in contact with the claws in the cable glands.
