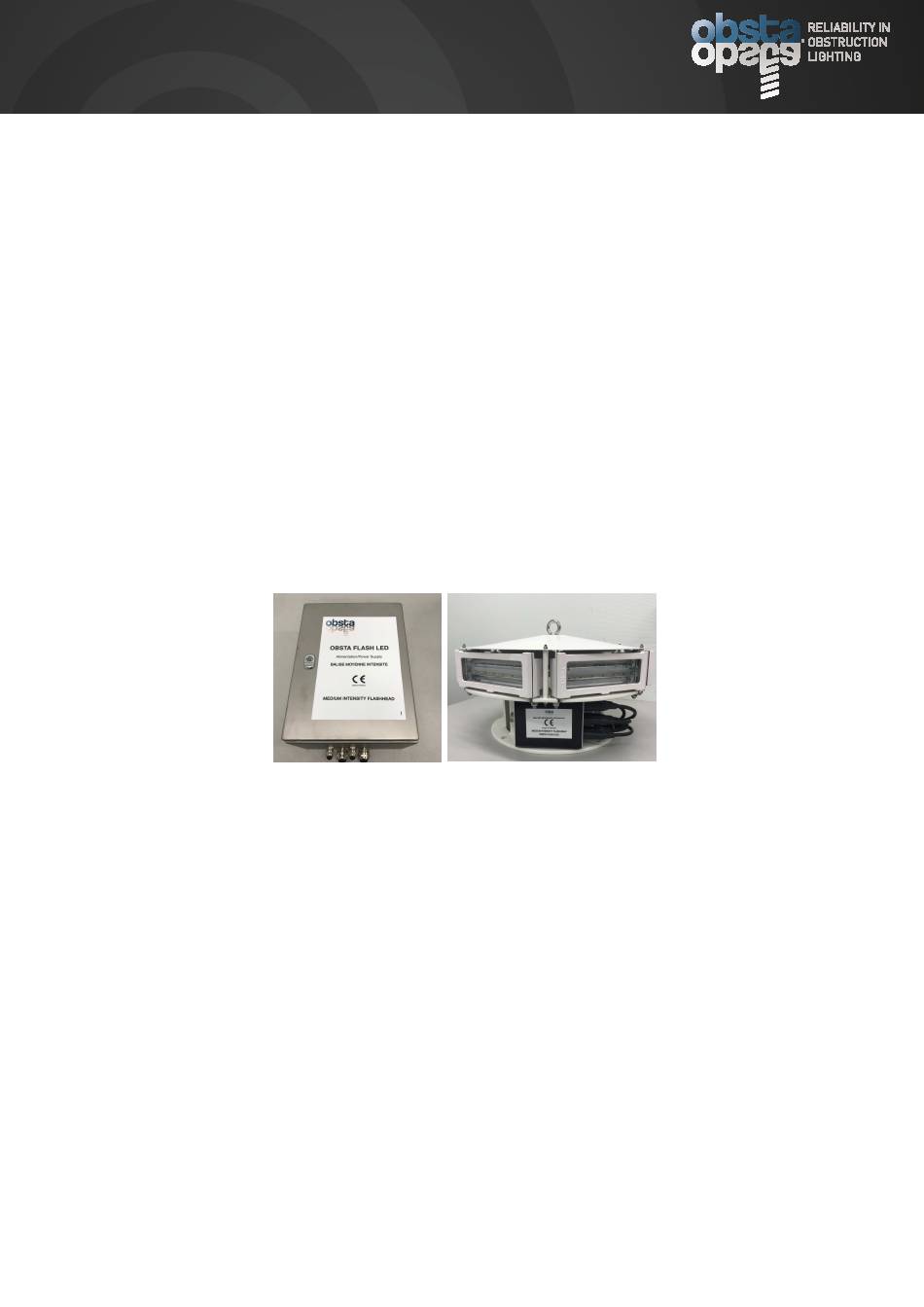

- Page 1 Edition October 2020 OBSTAFLASH Led 110-240VAC INSTALLATION AND OPERATION GUIDE OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com 1/18...
-
Page 2: List Of Models
This list is not exhaustive and some modifications can be done on the power cabinet for remote alarm and if used combination with L- 810 red fixed side lights or L-810(L) red flashing intermediate side lights. OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com... -
Page 3: Warranty
IMPLIED, BEYOND THOSE SET FORTH HEREIN, and OBSTA does not assume, nor does OBSTA authorize anyone else to assume for it, any other obligation or liability in connection with the sale or use of said products. OBSTA's liability on any claim of... -
Page 4: Section 1: General Information
This manual provides information about the installation, operation, and maintenance of the OBSTAFLASH LED Medium Intensity Obstruction Lighting Systems manufactured by OBSTA. The lighting systems described in this manual are Medium intensity type A/B and FAA type L-865/L-864 obstruction lights 1.2 General description... - Page 5 Figure 1-1. FLASHHEAD COMPONENT LOCATIONS OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com 5/18...
- Page 6 Power Supply 120-230Vac/48Vdc +48V +48V photocell supply Photocell Night state Sync input/output Power control Surge Protector / Parafoudre CITEL TB1 input Figure 1-2. POWER SUPPLY COMPONENT LOCATIONS P/N 113733 OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com 6/18...
- Page 7 Figure 1-5. POWER CABINET ENCLOSURE OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com 7/18...
-
Page 8: Mechanical Properties
870cm² Wind load 35kg at 240km/h 1.3.3.3 Power supply (P/N 113733U) Weight 13 kg Size w = 300 mm x h = 400 mm x d = 200 mm OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com 8/18... -
Page 9: Operating Environment
95% relative humidity 1.3.4 System operating status envitronment On the command card inside flash-head 10 luminous indicators as per figure 3-1 Fault indication Relay closure, contact rating 3A at 120 V/50Hz OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com 9/18... -
Page 10: Section 2 : Installation
Connection of the interconnecting cable P/N 113762 to the junction box (option) The interconnecting cable P/N113762 provided by OBSTA comes with a plug on one side to be connected on the junction Connection of the cable P/N13762 on the junction box: 2.2.2.3... -
Page 11: Final Check
Night state” and ground position 2.3 Final check Before power on, CHECK : The input voltage The wiring diagram After power on, CHECK : Flash rate Synchronisation between the flash- head OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com 11/18... -
Page 12: Power Supply
/ P ar afoudr e CITE L TB1 input P hotocell Photocell/Power sypply Power supply Photocell 2 TB1 1 TB1 O-CUS-00105-OFP H.BURGAUD 27/10/20 Figure 2-1. WIRING DIAGRAM OF OBSTAFLASH OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com 12/18... - Page 13 +48V +48V Interlock photocell supply Photocell Night state Sync input/output Power control Surge Protec tor / Parafoudre CITEL TB1 input Figure 2-2. INTERNAL WIRING DIAGRAM OF POWER SUPPLY P/N113733 OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com 13/18...
-
Page 14: Section 3 : Principles Of Operation
Section 3 : Principles of operation The flash-head is powered in 48VDC+15%/-10% from an obsta power supply or any external DC power supply providing sufficient power for the light. 3.1 Power cards The power cards regulate the current of 2 led circuits. Each power card is connected to the command card on one side and 2 negative poles of 2 led circuits. - Page 15 If no pulse is received from terminal 3, D14 is off and light flashes on its own at 15 fl per minute as per D13 Warning: In case changing master/slave dipswitch n°1 position, do not forget to change the position on the terminal connection 1 to/from 3 of the pulse wire accordingly OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com...
- Page 16 This button force the light in day mode « Test Day » or night mode « Test Night ». It should be normally on remote position Inside power cabinet, a voltage indicator is present OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com...
-
Page 17: Section 4 : Maintenance - Troubleshoot
- And in red mode, if 1 out of the 2 red led circuits is out of work, the command card will also switch off the second red led circuit and switch on the white night mode (2000 candelas) OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com... -
Page 18: Section 5 : Spare Parts
Power card 48V 113744 COMMAND-CARD-48VDC-6P-RW (dual color configuration by default) 113743B Security switch and test button 451721 Surge protection 230VAC DS215-230/G 113742 110/230Vac Power supply 100755 Photocell 48V 113746 GPS (option) OBSTA 2 rue Troyon 92316 Sèvres Cedex FRANCE Page www.obsta.com 18/18...
