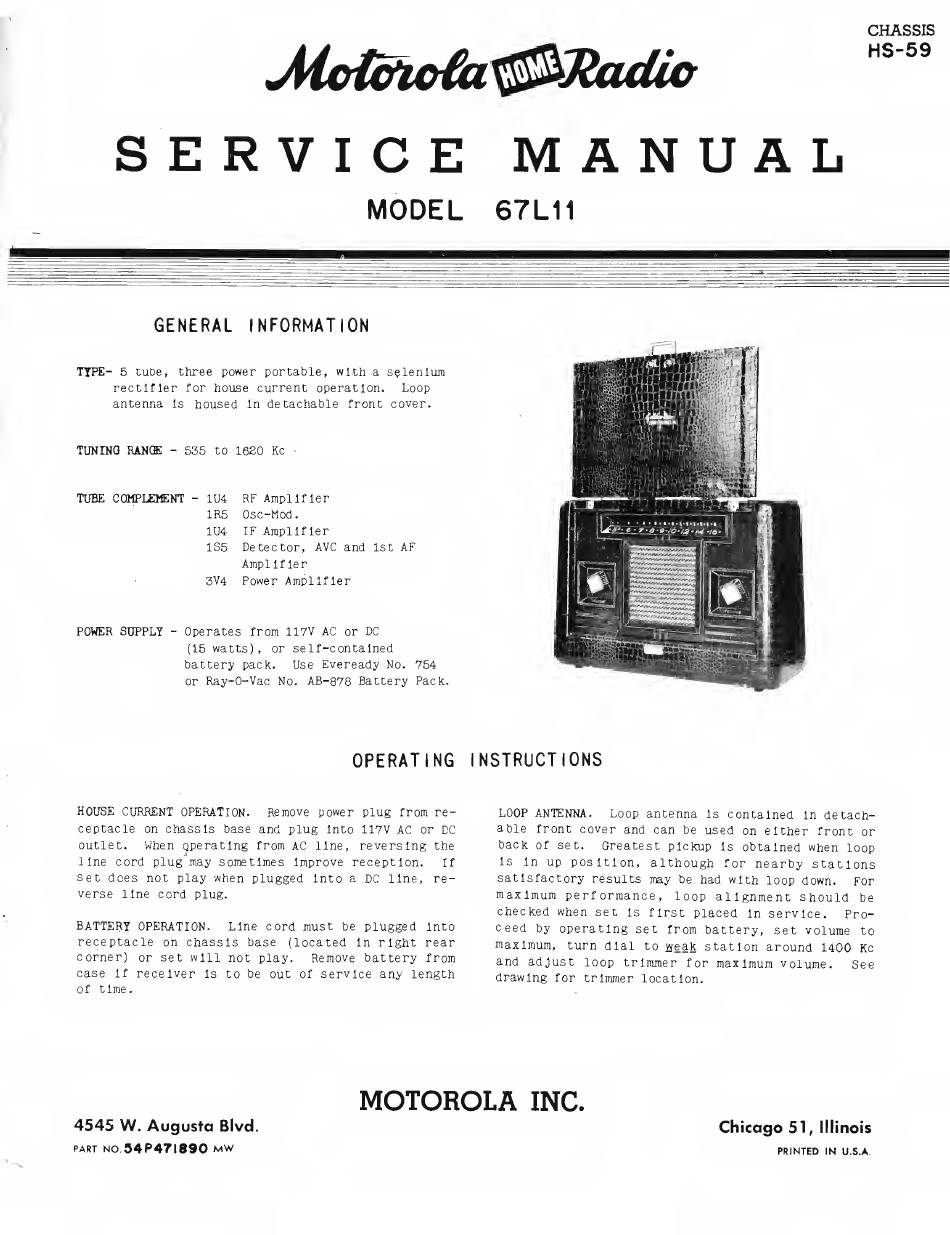

Motorola 67L11 Service Manual

CHASSIS
HS-59
SERVICE
MODEL
MANUAL
67L11
GENERAL INFORMATION
TYPE- 5 tube, three power portable, with a selenium
rectifier for house current operation. Loop
antenna Is housed In detachable front cover.
TUNING RANCE - 535 to 1620 Kc •
TUBE COMPLEMENT - 1U4
1R5
1U4
1S5
3V4
RF Amplifier
Osc-Mod.
IF AmplIf ler
Detector, AVC and 1st AF
Ampl If ler
Power Amplifier
POWER SUPPLY - Operates from 117V AC or DC
(15 watts) , or self-contained
battery pack. Use Eveready No. 754
or Ray-O-Vac No. AB-878 Battery Pack.
OPERATING
HOUSE CURRENT OPERATION. Remove power plug from re¬
ceptacle on chassis base and plug Into 117V AC or DC
outlet. When operating from AC line, reversing the
line cord plug may sometimes Improve reception. If
set does not play when plugged Into a DC line, re¬
verse line cord plug.
BATTERY OPERATION. Line cord must be plugged Into
receptacle on chassis base (located In right rear
corner} or set will not play. Remove battery from
case If receiver Is to be out of service any length
of time.
INSTRUCTIONS
LOOP ANTENNA. Loop antenna Is contained in detach¬
able front cover and can be used on either front or
back of set. Greatest pickup Is obtained when loop
Is in up position, although for nearby stations
satisfactory results may be had with loop down. For
maximum performance, loop alignment should be
checked when set is first placed in service. Pro¬
ceed by operating set from battery, set volume to
maximum, turn dial to Beak station around 1400 Kc
and adjust loop trimmer for maximum volume. See
drawing for trimmer location.
MOTOROLA INC.
4545 W. Augusta Blvd.
part
NO.94P47I690
mw
Chicago 51, Illinois
PRINTED IN U.S.A.
