TP-Link Omeda POE5430G-M2 Installation Manual

Installation Guide
54V 30W 2.5G Passive PoE Adapter
POE5430G-M2
©2025 TP-Link 7106511967 REV1.0.0
Package Contents: Passive PoE Adapter, Power Cord, Wall Mount Kits

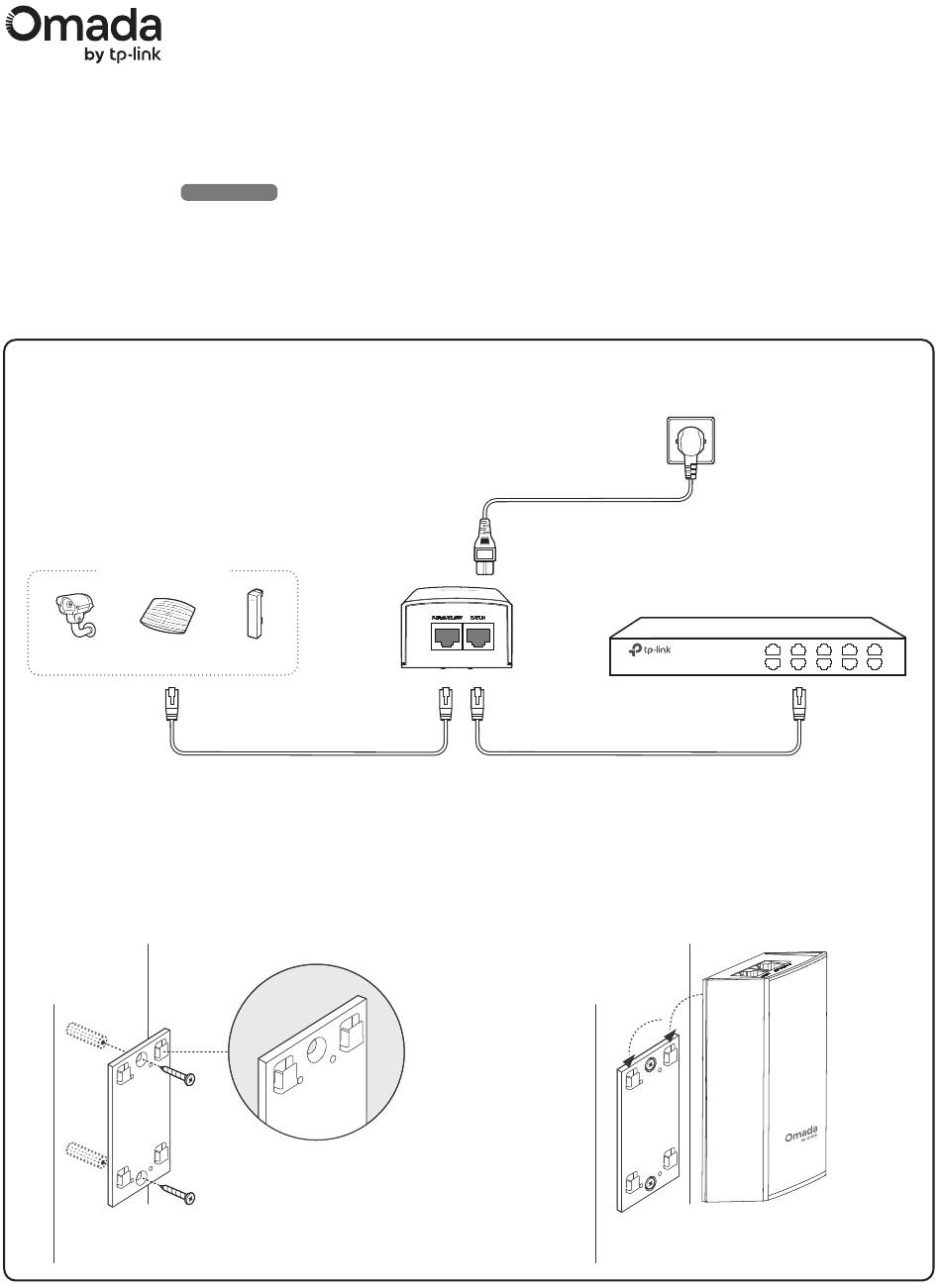

Connection
Use the passive PoE adapter to simultaneously supply power and transmit data to a passive PoE device.
Passive PoE Devices
IP Camera AP
Note: Before connecting a passive PoE device, please check the required voltage in its product manual.
Installation
Note: To ensure the passive PoE adapter is attached most securely, it is recommended to install the adapter with the Ethernet port facing upward.
1. Drill two holes on the wall and insert the plastic wall anchors into
the the holes. Secure the mounting bracket to the wall. Make sure
the shoulders at the corners of the mounting bracket are on the
outside and pointing upward.
Passive PoE Adapter
CPE
2. Attach the passive PoE adapter to the mounting bracket by
sliding the adapter in the direction of the arrows until it locks into
place.
AC Power Cord
Ethernet Device
(switch, router, etc.)
