TP-Link Omada POE2412G Installation Manual

Installation Guide
Passive PoE Adapter
POE2412G/POE4818G/POE4824G
Package Contents: passive PoE adapter, power cord, wall mount kits
Note: POE2412G is used as an example throughout this guide. Other models may differ in appearance.
Connection

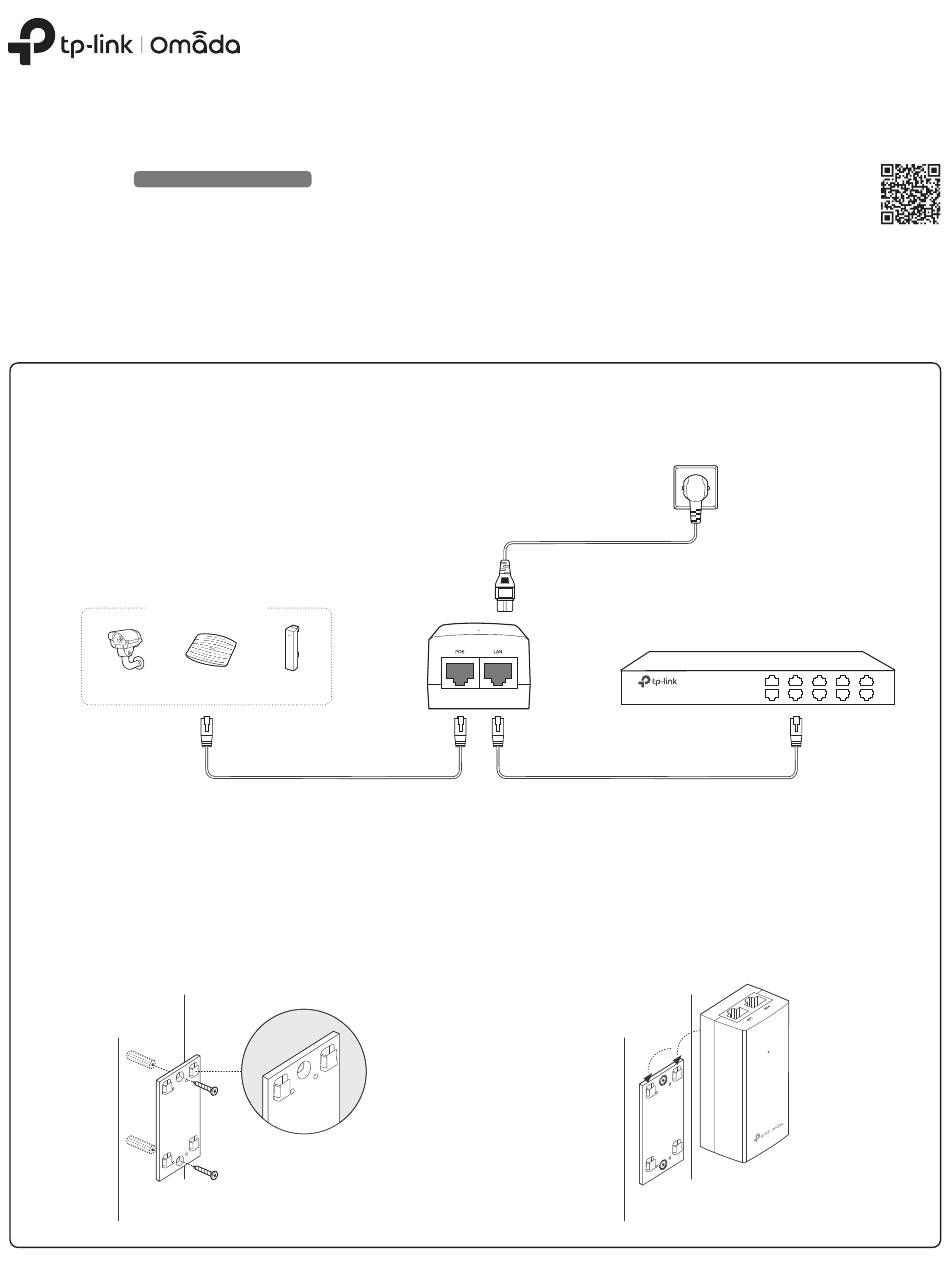

Use the passive PoE adapter to simultaneously supply power and transmit data to a passive PoE device.
Passive PoE Devices
IP Camera
Note: Before connecting a passive PoE device, please check the required voltage in its product manual.
Installation
Note: To ensure the passive PoE adapter is attached most securely, it is recommended to install the adapter with the Ethernet port facing upward.
1. Drill two holes on the wall and insert the plastic wall anchors into the
the holes. Secure the mounting bracket to the wall. Make sure the
shoulders at the corners of the mounting bracket are on the outside
and pointing upward.
Passive PoE Adapter
AP CPE
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code
2. Attach the passive PoE adapter to the mounting bracket by sliding the
adapter in the direction of the arrows until it locks into place.
7106510700 REV1.20.0
AC Power Cord
Ethernet Device
(switch, router, etc.)
