RHYTHM DESIGNER RD-8

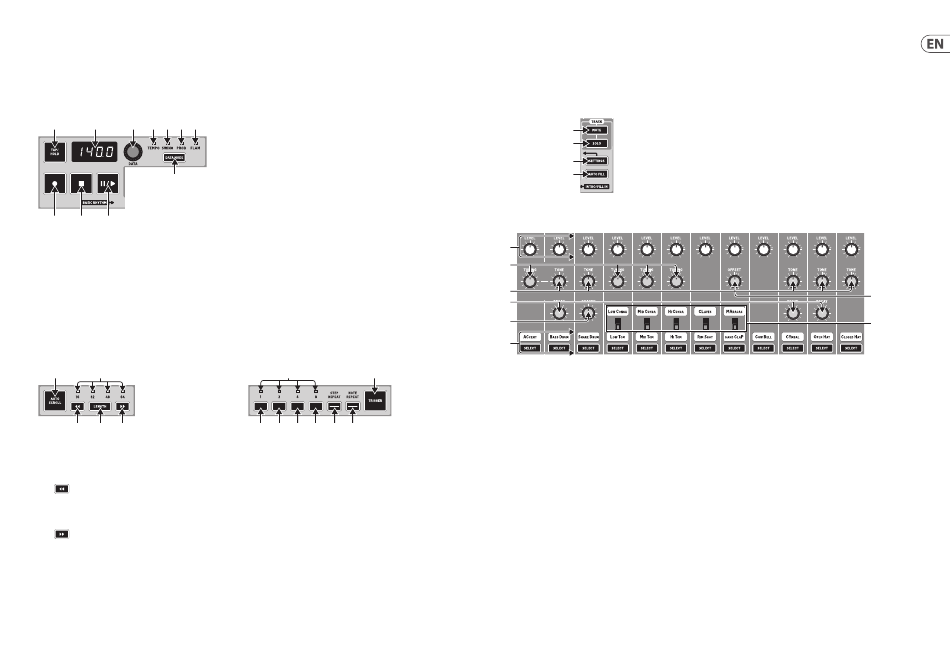

RHYTHM DESIGNER RD-8 Controls
(EN) Step 2: Controls
Playback Controls
(23) (24) (28) (30) (31) (32) (33)
(29)
(25) (26) (27)
TAP/HOLD – Tap Tempo of the pattern. Hold for quick macro control.
(23)
DISPLAY – Multi function 4-character display.
(24)
RECORD – Enable record mode.
(25)
STOP – Stops the currently-playing song or pattern.
(26)
PLAY/PAUSE – Play or pause the current song or pattern.
(27)
DATA – Encoder for data editing.
(28)
DATA MODE – Cycles through the various DATA MODES. Tempo, Swing,
(29)
Probability and Flam.
Auto Scroll Section
(34) (35)
(36) (37) (38)
AUTO SCROLL – Step mode: Keep play head visible. Pattern Mode:
(34)
Advance song when loop expires.
BANKS 16/32/48/64 – White shows bank position of play head in current
(35)
pattern. Blue shows currently-viewed bank position.
Position move left – Step Mode = Choose viewed bank position.
(36)
Pattern Mode = Choose play head position within selected song.
LENGTH – Step mode: Set the length of the selected pattern. Pattern
(37)
Mode = Set number of repeats for selected part within the song.
– Position move right – Step Mode: Choose viewed bank
(38)
position. Pattern Mode = Choose play head position within selected song.
TEMPO – Adjust the TEMPO when selected with the DATA encoder.
(30)
SWING – Adjust the SWING or shuffle feeling when selected with the
(31)
DATA encoder.
PROB – Adjust the probability of a step.
(32)
FLAM – Adjust the FLAM width.
(33)
Step & Note Repeat Section
(46) (45)
(39) (40) (41) (42) (43) (44)
1 – Step or Note repeat of a value of 1.
(39)
2 – Step or Note repeat of a value of 2.
(40)
4 – Step or Note repeat of a value of 4.
(41)
8 – Step or Note repeat of a value of 8.
(42)
STEP REPEAT – Repeats the step by the selected value.
(43)
NOTE REPEAT – Repeats the note by the selected value or single shot.
(44)
TRIGGER – Trigger repeats when engaged.
(45)
1/2/4/8 – Indication of number of repeats selected.
(46)
Track Control and Settings.
(47)
(48)
(50)
(51)
Voice Control
(52)
(53)
(54)
(55)
(56)
(58)
LEVEL – Level of the 11 voices plus Accent.
(52)
TUNING – Relative tuning of associated voice.
(53)
TONE – Applies a filter to the voice reducing the high frequencies as you
(54)
turn CCW.
DECAY – Changes the decay time of the voice. Turn CCW for shorter,
(55)
CW for longer.
Quick Start Guide
MUTE – Activates mute menu
(47)
SOLO – Activates solo menu.
(48)
STEP BUTTONS – Used to input step information into patterns and
(49)
also used for various system tasks when used in conjunction with the
(50) SETTINGS button or for deeper editing.
SETTINGS – Used in combination with the (49) STEP BUTTONS to select
(50)
different operational modes (see user manual for more details).
AUTOFILL – Select and add a fill pattern.
(51)
(59)
(57)
SNAPPY – Adjust the amount of snap sound to the snare sound. Turning to
(56)
the CW increases snap.
VOICE SWITCH – Switch between the two voices available.
(57)
VOICE SELECT – Selects the voice for editing patterns, wave designer/
(58)
filter, soloing or mute.
OFFSET – Changes the length of the Hand Clap sound.
(59)
