Electrical signal integrity considerations

Hide thumbs Also See for BL10e - HP ProLiant - 512 MB RAM:

Table of Contents

of a board for more than two inches of cumulative distance. The length of trace segments that are

parallel to the edge of a board should be minimized as much as possible. Traces should be at an

angle of at least 10º to a board edge. This is to reduce the effects of PCB fiber weave on board

impedance and propagation velocity on differential traces (see Figure 13).

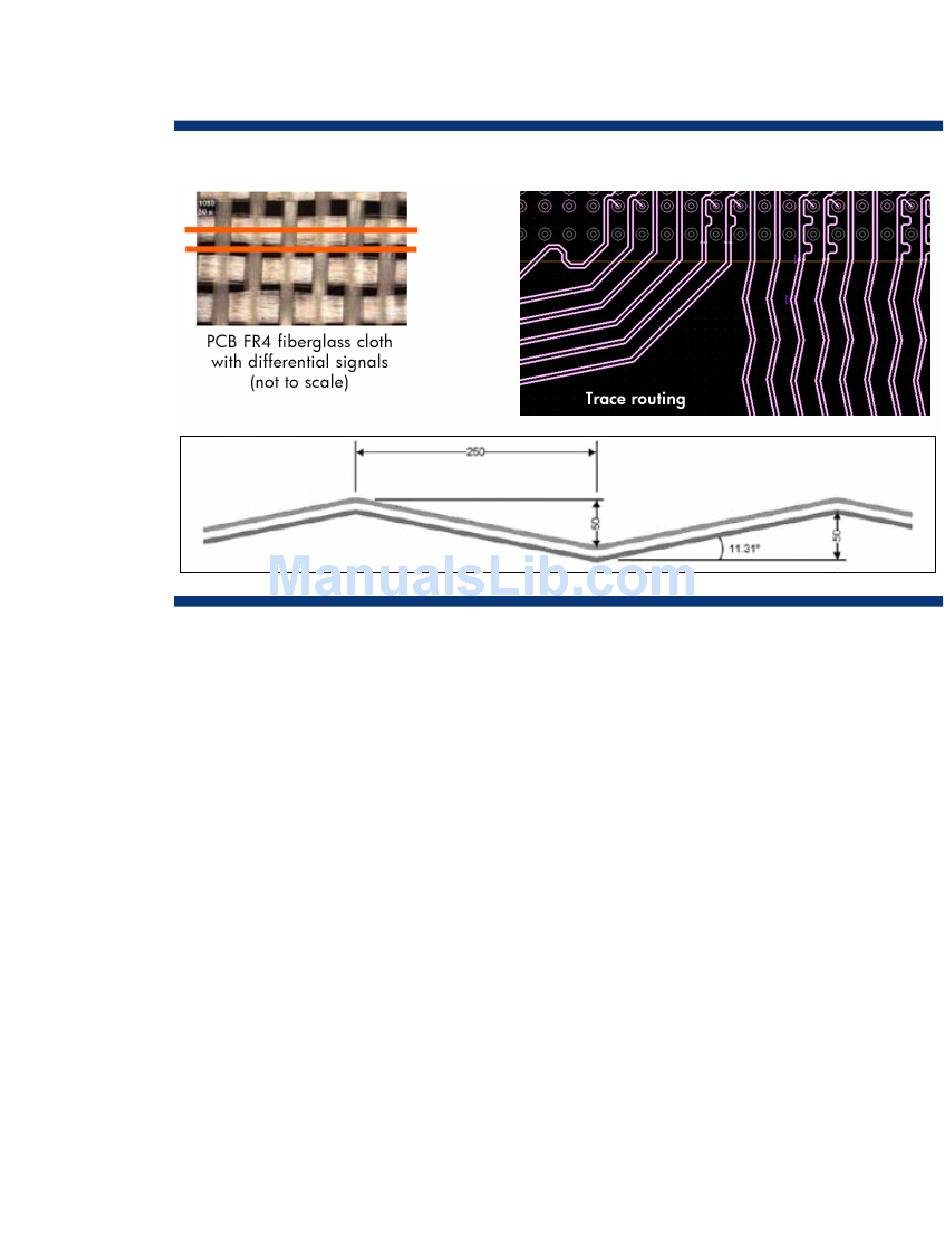

Figure 13. Zig-Zag routing example
