D-Link DSL-504T Quick Installation Manual page 2

Connecting the Router to your
Computer
1. Connect the power adapter to the power input at the back panel of the
DSL-504T and then plug the other end of the power adapter to a wall
outlet or power strip. On the front of the device, the Power LED will
turn ON to indicate proper operation.
2. Insert one end of the Ethernet cable into an Ethernet port on the back
panel of the DSL-504T and the other end of the cable to an Ethernet
Adapter or available Ethernet port on your computer.
3. Insert the telephone cable included with the Router into the ADSL port,
and then connect the cable to your telephone line. (Line must be
activated for ADSL use)
4. Check the LED display on the front of the Router to confirm that the
connections have been made. (This will be shown with solid lights for
the corresponding port)

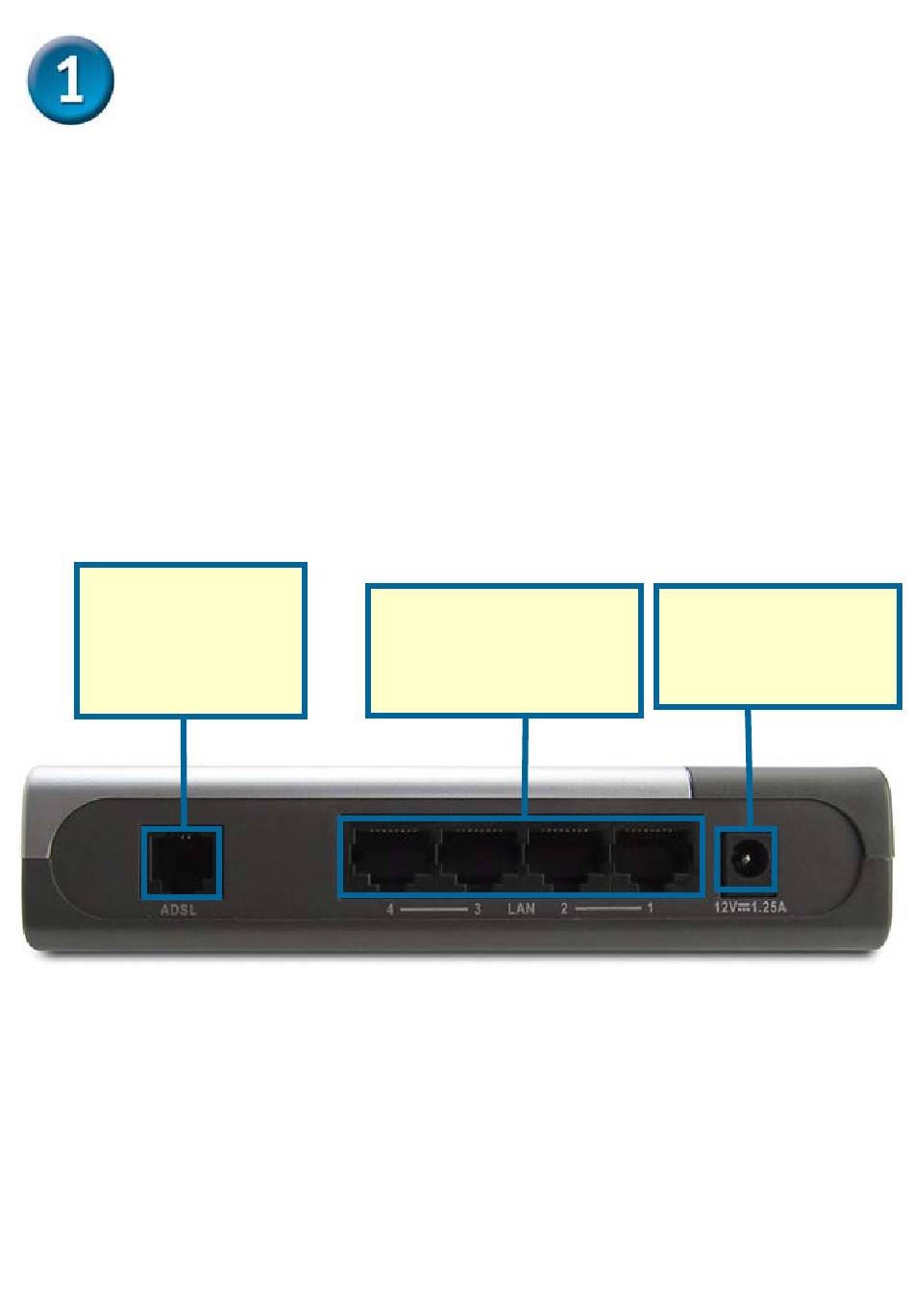

ADSL Port
Connect to
your ADSL
phone line
Ethernet Ports
Connect to
Ethernet cable
2
Power Input
Connect to
power adapter
