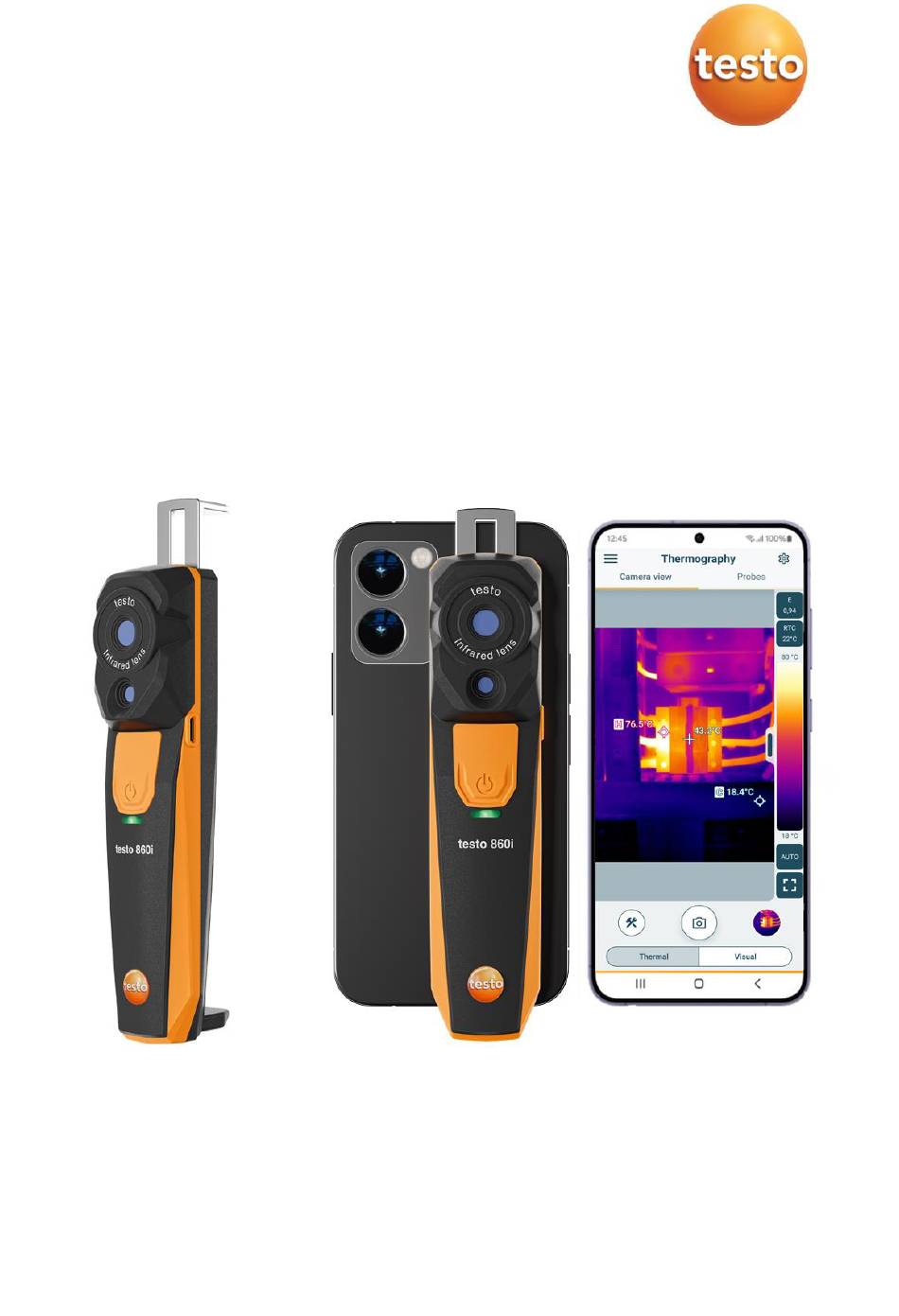

- Page 1 860i – Thermal imager for Smartphones 0560 0860 / 0563 0860 Instruction manual...
-
Page 3: Table Of Contents
Display App Info ................... 16 Maintaining the product ..............17 Removing/ changing the permanently installed battery ......17 Cleaning the instrument ............... 17 Technical data testo 860i ..............18 Tips and assistance ................19 Questions and answers ................ 19 Support ....................19... -
Page 5: About This Document
Only perform maintenance and repair work on this instrument that is described in this documentation. Follow the prescribed steps exactly when doing the work. • Use only original spare parts from Testo. Built-in batteries DANGER Risk of death! The built-in battery can explode if it gets too hot. -
Page 6: Disposal
• At the end of its useful life, deliver the product to the separate collection point for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. WEEE Reg. No. DE 75334352... -
Page 7: Product-Specific Information
Improper handling or use of force will invalidate the warranty! 4 Intended use The testo 860i is a handy and robust thermal imager. In conjunction with the testo Smart App, it enables non-contact determination and display of the temperature distribution of surfaces. -
Page 8: Product Description
5 Product description 5 Product description Instrument overview 1 Infrared camera 2 Integrated digital camera 3 On/off button 4 Status LED Adjustable clip for attachment to USB-C connection smartphone Fixed clip for attachment to Thread for mounting on tripod smartphone (on the underside) -
Page 9: First Steps
Dispose of the device properly (observe local regulations) or return it to Testo for disposal. Only charge the battery with the USB cable supplied by Testo. Connect the device to the mains via the mains adapter. To do this, insert the plug of the power supply unit into the charging socket on the right-hand side of the device. -
Page 10: Led Status
860i is switched on, searches for connection to testo Smart App, but is not connected. Green testo 860i is switched on and connected to testo Smart App. Establishing a Smart App connection To establish a connection, you need a tablet or smartphone with the Testo Smart App already installed on ®... -
Page 11: Main Menu
The app automatically searches for ® Bluetooth devices in the vicinity. If several devices are found, select the testo 860i and select Connect. The connection is established via WLAN. If applicable, also confirm the pairing request of the operating system (Android / iOS). -
Page 12: Thermography Application Area
6 First steps Thermography application area Thermography application area combines all the functions required for thermal imaging. Click on in the testo Smart App. Select Application areas. Select Thermography. Thermography menu can be selected as default page of the app by clicking on ... -
Page 13: Overview Of Thermography Programs
6 First steps Overview of Thermography programs 2 List of thermography programs 1 Menu Define certain measurement Call up measurements saved in the programs as favourites gallery 5 IFOV calculation 6 Generate reports Define the actual view as Information about application default site... - Page 14 6 First steps The testo Smart App offers the following thermography programs: Measurement program Usage Thermography Universal measuring program for every thermal application DeltaHeat Quick determination of the spread of flow and return temperatures on radiators. DeltaCool Quick determination of the differential temperature on refrigeration and air conditioning systems.
-
Page 15: Thermography Measurement View
Buttons with additional Switch between the views: functions - Thermal = Image of the thermal imaging camera - Visual = image of the digital camera Temperature distribution scale Battery status of testo 860i and function buttons 9 Configuration of the measurement... -
Page 16: Setting The Measuring Range And Target Distance
Setting the measuring range and target distance In order to obtain reliable measurement results, the settings for the measuring range and target distance must be checked and adjusted if necessary.. Click in the testo Smart App. Select Measurement instruments. Select testo 860i. - Page 17 6 First steps In the detailed view for the testo 860i, select the Settings tab. Check the settings for the Measurement range and the Target Distance and, if necessary, adjust them. In most cases, Automatic the best choice.
-
Page 18: App Options
A selection list is displayed Tap the required language. The language has been changed. 6.9.2 Display tutorial Tutorial guides you through the first steps when operating the Testo Smart App. Click -> Help & Information -> Tutorial. Tutorial is displayed. -
Page 19: Maintaining The Product
Instructions for removing the permanently installed battery are available from Testo on request or on the Testo website. The steps shown there should only be carried out if the device is defective and is to be disposed of. -
Page 20: Technical Data Testo 860I
8 Technical data testo 860i 8 Technical data testo 860i Feature Value Infrared resolution 256 x 192 Pixel Thermal sensitivity (NETD) 50 mK Field of view 48° x 36 min. Focus distance 0.3 m Geometric resolution (IFOV) 3.3 mrad Refresh rate... -
Page 21: Tips And Assistance
You can find up-to-date information on products, downloads and links to contact addresses for support queries on the Testo website at: www.testo.com. If you have any questions please contact your local dealer or the Testo Customer Service. You can find contact details on the back of this document or... - Page 22 Testo SE & Co. KGaA Celsiusstr. 1 79822 Titisee-Neustadt Germany Phone: +49 (0)7653 681-0 Email: info@testo.de www.testo.com 0970 8601 en 01 – 12.2024...
