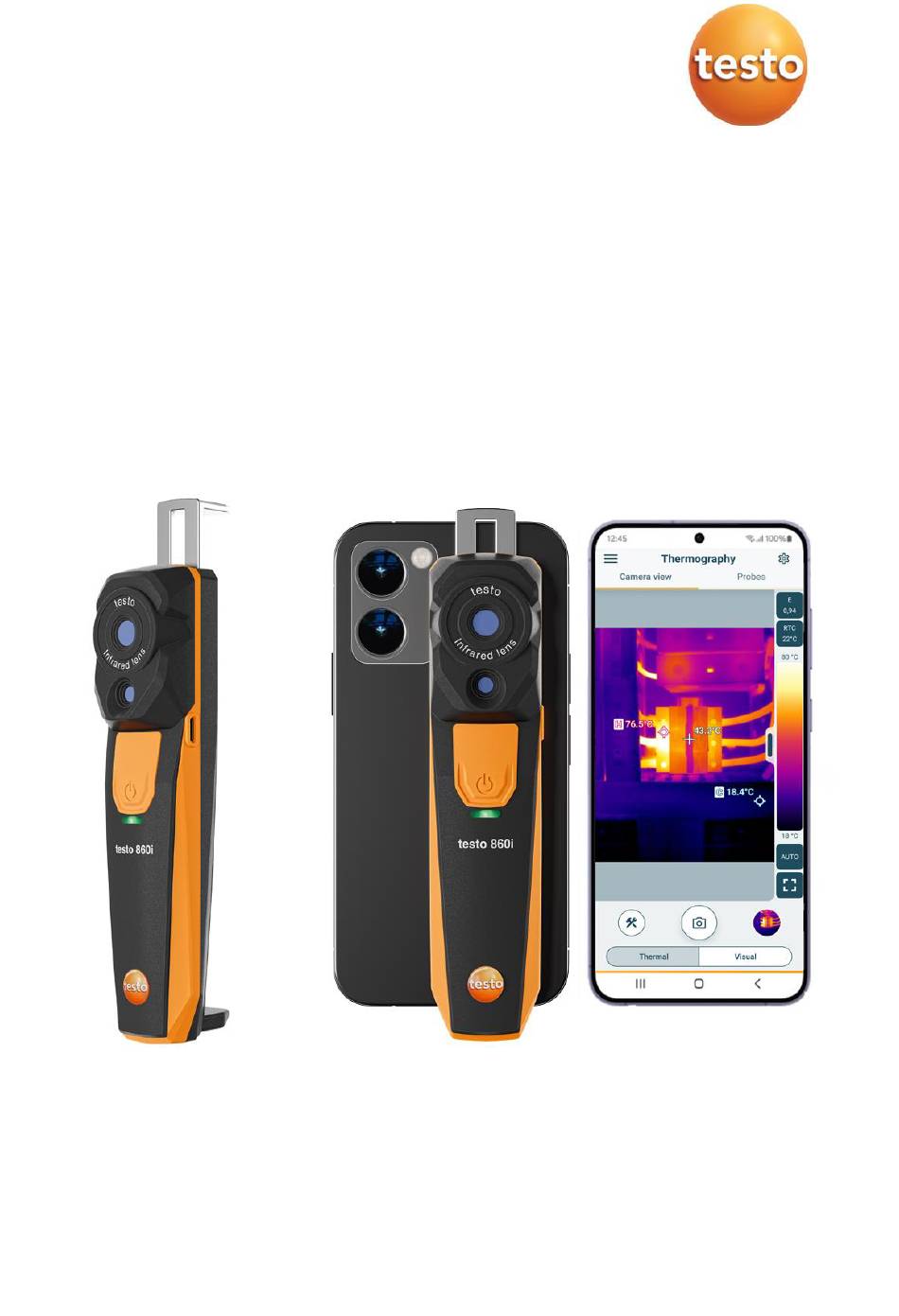

- Page 1 860i – Thermal imager for Smartphones 0560 0860 01 / 0563 0860 01 Instruction manual...
-
Page 2: Table Of Contents
Maintaining the product ..............22 Removing/ changing the permanently installed battery ......22 Cleaning the instrument ............... 22 Technical data testo 860i ..............23 Tips and assistance ................25 Questions and answers ................ 25 Accessories and spare parts ..............25... -
Page 3: About This Document
Do not store the product together with solvents. • Do not use any desiccants. • Only perform maintenance and repair work on this instrument that is described in this documentation. Follow the prescribed steps exactly when doing the work. • Use only original spare parts from Testo. -
Page 4: Disposal
• At the end of its useful life, deliver the product to the separate collection point for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. WEEE Reg. No. DE 75334352... -
Page 5: Product-Specific Information
Improper handling or use of force will invalidate the warranty! 4 Intended use The testo 860i is a handy and robust thermal imager. In conjunction with the testo Smart App, it enables non-contact determination and display of the temperature distribution of surfaces. -
Page 6: Product Description
5 Product description 5 Product description Instrument overview 1 Infrared camera 2 Integrated digital camera 3 On/off button 4 Status LED Adjustable clip for attachment to USB-C connection smartphone Fixed clip for attachment to Thread for mounting on tripod smartphone (on the underside) -
Page 7: First Steps
Dispose of the device properly (observe local regulations) or return it to Testo for disposal. Only charge the battery with the USB cable supplied by Testo. Charging current: 5 V DC, 2 A Connect the device to the mains via the mains adapter. To do this, insert the plug of the power supply unit into the charging socket on the right-hand side of the device. -
Page 8: Led Status
® Bluetooth 4.0 for fast connection establishment. Bluetooth data interface: peer-to-peer advertising for fast connection establishment After installing the testo Smart App, the location data must be released so that the connection to the testo 860i can be established. -
Page 9: Main Menu
The app automatically searches for ® Bluetooth devices in the vicinity. If several devices are found, select the testo 860i and select Connect. The connection is established via WLAN. If applicable, also confirm the pairing request of the operating system (Android / iOS). -
Page 10: Thermography Application Area
6 First steps Thermography application area Thermography application area combines all the functions required for thermal imaging. Click on in the testo Smart App. Select Application areas. Select Thermography. Thermography menu can be selected as default page of the app by clicking on ... -
Page 11: Overview Of Thermography Programs
6 First steps Overview of Thermography programs 2 List of thermography programs 1 Back to Applications areas Define certain measurement Call up measurements saved in the programs as favourites gallery 5 IFOV calculation 6 Tutorials with additional information Define the actual view as default 7 Generate reports site Information about application... - Page 12 6 First steps The testo Smart App offers the following thermography programs: Measurement program Usage Thermography Universal measuring program for every thermal application DeltaHeat Quick determination of the spread of flow and return temperatures on radiators. DeltaCool Quick determination of the differential temperature on refrigeration and air conditioning systems.
-
Page 13: Thermography Measurement View
Buttons with additional Switch between the views: functions - Thermal = Image of the thermal imaging camera - Visual = image of the digital camera Temperature distribution Battery status of testo 860i scale and function buttons 9 Configuration of the measurement... - Page 14 6 First steps Additional icons: Emissivity value RTC value (Reflected Temperature Compensation) Scale Mode (Auto / Manual/ SA – Tools (Add measurement ScaleAssist) functions, change colour palette, assign action button) Snapshot Summary view Configurable action button: e. g. switch between full screen and window...
-
Page 15: Deltaheat Measurement View
6 First steps DeltaHeat measurement view 1 Main menu 2 Supply measuring point 3 Camera image 4 Return measuring point Display of the determined Buttons with additional temperature difference with status functions, e.g. for saving the display and info text with notes and camera image suggested solutions Switch between the views:... -
Page 16: Deltacool Measurement View
6 First steps DeltaCool measurement view 1 Main menu 2 Camera image Display of the T1 / T2 Display of detected temperature measuring points difference Buttons with additional Switch between the views: functions, e.g. for saving the - Thermal = Image of the thermal camera image imaging camera - Visual = image of the digital camera... -
Page 17: Humidity Measurement View
6 First steps 6.10 Humidity measurement view Camera view Main menu Display of the spot with the lowest room humidity Display of the spot with the Display of relative humidity and air highest room humidity temperature Buttons with additional Switch between the views: functions - Humidity = Image of the thermal imaging camera... - Page 18 Switch between Camera view and 1 Main menu view of connected probes Display of the camera image of Display of measurement values of testo 860i further connected probes 6 Configuration of probes 5 Possibility to create a recording 7 Configuration of the measurement...
-
Page 19: Setting The Measuring Range And Target Distance
In order to obtain reliable measurement results, the settings for the measuring range and target distance must be checked and adjusted if necessary.. Click in the testo Smart App. Select Measurement instruments. Select testo 860i. In the detailed view for the testo 860i, select the Settings tab. - Page 20 6 First steps Check the settings for the Measurement range and the Target Distance and, if necessary, adjust them. In most cases, Automatic the best choice.
-
Page 21: App Options
Click Save changes. The language has been changed. 6.12.2 Display tutorial Tutorial guides you through the first steps when operating the Testo Smart App. Click -> Help and Information -> Tutorial. Tutorial is displayed. In Tutorial, swipe to display the next page. -
Page 22: Maintaining The Product
Instructions for removing the permanently installed battery are available from Testo on request or on the Testo website. The steps shown there should only be carried out if the device is defective and is to be disposed of. -
Page 23: Technical Data Testo 860I
8 Technical data testo 860i 8 Technical data testo 860i Feature Value Infrared resolution 256 x 192 Pixel Thermal sensitivity (NETD) 50 mK Field of view 48° x 36 min. Focus distance 0.3 m Geometric resolution (IFOV) 3.3 mrad Refresh rate... - Page 24 8 Technical data testo 860i Feature Value Weight 195 g / 6.9 oz Directives EMC: 2014/30/EU RED: 2014/53/EU WEEE: 2012/19/EU RoHS: 2011/65/EU + 2015/863/EU REACH: 1907/2006...
-
Page 25: Tips And Assistance
You can find up-to-date information on products, downloads and links to contact addresses for support queries on the Testo website at: www.testo.com. If you have any questions please contact your local dealer or the Testo Customer Service. You can find contact details on the back of this document or... - Page 26 Testo SE & Co. KGaA Celsiusstr. 1 79822 Titisee-Neustadt Germany Phone: +49 (0)7653 681-0 Email: info@testo.de www.testo.com 0970 8601 en-us 02 – 04.2025...
