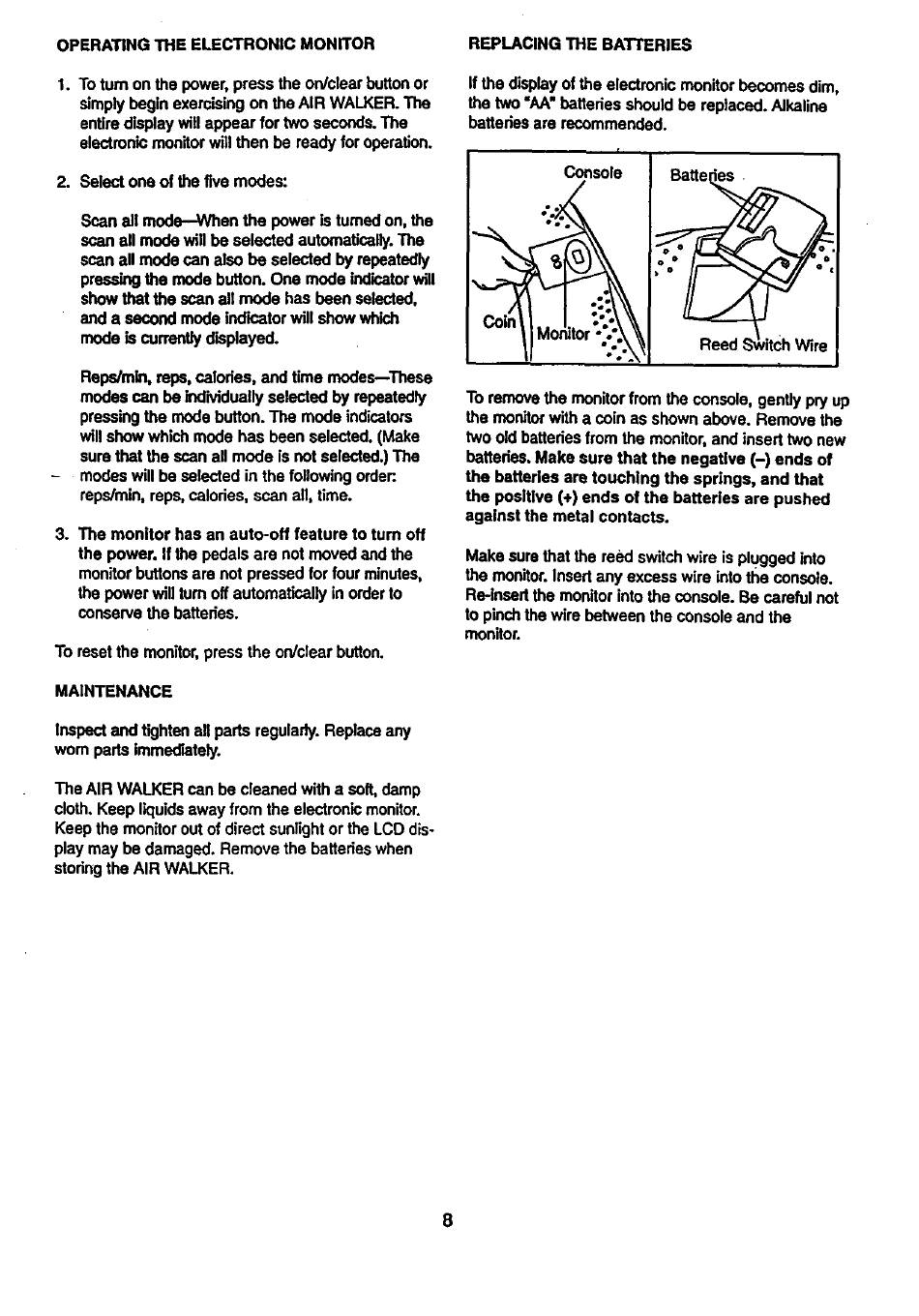

Sears PRO-FORM Air Walker User Manual page 8

OPERATING THE ELECTRONIC MONITOR
1. To tum on the power, press the on/clear button or
simply begin exercising on the AIR WALKER. The
entire display will appear for two seconds. The
electronic monitor will then be ready for operation.
2. Select one of the five modes:
Scan all mode-When the power is tumed on, the
scan all mode will be selected automatically. The
scan all mode can also be selected by repeatedly
pressing the mode button. One mode indicator will
show that the scan all mode has been selected,
• and a second mode incrmatorwill chow which
mode is currently displayed.
Reps/min, rape, calodas, and time modes-These
modes can be individually selected by repeatedly
pressing the mode button. The mode indicators
will show which mode has been selected. (Make
sure that the scan all mode is not selected.) The
- modes will be selected in the following order:.
reps/min, reps, calories, scan all, time.
3. The monitor has an auto-off feature to turn off
the power. If the pedals are not moved and the
monitor buttons are not pressed for four minutes,
the power will turn off automatically in order to
conserve the batteries.
To reset the monitor, press the on/clear button.
MAINTENANCE
Inspect and tighten all pads regularly. Replace any
worn pads immediately.
The AIR WALKER can be cleaned with a soft, damp
cloth. Keep liquids away from the electronic monitor.
Keep the monitor out of direct sunlight or the LCD dis-
play may be damaged. Remove the batteries when
stodng the AIR WALKER.
REPLACING THE BATTERIES
If the display of the electronic monitor becomes dim,
the two "AA" batteries should be replaced. Alkaline
battedes are recommended.
Reed
To remove the monitor from the console, gently pry up
the monitor with a coin as shown above. Remove the
two old battedss from the monitor, and insert two new
batteries. Make sure that the negative (-) ends of
the batteries are touching the springs, and that
the posltive (+) ends of the batteries are pushed
against the metal contacts.
Make sure that the reed switch wire is plugged into
the monitor. Insert any excess wire into the console.
Re-insert the monitor into the console. Be careful not
to pinch the wire between the console and the
monitor.
8
