3. See figure 3b. Find the Right Leg (7). Note: The
Right Leg is marked with a "RIGHT" sticker.
Set a Pedal (28) on the plate at the lower end of
the Right Leg. Note: Be careful not to attach
the Pedal backwards. Look at the curve of the
Right Leg and the front end of the Pedal to
make sure that the Pedal is turned correctly.
See figure 3a. Turn the Right Leg (7) and the
Pedal (28) upside-down as shown. Attach the
Pedal with four #8 x 1/2" Screws (31).
.
See figure 4. Look into the upper end of the
Right Leg (7) and make sure that the Plastic
Sleeve (41) is fully inseded.
See figure 4. Find the Right Handle (11)o Note:
The Right Handle Is marked with a "RIGHT"
sticker. Insert the Right Handle into the Right
Leg (7),
See figure 4. Slide a 3/8" Curved Washer (27)
onto a 2" Upper Screw (25). Note: Use the
actual-slze drawing to identify the 2" Upper
Screw (25). Insed the 2" Upper Screw into the
upper hole in the Right Leg (7) and the Right
Handle (11).
See figure 4. Slide a 3/8" Curved Washer (27)
onto a 2 1/4" Lower Screw (26). Note: Use the
actual-size drawing to identify the 2 114"
Lower Screw (26). Insed the 2 1/4" Lower
Screw into the lower hole in the Right Leg (7)
and the Right Handle (11).
See figure 4. Make sure that the 2" Upper
Screw (25) Is in the upper hole, and that the
2 114" Lower Screw (26) is in the lower hole.
The Screws must be inserted from the side
shown.

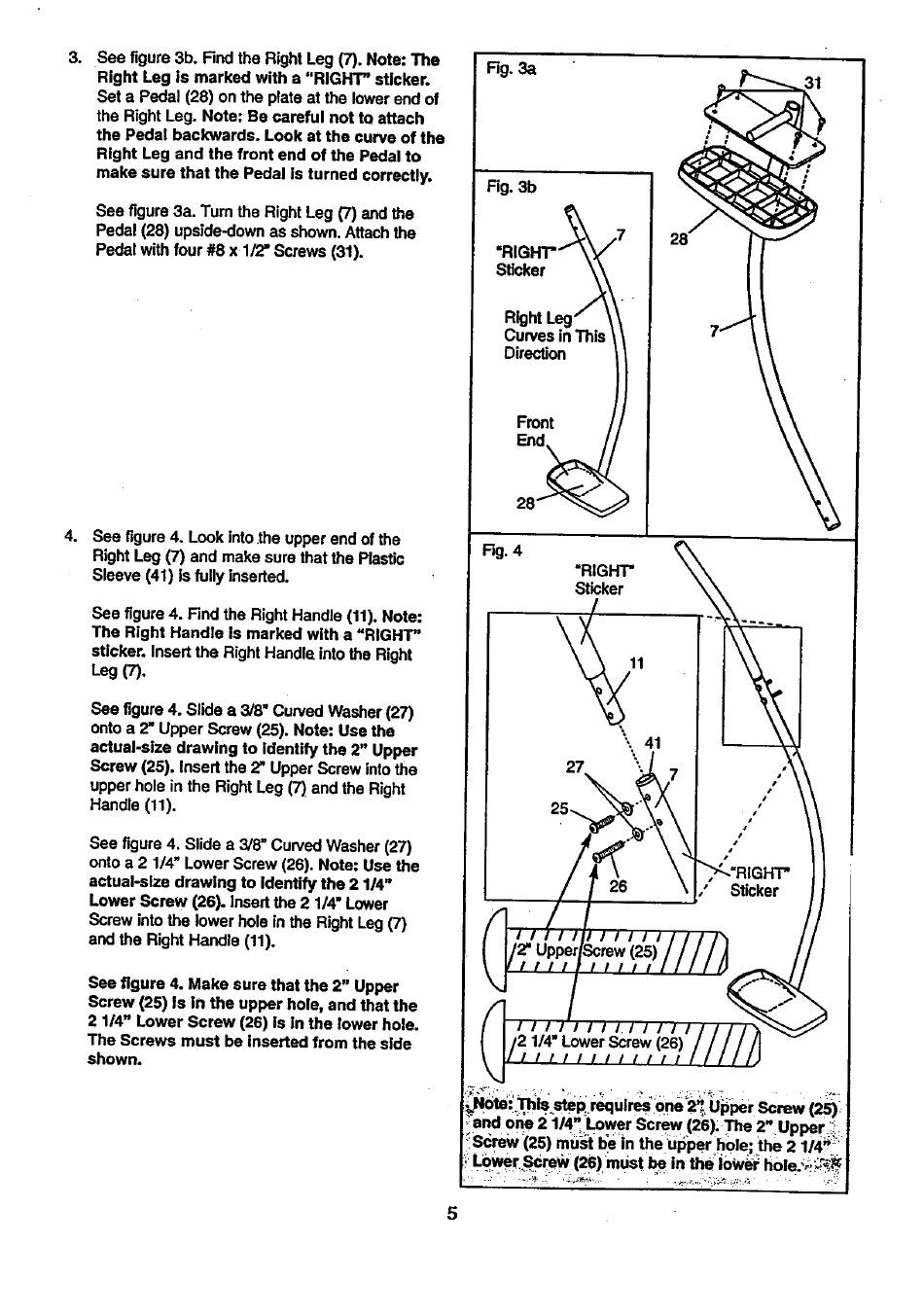

Flg. 3a
Fig. 3b
=RIGHT"_
Sticker \
R htLeg j
Curves in This
Direction
Front
End Y
Fig. 4
"RIGHT"
Sticker
\ 41
_o
7 ,,..'\
/ ] 26\/ Sticker 1]
if] i 1 .to%1 '////I
jll I I I I I I I I I I I I I I I I)
_.Note-+Thls.step..requlres one 2'_,Upper Screw (25)
_and one 2 1/4, Lower Screw (26), The 2" Upper ::;_
: S(_rew (25) must b_eJnthe :ul_perhole; the 2 114_:::.:
:+' ILiower_W !26)must be in th_J0w_i _h01e.;i:_
