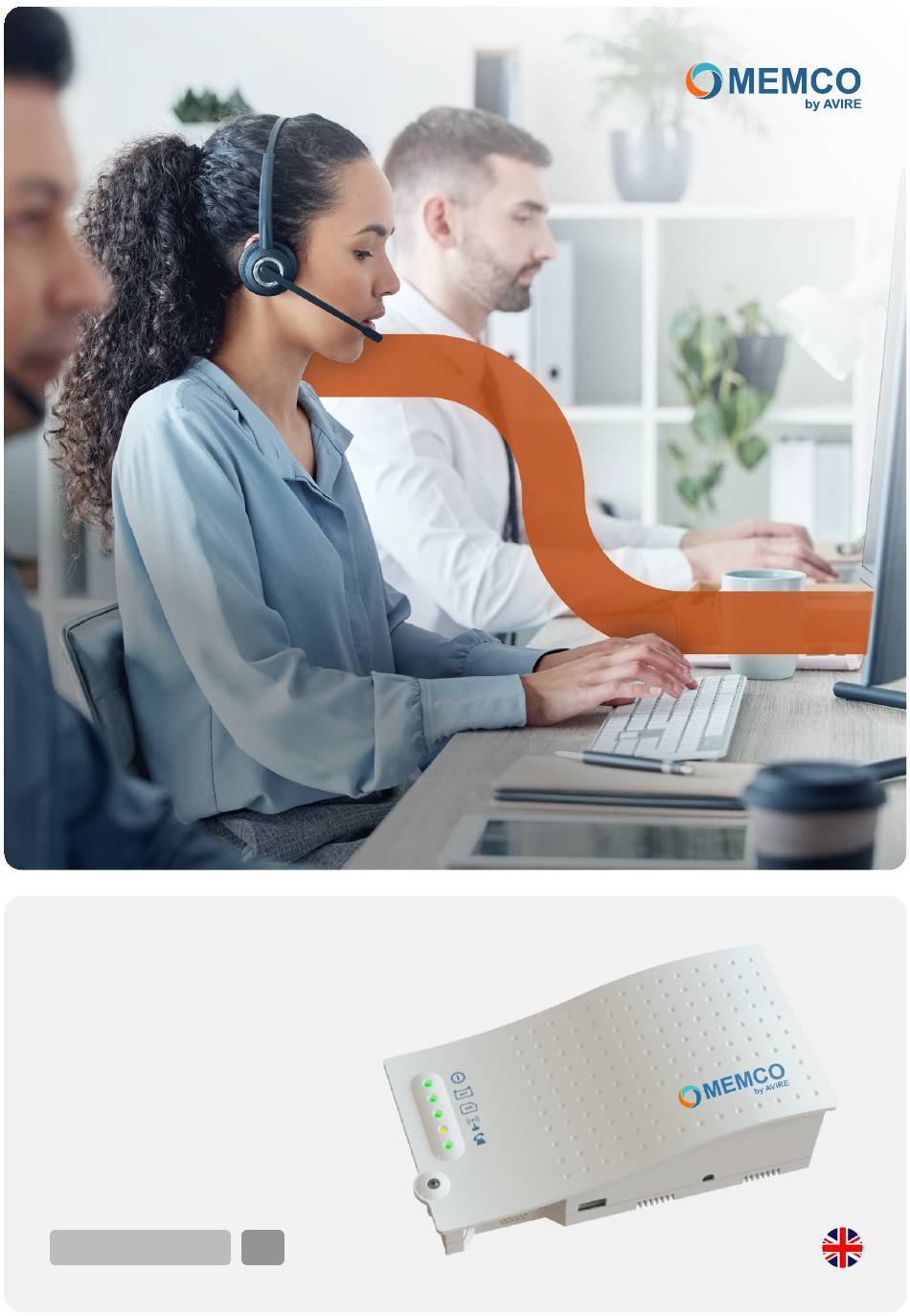

- Page 1 Connecting and protecting people Installation guide 4G DCP 2.0 MU-845XXMK101-GB...
- Page 2 The 4G Digital Communication Platform (DCP) 2.0 provides a communication gateway between all compatible connected devices in the lift shaft and our cloud-based platform, the AVIRE Hub. This allows you to manage the 4G DCP 2.0 as well as any connected MEMCO Digital Audio Unit (DAU) or third party P100 compatible phone.
- Page 3 Connections SIM Card Slot. The device’s battery will be disconnected when shipped from factory. The battery will need to be connected at this connector when first commissioning and installing the device Wiring and battery colours may differ from image. IMPORTANT: Do not use batteries other than those supplied by MEMCO. The use of a non approved battery may result in damage to the equipment and any other devices connected to it.
- Page 4 Connections Either of the two connectors provided can be used for connection to an analogue telephone system. Connector (5) is normally used to connect an existing analogue emergency phone which has been installed. A maximum of 4 analogue devices (cars) can be connected. Connector (6) is typically used to connect a telephone terminal located in the machine room.
- Page 5 Connections RS422/485 configuration (Only on some models) JP1 This communications port can be configured as RS-485 (2-3) half duplex or RS-422 (1-2) full duplex. JP2 allows a 120H resistor to be connected (2-3) as an end-of-bus load resistor to the R+ and R- branch of the full duplex configuration if required. JP3 allows you to connect (2-3) a bus-end load resistor on the T/R+ and T/R- branch in the full duplex or half duplex configuration if required.
-
Page 6: Indicator Lights
Indicator Lights The 4G DCP 2.0 has five indicator lights that indicate the device status at all times. Each indicator can be lit in green, amber, or red and can either be lit solid or flashing intermittently. After 60 seconds of starting up the 4G DCP 2.0, the following should be visible: Indicator The device is in good condition and fully operational... - Page 7 Indicator Lights Battery Solid Flashing DAU battery Charging Low Battery Error failure Solid Flashing Call in Call in Connected to Connected to No Service / No Service / progress on progress on 4G network 2G network connecting Missing PIN Coverage Solid Optimal Coverage Medium Coverage...
-
Page 8: Installation And Commissioning
Installation and Commissioning 4G DCP 2.0 Remove the screw on the top and remove the cover of the 4G DCP 2.0. Insert the SIM card in the SIM card slot. Connect the antenna Press the SW2 button for a minimum of 3 seconds. Wait for the indicator lights to turn on. - Page 9 Mounting the 4G DCP 2.0 To mount the device, drill two holes into the wall and insert the plugs and screws (POZ 4.5x35) supplied with the device. Hang the 4G DCP 2.0 on the two screws using the teardrop-shaped holes located in the rear casing (the midpoints of the holes are 105mm apart). Installation Guide...
- Page 10 Testing Coverage The 4G DCP 2.0 includes functionality to measure coverage at your location. To activate this feature, please follow the steps below: Move position/toggle 1 on SW1 switch to the ‘ON’ position. The device will enter installation mode and the signal quality will be displayed on the indicator lights.
- Page 11 SIM Card IMPORTANT: AVIRE SIM cards do not have a SIM PIN code. If the SIM LED is flashing red, please ensure that it has been inserted correctly. The SIM PIN code for other network providers may vary. If present, it usually appears on the outer plastic casing of the SIM card.
- Page 12 The AVIRE app (available on the Apple App Store and Google Play) allows installers to set up the 4G DCP 2.0 quickly and easily, as well as connect to the AVIRE Hub. The AVIRE app removes the need to set up the device via SMS and guides you through the installation process on your smartphone.
- Page 13 Text sample shown on the right is Pin1234, P091 431 for the following: Spain SMS 1/1 MK845: Portugal Country = UK, Operator = EE TRACK_GSM_MK_845 P091= 4310 Italy Call Centre - AVIRE Hub Europe Germany France Spain Portugal Italy Germany France AVIRE SIM Telefonica...
- Page 14 This setting is often used when connecting the 4G DCP 2.0 to a PSTN phone or an incompatible lift controller. The AVIRE Hub Europe setting is used when monitoring via the AVIRE Hub (AVIRE Ecosystem Devices) is required AVIRE HUB Europe...
- Page 15 General Parameters Available SMS Commands Almost all the parameters of the 4G DCP 2.0 can be checked and/or modified by sending an SMS to the device. In a single SMS it is possible to modify and/or check several parameters by separating each of the parameters with a comma “,”. Each SMS must start with “PINxxxx”.
- Page 16 General Parameters Available Identification & Status Parameter Description Range Factory Value Alphanumeric identification 40 characters TRACK_GSM_MK_845 Hardware & firmware version Read-only According to manufacturing IMEI number Read-only Hardware status Read-only Identification message 0 = Off 1 = On 2 = Only if there is a (2= DAU at installation) DAU present Hardware...
- Page 17 General Parameters Available Serial Port Parameter Description Rank Factory Value 0 = Not used, 4= AT Modem Baud rate of the Port 0 = 1200, 1 = 2400, 3 = 9600, 4 = 14400, 5 = 19200, 6 = 38400, 7 = 57600, 8 = 115200 Communications format 0 = 8N1, 1 = 8N2, 3 = 8E3,...
- Page 18 General Parameters Available Phone List Options Parameter Description Rank Factory Value Whitelist filter enabled on incoming calls. (0 = No, 1 = Yes) Speed dial calls (0 = No, 1 = Yes) Block outgoing calls from the intercom. (0 = No, 1 = Yes) Carrier Settings Parameter Description...
- Page 19 1 = SSL Permanent Context 2 = SSL Temporary Context Heartbeat to the server in minutes 0000 - 9999 4320 IP or Hostname A AVIREhub.AVIRE-global.com IP or Hostname A Host Port A m2mLIFT 8883 Audio & SLIC Settings Parameter Description...
- Page 20 General Parameters Available SLIC Tones Settings Parameter Description Rank Factory Value Setting the different indicative tones: A = Dial tone B = Ring tone (Ring) ABCD 4335 C = Engaged tone (communicating) D = Line congestion tone Country Coding Country Value Country Value...
- Page 21 General Parameters Available Special Functions (Direct Commands) Parameter Description Value Triggers an immediate test call 094 = 1 Enables serial port in transparent mode 094 = Server name; port Displays data consumption in KB 094 = 3 Please contact our technical department if you need access to these features Reset and Factory Default Values for 4G DCP 2.0 Parameter Description...
-
Page 22: Device Dimensions
Device Dimensions Installation Guide... -
Page 23: Safety Instructions
This device includes a 12V/800mAh NiMH battery that must be replaced every 3 years. Install AVIRE authorised batteries only and allow only qualified personnel to replace them. There is a risk of explosion or damage if the battery is replaced with an incorrect type of battery.
