Bestron ABP604BB Manual

Technical Specifications

OPERATION

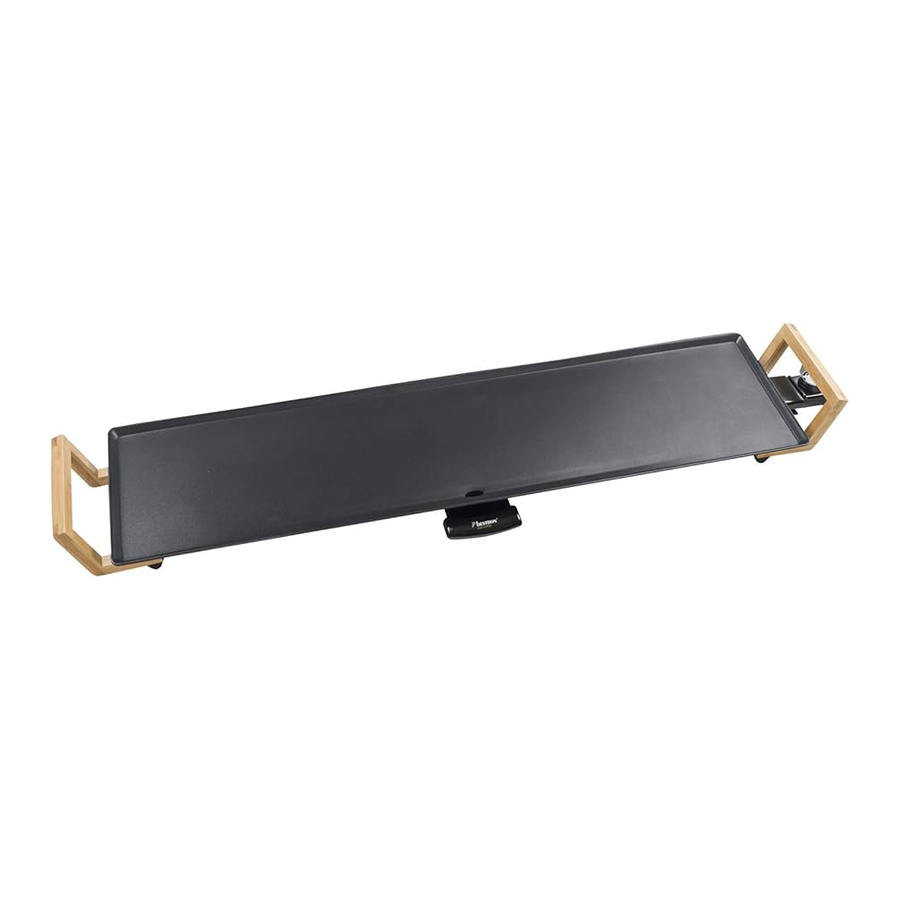

General

1. Handle
2. Grill plate
3. Socket
4. Thermostat dial
5. Indicator light, temperature
6. Removable thermostat
7. Power cord with plug
8. Collecting groove and drip tray
9. Non-slip feet

Before first use

1. Remove the grill from the packaging, and remove all packaging materials.
2. Clean the grill plate before using the appliance for the first time (see 'Cleaning and maintenance').

• The appliance may emit a little smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop on its own. Make sure the appliance has sufficient ventilation.
• Keep house birds away from the appliance when it is in use. Fumes released from the non-stick coating are harmful to birds.

Preheating

1. Put the appliance on a level and heat-resistant surface.
2. Insert the thermostat completely into the connection socket of the grill plate. Only the supplied cord with thermostat may be used.
3. Put the plug in the wall socket.
4. Adjust the thermostat dial to the required temperature (position 1 through 5). The indicator light on the thermostat will illuminate to show that the heating element has been switched on.
   Position Temperature (°C)
   1. approx. 180°C
   2. approx. 200°C
   3. approx. 220°C
   4. approx. 240°C
   5. approx. 260°C
5. After waiting a few minutes check whether the indicator light is extinguished.
6. Once the indicator light has extinguished the appliance has reached the required temperature, and is ready for use. During use the heating element will switch on and off to keep the temperature of the grill plate constant. Consequently the indicator light will also occasionally be illuminated.

Grilling

1. Allow the grill plate to preheat (see 'Preheating').
2. If so required, grease the grill plate with a little oil.
3. Place the food you wish to grill on the grill plate.
4. Grill the food until it is cooked. Turn the food over occasionally whilst it is being grilled to ensure that both sides are evenly cooked.
5. Remove the food from the grill plate and place on a plate. Take care! The food is hot.

After use

1. Turn the thermostat dial to the "0" position.
2. Remove the plug from the wall socket.
3. Let the appliance cool down fully.
4. Remove the thermostat by holding the appliance's handle with one hand and pulling the thermostat out of the socket with the other hand. Make sure you do not touch the appliance's metal socket; it may still be hot. Always hold the thermostat by the plastic section.

• The metal pin fitted to the thermostat can be very hot.

CLEANING AND MAINTENANCE

Clean the grill plate after each use.

1. Remove the plug from the wall socket, allow the appliance to cool down completely, and pull the thermostat out of the socket.
2. Clean the grill plate and the base with a damp cloth, if necessary moistened with a couple of drops of washing-up liquid.
3. Dry the grill plate and the base thoroughly.

• Verify that the appliance is not connected to the power supply before you start to clean it.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Never immerse the socket, thermostat, plug or power cord in water or other liquid.

SAFETY INSTRUCTIONS

• This appliance is not intended for professional use, but is intended for domestic and similar use, such as in staff kitchens, in shops, offices and other working environments, by guests in hotels, motels and other residential environments, in Bed & Breakfast type environments and farms.
• Make sure that the mains voltage matches with the voltage shown on the rating plate.
• Always install the appliance on a stable and level surface where it cannot fall over.
• Parts of this appliance may become warm or hot. Avoid burning yourself. Do not touch.
• Your hands must be dry when you touch this appliance, it's cord and plug.
• This appliance must lose it's heat so give it sufficient clearance around it. Also do not cover it.
• This appliance, the cord and the plug must not come into contact with water, heat sources or open flames.
• Do not touch this device if it has come into contact with water. Immediately remove the plug from the socket.
• Never let the cord hang over the edge of the sink, worktop or table.
• Always remove the plug from the socket when you are not using the electrical appliance.
• Remove the plug from the socket by pulling on the plug itself and not on the cord.
• Do not use the electrical appliance if the cord is damaged.
• Do not operate this appliance with an external timer or separate remote control system.
• If the appliance or cord is defective, do not attempt to repair it yourself. Always have repairs carried out by a qualified technician. It must be replaced by the manufacturer, a technical service provider or a person with equivalent qualifications, to avoid any danger.
• Do not move this device when it is turned on or still hot.
• Never use this device near birds. The fumes released from the nonstick coating can cause stress or worse in birds.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the dangers.
• Children are not allowed to clean or maintain the appliance unless they are over 8 years old and supervised.
• Keep the appliance and the cord out of the reach of children under the age of 8.
• Children shall not play with the appliance.
• Only hold the device by the handles. All metal parts can be very hot.
• Do not use sharp or metal objects on the grill plate, stone grill plate or pans. These will damage the non-stick coating.

SERVICE

In the unlikely event of a malfunction, please contact Bestron customer service: www.bestron.com/service
