The Smart A/C Module has a test button used to simulate
an overload condition. This button operates even when
the transfer signal is inactive.
0 GROUND
194 +12V
23 TRANSFER
A/C 1
A/C 2
B
A/C 3
A/C 4

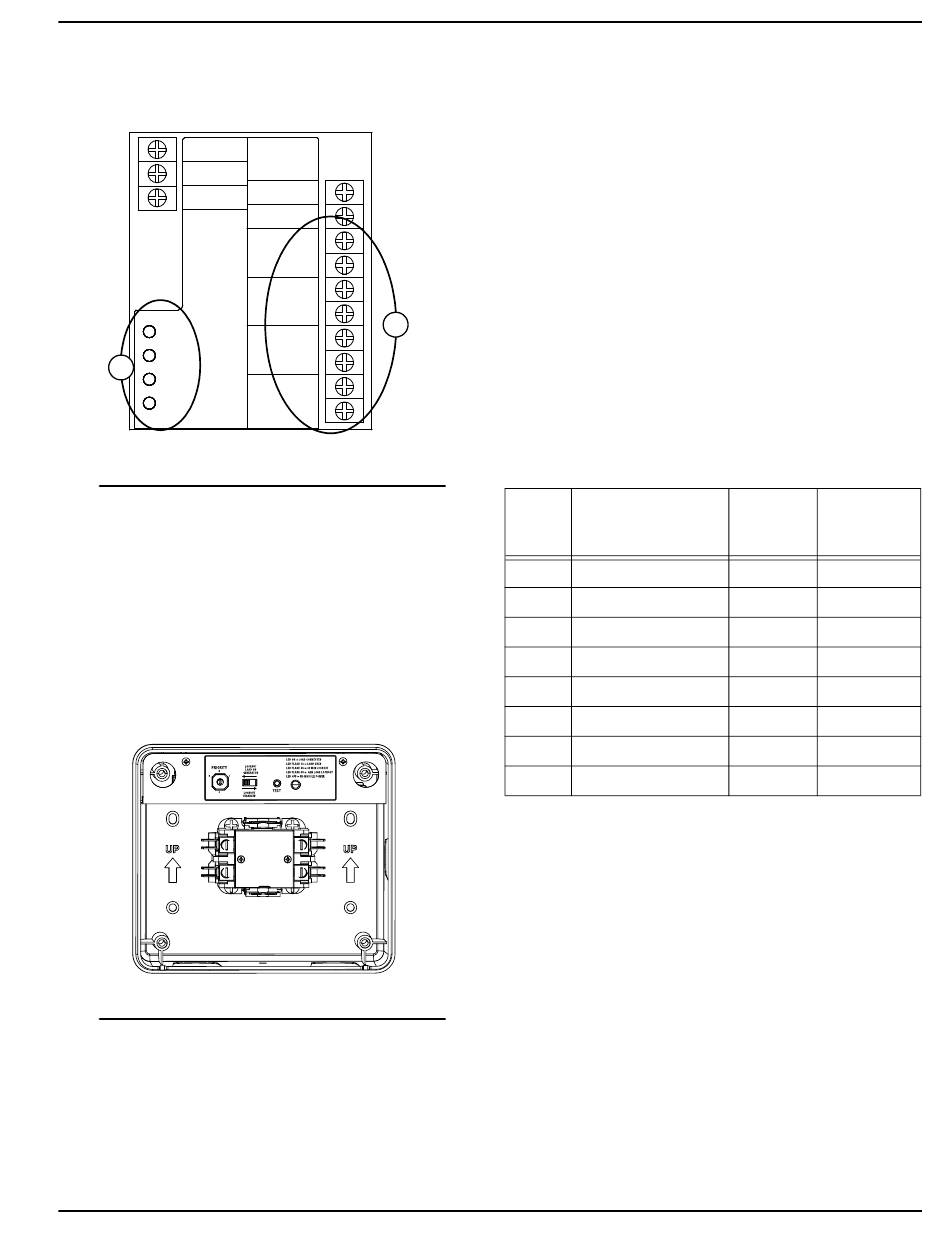

Figure 2-2. Smart A/C Module
Smart Management Module
(Sold Separately)
Any loads, including central air conditioners, can be
managed using a Smart Management Module (SMM).
The system can accommodate up to eight individual
SMM modules.
NOTE: The SMM modules are self-contained and have
individual built-in controllers.
Figure 2-3. Smart Management Module
Application Considerations
Generator overload condition is determined by generator
frequency. Loads are shed when frequency is less than
58 Hz for three seconds or less than 50 Hz for ½ second
(for 60 Hz systems).
Automatic Transfer Switch Owner's Manual
T1
NEUTRAL
A/C 1
A/C 2
A
A/C 3
A/C 4
000802
000106
The Smart A/C Module can be used in conjunction with
individual Smart Management Modules (SMM) to
manage a combined total of eight loads.
• Use Priorities A/C 1-4 on the Smart A/C Module as
the top priorities, then up to four Smart Management
Modules as Priorities 5-8.
•
Use only select A/C priorities on the Smart A/C
Module as the top priorities, then use additional
Smart Management Modules as the remaining
priorities.
• A Smart Management Module can share a priority
with an A/C priority on the Smart A/C Module
provided the generator is sized to handle the
combined surge load from both appliances. Sharing
priorities can allow up to 12 loads to be managed in a
properly sized system.
In any combination of modules, the recovery times after a
loss of utility power or shutdown due to overload are
shown in Table 1.
Table 1. Priority Settings
Priority Recovery Time
1 5 minutes
2 5 minutes 15 seconds
3 5 minutes 30 seconds
4 5 minutes 45 seconds
5 6 minutes
6 6 minutes 15 seconds
7 6 minutes 30 seconds
8 6 minutes 45 seconds
Refer to the SMM Owner's/Installation Manual for
detailed characteristics and specifications of that product.
General Information
Smart
Smart A/C
Management
Module
Module
Yes Yes
Yes Yes
Yes Yes
Yes Yes
NA Yes
NA Yes
NA Yes
NA Yes
5
