user manual
AVC Multimedia,
Markham, Ontario, L3R 1E3
http: //www.1800customersupport.com/RCA
Read these instructions before using your new product for the fi rst time.
Disc formats
The unit can playback
DVDs
Audio CDs
[8cm/12cm disc]
[8cm/12cm disc]
Region management information
Region Management Information: This unit is designed and manufactured to respond to the Region
Management Information that is encoded on DVDs. If the region number printed on the DVD does not
correspond to the region number of this unit, it cannot play that disc.
The region number of this unit is 1.
Disc function or operation that is not available
When the
symbol appears on the screen, it indicates the function or operation attempted is not available at that
time. This occurs because the DVD manufacturer determines the specifi c functions of DVDs. Certain functions may
not be available on some DVDs. Be sure to read the documentation provided with the DVD.
Icons used on DVDs
Language selections for audio
Sample lcons
Language selections for subtitles
Note:
Screen aspect ratio
When playing back a CD-G (Graphics) or CD
EXTRA disc, the audio portion will be played,
Multiple camera angles
but the graphic images will not be shown.
1
Region code indicator
Title, chapter and tracks
DVDs are divided into "titles" and "chapters". If the disc
Title1
has more than one movie on it, each movie would be a
Chapter1
Chapter2
separate "title". "Chapters" are sections of titles.
Audio CDs are divided into "tracks". A "track" is usually
one song on an Audio CD.
Track1
Track2
Note: Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on
them, but some do not.
Notes on unauthorized discs
You may not be able to play some DVDs on this unit, particularly if they were purchased from outside your
geographic area or made for business purposes.
Power supply
A. Using the AC power adapter
The supplied AC power
1
adapter operates on AC
To AC power outlet
120V.
AC power adapter
2
To DC IN 9V-12V Jack
Cautions:
The AC power adapter included with this unit is for its use only. Do not use it with other equipment.
When the unit is not going to be used for long time, disconnect the AC power adapter from the AC power outlet.
When the AC power adapter is plugged in, the apparatus is not completely disconnected from the main
power supply, even when the power is turned off .
Warning:
The AC/DC adapter is used as a disconnect device and it should remain readily operable during intended use. In
order to disconnect the apparatus from the mains completely, the AC/DC adapter should be disconnected from
the outlet completely.
B. Using the car power adapter
The 12V car power adapter
1
allows the unit to be used
with vehicles that have
To cigarette
a 12V, negative ground
lighter socket
electrical system.
2
To DC IN 9V-12V Jack
Car power adapter
Warning:
Disconnect the car power
adapter when not in use.
Not for use in 24V vehicles.
Important safety instructions
1. Read these instructions.
13. Unplug this apparatus during lightning storms or
2. Keep these instructions.
3. Heed all warnings.
14. Refer all servicing to qualifi ed service personnel.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
DRC6327E
7. Do not block the ventilation openings. Install in
accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifi ers) that produce heat.
9. D o n o t d e f e a t t h e s a f e t y p u r p o s e o f t h e
polarized or grounding - type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
uninsulated "dangerous voltage" within the product's
consult an electrician for replacement of the
enclosure that may be of sufficient magnitude to
obsolete outlet.
cause an electric shock.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
maintenance (servicing) instructions in this owner's
the manufacturer.
manual.
12. Use only with a cart, stand, tripod,
* SEE BOTTOM OF UNIT FOR GRAPHIC SYMBOLS *
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used,
WARNING:
use caution when moving the cart/apparatus
Should any trouble occur, disconnect the AC power
combination to avoid injury from tip-over.
adapter and refer servicing to a qualifi ed technician.
Sound system
Dolby Digital
Compatible
Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital can
reproduce from one to 5.1 discrete channels of excellent quality audio.
The unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable for two-
channel listening. An additional Dolby Digital decoder is required for reproduction of the discrete multi-channel
soundtracks available on many DVDs.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Accessories
Please check and identify the supplied accessories.
AC Power Adapter.......................................................................................................................................................................x 1
Car Power Adapter......................................................................................................................................................................x 1
Title2
Chapter3
Chapter1
Chapter2
Track3
Track4
Track5
Cautions:
Use the provided 12V car power adapter only. Use with other car power adapters could damage the unit.
The 12V car power adapter included with this unit is for its use only. Do not use it with other equipment.
In the interest of traffi c safety, do not operate this unit or view videos while driving a vehicle.
Make sure the unit is securely fastened to prevent it from falling or fl ying through the air in the event of an
accident.
When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may become
hot due to poor contact. Be sure to clean the cigarette lighter socket before use.
After use, disconnect the 12V car power adapter from both the unit and cigarette lighter socket.
C. Using the built-in battery
The unit has a built-in, non-replaceable, rechargeable battery. Charge the built-in battery before using it for the
fi rst time. The normal charging time should be completed within 4-5 hours. The charging light will go out when
the built-in battery becomes fully charged.
To recharge the built-in battery
To AC power
1
outlet
AC power
adapter
To DC IN
2
9V-12V jack
Slide the switch
3
C h a rg i n g
4
to CHARGE
light ON
Safety precautions
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-
when unused for long periods of time.
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO
Servicing is required when the apparatus has
NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT.
been damaged in any way, such as power-supply
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
cord or plug is damaged, liquid has been spilled
SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
or objects have fallen into the apparatus, the
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR
apparatus has been exposed to rain or moisture,
EQUIVALENT TYPE.
does not operate normally, or has been dropped.
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
On placement
The lightning flash with an arrowhead
Do not use the unit in places that are extremely hot, cold, dusty, or humid.
symbol, within the equilateral triangle, is
Place the unit on a fl at and even surface.
intended to alert the user to the presence of
Do not restrict the air fl ow of the unit by placing it in a place with poor air fl ow, by covering it with a cloth,
or by placing it on carpeting.
To avoid magnetizing, do not place the unit near speakers or magnets.
Do not use this unit in direct sunlight or leave the unit in a closed automobile (or yacht, etc) where it
would be exposed to high temperatures above 104°F (40°C).
The exclamation point within the equilateral
No naked fl ame sources such as lighted candles should be placed on the AC power adapter or the main unit.
triangle is intended to alert the user to
The apparatus should not be exposed to splashing or dripping liquids, and no objects fi lled with liquids,
the presence of important operating and
such as vases, should be placed on apparatus.
On safety
When connecting or disconnecting the AC power adapter, grip the plug and not the cord itself. Pulling the
cord may damage it and create a hazard.
When you are not going to use the unit for a long period of time, disconnect the AC power adapter.
On condensation
When left in a heated room where it is warm and damp, water droplets or condensation may form inside the
unit. When there is condensation inside the unit, the unit may not function normally. Let the unit stand for 1
to 2 hours before turning the power on, or gradually heat the room and allow the unit to dry before use.
Control reference guide
Warnings:
The built-in battery can only be recharged when the unit is in CHARGE mode while using the AC power
adapter.
The built-in battery cannot be recharged when the unit is in ON mode.
Do NOT recharge the built-in battery in a vehicle using the car power adapter.
Batteries should not be exposed to excessive heat such as sunshine, fi re or the like.
Notes:
When the built-in battery power is low, "Battery Low" will display on the screen and the unit will stop playing.
Recharge the built-in battery when you are ready to use it again.
While using the built-in battery, the environmental temperature should be 41°F (5°C) to 95°F (35°C).
To get the longest service life of the built-in battery, charge at indoor-temperature.
The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not
o
disassemble, heat above 212
The unit should not be exposed to excessive heat such as sunshine, fi re or the like.
When discarding the unit, environmental problems must be considered and local rules or laws governing
the disposal of such products must be strictly followed.
Turning on the unit
1. Slide the CHARGE / STANDBY / ON switch on the left side of the unit to the ON
position.
2. The start-up picture will appear on the screen.
3. After use, slide the CHARGE / STANDBY / ON switch to the STANDBY (power off )
position.
Recharging is completed
5
when charging light goes
out
Ventilation warning
Do not block the ventilation openings or holes. If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to get out.
Do not operate the unit in a confi ned space, such as a bookcase or built-in cabinet. Allow about 4 inches
(10cm) of free space all around the unit for adequate ventilation.
Rating plate location
The rating plate is located on the bottom of unit.
FCC statements
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
This product contains a
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
low power laser device.
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifi cations to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Notes on copyright
It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material
without permission.
Apparatus Claims of U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132 and 5,583,936 licensed for limited
viewing uses only.
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.

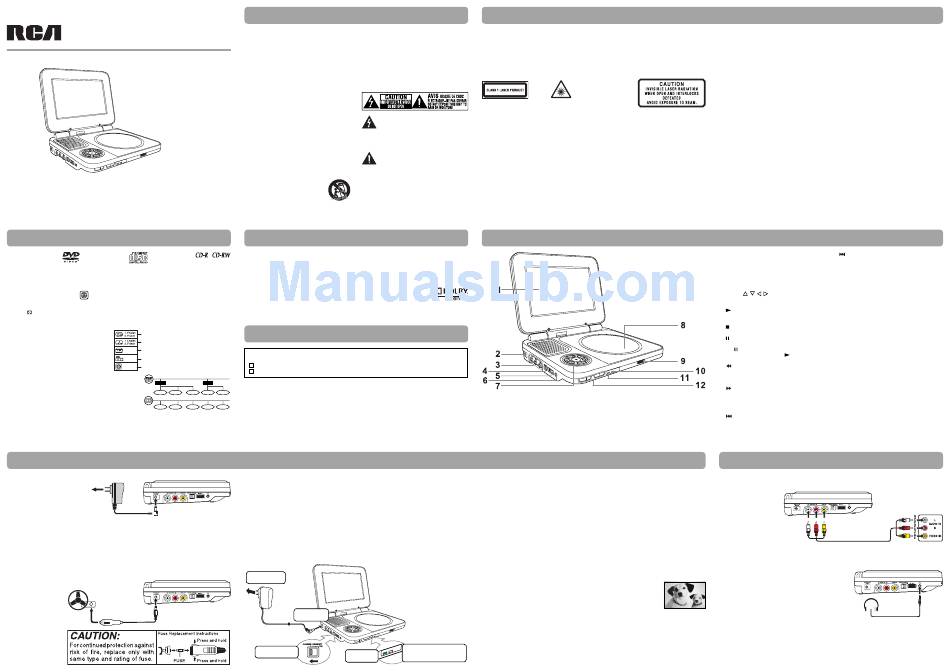

1) LCD screen
2) DC IN 9V - 12V jack
3) AUDIO / VIDEO OUT jacks
4) CHARGE / STANDBY(power off ) / ON switch
5) VOL control
Adjusts the volume.
6) Headphone jack
7) Cursor (
Highlights selections on a menu screen and
adjusts certain settings.
Starts or resumes playback of a disc.
Confi rms selections on a menu screen.
Stops playing a disc.
Pauses playback of a disc. Each time you press
the
frame on a DVD. Press the
resume playback.
Press to perform fast reverse playback on a DVD.
Press and hold to perform fast reverse playback
on an Audio CD.
Press to perform fast forward playback on a
DVD.
Press and hold to perform fast forward playback
on an Audio CD.
Press to go back to the previous chapters on a
DVD.
Press and hold to skip to the previous tracks/
JPEG pictures on an Audio CD/JPEG disc.
Connections
A. Connecting a TV
If your TV has audio/video inputs, you can connect the unit to your TV using a standard Audio/Video cables.
Watching a DVD on your TV
o
F (100
C), or incinerate.
1. Turn on the unit.
2. Turn on the TV and follow the instructions included with it to play the DVD.
B. Using headphones/earphones
Turn down the volume before connecting, and then adjust
the level.
When headphones/earphones are connected, no sound will
be emitted from the unit's speaker.
Caution:
Avoid listening to sound at levels which may be harmful to your
ears.
NEXT button
Press to advance chapters on a DVD.
Press and hold to skip to the next tracks/JPEG
pictures on an Audio CD/JPEG disc.
8) Disc door
Close tray by pushing the disc door.
9) Open knob
,
,
,
) buttons
10) Power ON indicator
11) CHARGING indicator
Charge the rechargeable battery before using
PLAY button
it for the first time. The normal charging time
should be completed in approximately 4-5 hours.
The charging light will go out when the battery
STOP button
becomes fully charged.
12) SETUP button
PAUSE button
Opens and closes the SETUP menu while in stop
mode.
PAUSE button the picture advances one
Adjusts Brightness, Panel Display or Contrast of the
PLAY button to
LCD screen while in playback mode.
AUDIO button
SEARCH button
Selects one of the audio sound tracks programmed
on a DVD or selects the audio output mode on an
Audio CD.
SUBTITLE button
SEARCH button
Selects one of the subtitle languages programmed
on a DVD.
MENU button
Opens and closes the DVD menu.
PREV button
White Red Yellow
To AUDIO / VIDEO OUT jacks
Audio / Video cable
(not included)
Headphones/Earphones
(3.5mm diameter plug)
TV

Advertisement

loading

  Related Manuals for RCA DRC6327E - 7" Portable DVD Player

  Summary of Contents for RCA DRC6327E - 7" Portable DVD Player

  • Page 1 This product incorporates copyright protection technology that is protected by U.S. patents and other apparatus. When a cart is used, WARNING: http: //www.1800customersupport.com/RCA On condensation intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and...
  • Page 2 Customer Support Center at 1-800-506-5746, 1-877-252-6873 or AVC products purchased in the United States are warranted to be free from defects in materials or workmanship www.1800customersupport.com/RCA Type of set ................Serial no..................No sound or only •...

This manual is also suitable for:

Drc6327ep
