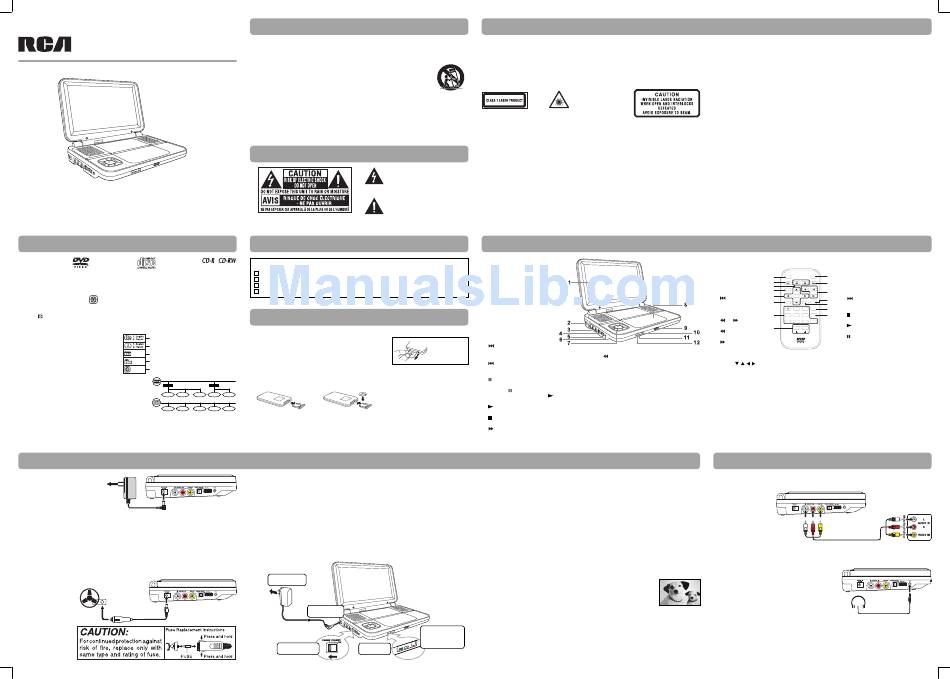

RCA DRC6309 User Manual

user manual
AVC Multimedia,
Markham, Ontario, L3R 1E3
http: //www.RCAav.com
Read these instructions before using your new product for the fi rst time.
Disc Formats
The unit can play back DVDs
Audio CDs
[8cm/12cm disc]
[8cm/12cm disc]
Region Management Information
Region Management Information: This unit is designed and manufactured to respond to the Region
Management Information that is encoded on DVDs. If the region number printed on the DVD does not
correspond to the region number of this unit, it cannot play that disc.
The region number of this unit is 1.
Disc Function or Operation That is Not Available
When the symbol appears on the screen, it indicates the function or operation attempted is not available at that
time. This occurs because the DVD manufacturer determines the specifi c functions of DVDs. Certain functions may
not be available on some DVDs. Be sure to read the documentation provided with the DVD.
Icons Used on DVDs
Language selections for audio
Sample lcons
Language selections for subtitles
Note:
Screen aspect ratio
When playing back a CD-G (Graphics) or CD
EXTRA disc, the audio portion will be played, Multiple camera angles
but the graphic images will not be shown.
1 Region code indicator
Titles, Chapters and Tracks
• DVDs are divided into "titles" and "chapters". If the disc Title1
has more than one movie on it, each movie would be a
Chapter1 Chapter2 Chapter3
separate "title". "Chapters" are sections of titles.
• Audio CDs are divided into "tracks". A "track" is usually
one song on an Audio CD.
Track1 Track2 Track3
Note: Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on
them, but some do not.
Notes on Unauthorized Discs
You may not be able to play some DVDs on this unit, particularly if they were purchased from outside your
geographic area or made for business purposes.
E - 4
Power Supply
A. Using the AC Power Adapter
1
The supplied AC power
adapter operates on AC
To wall outlet
100-120V.
AC power adapter
2
To DC IN 9V Jack
Cautions:
• The AC power adapter included with this unit is for its use only. Do not use it with other equipment.
• When the unit is not going to be used for long time, disconnect the AC power adapter from the wall outlet.
• When the AC power adapter is plugged in, the apparatus is not completely disconnected from the main
power supply, even when the power is turned off .
Warning:
The power adapter is used as a disconnect device and it should remain readily operable during intended use. In
order to disconnect the apparatus from the mains completely, the power adapter should be disconnected from
the outlet completely.
B. Using the Car Power Adapter
The 12V car power adapter
allows the unit to be used
1
with vehicles that have
a 12V, negative ground To cigarette
lighter socket
electrical system.
2
To DC IN 9V Jack
Car power adapter
Warning:
Disconnect the car power
adapter when not in use.
Not for use in 24V vehicles.
E -8
Important Safety Instructions
1. Read these instructions. receptacles, and the point where they exit from
2. Keep these instructions. the apparatus.
3. Heed all warnings. 11. Only use attachments/accessories specifi ed by the
4. Follow all instructions. manufacturer.
5. Do not use this apparatus near water. 12. Use only with a cart, stand,
6. Clean only with a dry cloth. t r i p o d , b r a c k e t , o r t a b l e
DRC6309
7. Do not block the ventilation openings. Install in specifi ed by the manufacturer,
accordance with the manufacturer's instructions. or sold with the apparatus.
8. Do not install near any heat sources such as W h e n a c a r t i s u s e d , u s e
radiators, heat registers, stoves, or other apparatus caution when moving the
(including amplifi ers) that produce heat. cart/apparatus combination to
9. Do not defeat the safety purpose of a polarized avoid injury from tip-over.
or grounding - type plug. A polarized plug has 13. Unplug this apparatus during lightning storms or
two blades with one wider than the other. A when unused for long periods of time.
grounding type plug has two blades and a third 14. Refer all servicing to qualified service personnel.
grounding prong. The wide blade or the third Servicing is required when the apparatus has
prong are provided for your safety. If the provided been damaged in any way, such as the AC power
plug does not fit into your outlet, consult an cord or plug is damaged, liquid has spilled
electrician for replacement of the obsolete outlet. or objects have fallen into the apparatus, the
10. Protect the power cord from being walked on apparatus has been exposed to rain or moisture,
or pinched particularly at plugs, convenience does not operate normally, or has been dropped.
Safety Precautions
voltage" within the product's enclosure that may be
of suffi cient magnitude to cause an electric shock.
* SEE BOTTOM OF UNIT FOR GRAPHIC SYMBOLS *
WARNING: Should any trouble occur, disconnect the AC power adapter and refer servicing to a qualifi ed technician.
E - 1
Accessories
Please check and identify the supplied accessories.
Compatible
Remote Control (with battery) ...............................................................................................................................................x 1
AC Power Adapter.......................................................................................................................................................................x 1
Car Power Adapter......................................................................................................................................................................x 1
Carrying Bag..................................................................................................................................................................................x 1
Remote Control
Using the Remote Control
• Point the remote control at the REMOTE SENSOR located
on the unit.
• When using this unit in very bright light, the infrared
REMOTE SENSOR may not work properly.
To Change Remote Battery
1. Open the battery door. 2. Insert one CR2025 (3V )
Title2
size battery.
Chapter1 Chapter2
Track4 Track5
Note: If the remote control is not going to be used for a long time, remove the battery.
WARNING: Do not dispose of the battery in a fi re or it may leak and/or explode.
WARNING: Batteries should not be exposed to excessive heat such as sunshine, fi re or the like.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
E - 5
Cautions:
• Use the provided 12V car power adapter only. Use with other car power adapters could damage the unit.
• The 12V car power adapter included with this unit is for its use only. Do not use it with other equipment.
• In the interest of traffi c safety, do not operate this unit or view videos while driving a vehicle.
• Make sure the unit is securely fastened to prevent it from falling or fl ying through the air in the event of an
accident.
• When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may become
hot due to poor contact. Be sure to clean the cigarette lighter socket before use.
• After use, disconnect the 12V car power adapter from both the unit and cigarette lighter socket.
C. Using the Built-in Battery
The unit has a built-in, non-replaceable, rechargeable battery. Charge the built-in battery before using it for the
fi rst time. The normal charging time should be completed within 4-5 hours. The charging light will go out when
the built-in battery becomes fully charged.
To recharge the built-in battery
To AC power
1
outlet
AC power
adapter
To DC IN 9V
2
jack
C h a rg i n g
Slide the switch
3 4
to CHARGE light ON
E - 9
Safety Precautions
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO
NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR
EQUIVALENT TYPE.
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
On Placement
• Do not use the unit in places that are extremely hot, cold, dusty, or humid.
• Place the unit on a fl at and even surface.
• Do not restrict the air fl ow of the unit by placing it in a place with poor air fl ow, by covering it with a cloth,
or by placing it on carpeting.
• To avoid magnetizing, do not place the unit near speakers or magnets.
• Do not use this unit in direct sunlight or leave the unit in a closed automobile (or similar environments)
where it would be exposed to high temperatures above 104°F (40°C).
• No naked fl ame sources such as lighted candles should be placed on the AC power adapter or the main unit.
The lightning flash with an arrowhead
• The apparatus should not be exposed to splashing or dripping liquids, and no objects fi lled with liquids,
symbol, within the equilateral triangle,
such as vases, should be placed on apparatus.
is intended to aler t the user to the
presence of uninsulated "dangerous On Safety
• When connecting or disconnecting the AC power adapter, grip the plug and not the cord itself. Pulling the
cord may damage it and create a hazard.
T h e e xc l a m a t i o n p o i n t w i t h i n t h e
• When you are not going to use the unit for a long period of time, disconnect the AC power adapter.
equilateral triangle is intended to alert
On Condensation
the user to the presence of important
operating and maintenance (servicing) • When left in a heated room where it is warm and damp, water droplets or condensation may form inside the
instructions in this owner's manual. unit. When there is condensation inside the unit, the unit may not function normally. Let the unit stand for 1
to 2 hours before turning the power on, or gradually heat the room and allow the unit to dry before use.
Control Reference Guide
Unit
1. LCD screen
2. DC IN 9V - 12V jack
3. AUDIO / VIDEO OUT jack
4. CHARGE / STANDBY / ON switch
5. VOLUME control
Adjusts the volume.
6. Headphone jack
Remove the
7. NEXT button
PLASTIC sheet
Press to advance titles / chapters /
before USING the
tracks.
Remote Control.
PREV button
Press to go back to the previous titles / chapters
/ tracks.
Battery Replacement
PAUSE button
When the batter y becomes weak ,
Press to pause playback of a disc. Each time you
the operating distance of the remote
press the PAUSE button the picture advances
control will be greatly reduced and you
one frame on DVD. Press the PLAY button to
will need to replace the battery.
resume playback.
PLAY button
Press to start or resume playback of a disc.
STOP button
Press to stop playing a disc.
SEARCH button
Press to perform fast forward playback.
Warnings:
• The built-in battery can only be recharged when the unit is in CHARGE mode while using the AC power
adapter.
• The built-in battery cannot be recharged when the unit is in ON mode.
• Do NOT recharge the built-in battery in a vehicle using the car power adapter.
• Batteries should not be exposed to excessive heat such as sunshine, fi re or the like.
Notes:
• When the built-in battery power is low, "Battery Low" will display on the screen and the unit will stop playing.
• Recharge the built-in battery when you are ready to use it again.
• While using the built-in battery, the environmental temperature should be 41°F (5°C) to 95°F (35°C).
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not
o o
disassemble, heat above 212 F (100 C), or incinerate.
• The unit should not be exposed to excessive heat such as sunshine, fi re or the like.
• When discarding the unit, environmental problems must be considered and local rules or laws governing
the disposal of such products must be strictly followed.
Turning on the Unit
1. Slide the CHARGE / STANDBY / ON switch on the left side of the unit to the ON
position.
2. The start-up picture will appear on the screen.
3. After use, slide the CHARGE / STANDBY / ON switch to the STANDBY (power off )
position.
R e c h a r g i n g i s
5
completed when
charging light
goes out
Ventilation Warning
• Do not block the ventilation openings or holes. If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to get out.
• Do not operate the unit in a confi ned space, such as a bookcase or built-in cabinet. Allow about 4 inches
(10cm) of free space all around the unit for adequate ventilation.
Rating Plate Location
• The rating plate is located on the bottom of unit.
FCC Statements
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
This product contains a
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
low power laser device.
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifi cations to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Notes on Copyright
It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material
without permission.
Apparatus Claims of U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132 and 5,583,936 licensed for limited
viewing uses only.
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
E - 2
Remote Control
1. VIDEO MODE button
Ad j u s t B r i g h t n e s s,
Pa n e l D i s p l a y a n d
Contrast of the LCD
screen.
2. PREV button
Move back through
t i t l e s , c h a p t e r s o r
tracks on a disc.
3. / S E A R C H
buttons
S E A R C H : F a s t
reverse playback.
S E A R C H : F a s t
forward playback.
4. GOTO button
SEARCH button
Skip directly to a location on a CD/DVD.
Press to perform fast reverse playback.
5. Cursor ( , , , ) buttons
8. Disc Door
Move between selections on a menu screen and adjust
Push to close the disc door.
certain settings.
9. OPEN knob
ENTER button
Slide the open knob rightwards to open the disc
Confi rm selections on a menu screen.
door.
6. MEMORY button
10. Remote sensor
Set titles/chapters in a favorite order.
Receives the remote control unit signals.
7. Number (0 - 9) buttons
11. ON indicator
Use when creating programs or locating a title/chapter/
12. CHARGING indicator
track or specifi c time.
Charge the rechargeable battery before using
8. REPEAT A-B button
it for the first time. The normal charging time
Perform point-to-point repeat playback on a DVD or CD.
should be completed in approximately 4-5 hours.
REPEAT DISC button
The charging light will go out when the battery
Repeat a DVD chapter or title.
becomes fully charged.
Repeat a CD track or the whole disc.
E - 6
Connections
A. Connecting a TV
If your TV has audio/video inputs, you can connect the unit to your TV using standard Audio/Video cables.
To AUDIO / VIDEO OUT jacks
Watching a DVD on your TV
1. Turn on the unit.
2. Turn on the TV and follow the instructions included with it to watch video from external sources.
B. Using Headphones/Earphones
• Turn down the volume before connecting, and then adjust
the level.
• When headphones/earphones are connected, no sound will
be emitted from the unit's speaker.
Caution:
Avoid listening to sound at levels which may be harmful to your
ears.
E - 10
E - 3
SETUP button
VIDEO
MODE MENU 9
1 In Stop Mode, press to display the unit's
2
PREV SEARCH NEXT 10 SETUP menu.
3
9. MENU button
GOTO STOP PAUSE
4
11
Enter and exit the main DVD menu.
PLAY
5
ENTER
10. NEXT button
12
MEMORY ANGLE DISPLAY
6
M 13 Move forward through titles, chapters or
AUDIO
14
2 3 tracks on a disc.
SUBTITLE/
7 RETURN 15 11. STOP button
4 5 6
Stop playing a disc.
7 8 9 0
PLAY button
SETUP
8
A-B DISC Start or resume playback of a disc.
REPEAT
PAUSE button
Pre s s o n ce to p a u s e p l ay b a c k . Pre s s
subsequently to advance frame by frame
on a DVD.
12. DISPLAY button
Show status information on the screen.
13. ANGLE button
Switch between multiple camera angles if
applicable to the DVD.
14. AUDIO button
Select one of the audio sound tracks on
a DVD (if more than one is available) or
select the audio output mode on a CD.
15. SUBTITLE button
S elec t one of the subtitle languages
programmed on a DVD (if available).
RETURN button
Return to normal operation after using the
SETUP menu of a DVD.
E - 7
TV
White Red Yellow
Audio / Video cable
(not included)
Headphones/Earphones
(3.5mm diameter plug)
E - 11
