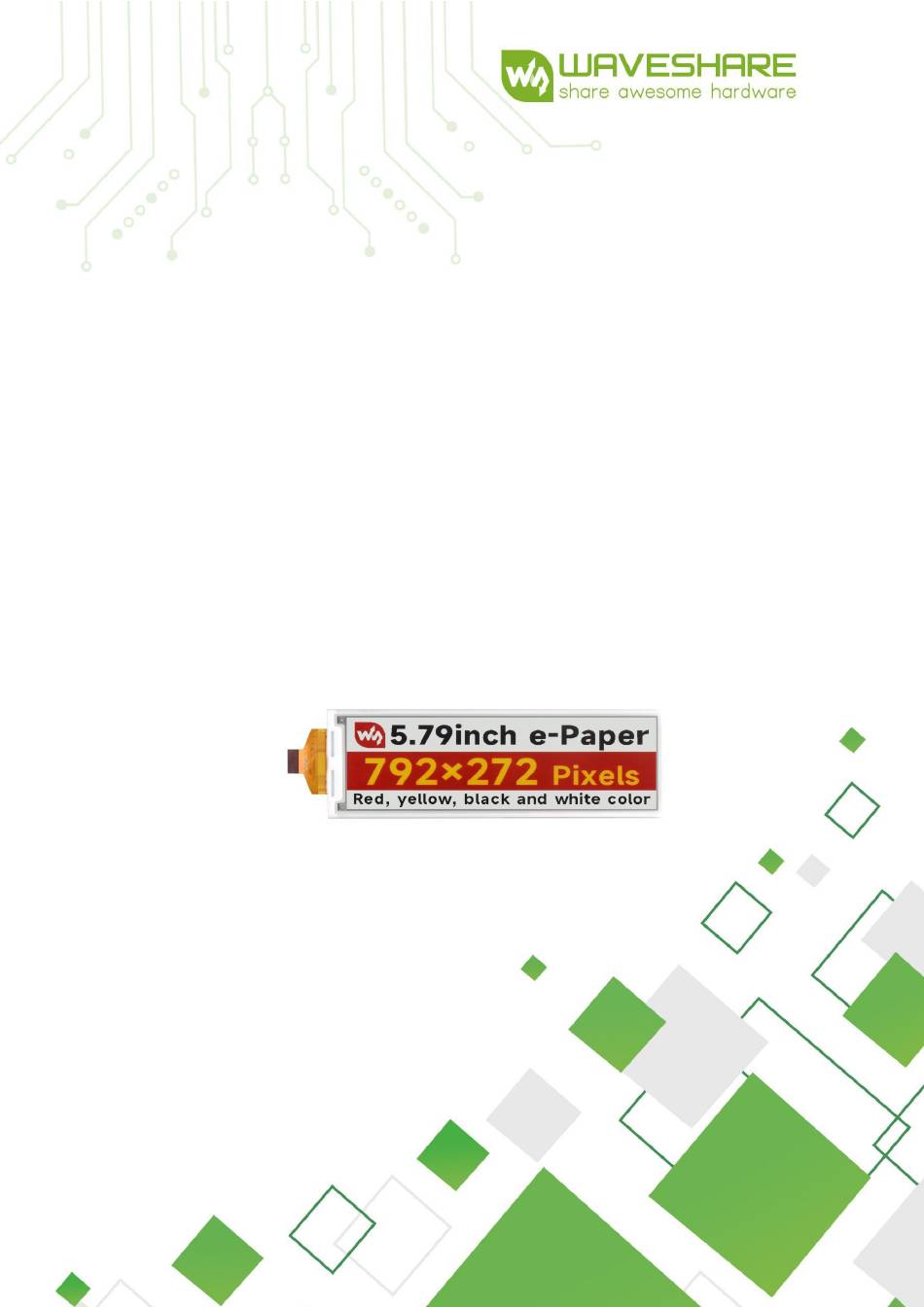

- Page 1 5.79inc h e-Paper (G) User Manual 5.79inch e-Paper (G) User Manual www.waveshare.com/wiki...
- Page 2 5.79inch e-Paper (G) User Manual Revision History Version Content Date Page New creation 2024/7/10...
-
Page 3: Table Of Contents
5.79inch e-Paper (G) User Manual Contents 1. OVERVIEW ................................1 2. FEATURES ................................2 3. MECHANICAL SPECIFICATION ..........................3 4. MECHANICAL DRAWING OF EPD MODULE ......................4 5. INPUT/OUTPUT PIN ASSIGNMENT ........................5 6. ELECTRICAL CHARACTERISTICS .......................... 7 6.1 Absolute Maximum Rating ........................7 6.2 DC Characteristics ............................ -
Page 4: Overview
5.79inch e-Paper (G) User Manual 1. OVERVIEW 5.79 inch e-Paper (G) is a reflective electrophoretic technology display module on an active matrix TFT substrate. The panel is capable of displaying black, white, yellow and red images depending on the associated lookup table used. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, and memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM and BORDER settings. -
Page 5: Features
5.79inch e-Paper (G) User Manual 2. FEATURES Highlight Red and Yellow color High contrast High reflectance Ultra wide viewing angle Ultra low power consumption Pure reflective mode Bi-stable display Antiglare hard-coated front-surface ... -
Page 6: Mechanical Specification
5.79inch e-Paper (G) User Manual 3. MECHANICAL SPECIFICATION Parameter Specification Unit Remark Screen Size 5.79 Inch Display Resolution 272(H) x 792(V) Pixel DPI:144 Active Area 47.74 x 139.00 Pixel Pitch 0.1755 x 0.1755 Pixel Configuration Rectangle Outline Dimension 56.94 (H) × 150.92(V) × 1.0(D) Weight 15.7±0.5... -
Page 7: Mechanical Drawing Of Epd Module
5.79inch e-Paper (G) User Manual 4. MECHANICAL DRAWING OF EPD MODULE WAVESHARE... -
Page 8: Input/Output Pin Assignment
5.79inch e-Paper (G) User Manual 5. INPUT/OUTPUT PIN ASSIGNMENT Name Description Remark Do not connect with other NPC pins Keep Open N-Channel MOSFET Gate Drive Control RESE Current Sense Input for the Control Loop Do not connect with other NC pins Keep Open VSH2 Positive Source driving voltage(Red) - Page 9 5.79inch e-Paper (G) User Manual communication only when CS# is pulled LOW. Note 5-2: This pin is (D/C#) Data/Command control pin connecting to the MCU in 4-wire SPI mode. When the pin is pulled HIGH, the data at SDA will be interpreted as data. When the pin is pulled LOW, the data at SDA will be interpreted as command.
-
Page 10: Electrical Characteristics
5.79inch e-Paper (G) User Manual 6. ELECTRICAL CHARACTERISTICS 6.1 ABSOLUTE MAXIMUM RATING Parameter Symbol Rating Unit Logic supply voltage -0.3 to +5.0 Logic Input voltage -0.3 to VCI +0.3 Logic Output voltage VOUT -0.5 to VCI +0.5 Operating Temp range TOPR 0 to +40 ºC... -
Page 11: Dc Characteristics
5.79inch e-Paper (G) User Manual 6.2 DC CHARACTERISTICS Applicable Parameter Symbol Condition Min. Typ. Max. Unit Single ground IO supply voltage Supply voltage High level input 0.8VCI voltage Low level input 0.2VCI voltage High level output IOH = 400uA 0.8VCI voltage Low level output IOL = -400uA... -
Page 12: Ac Characteristics
2. The deep sleep power is the consumed power when the panel controller is in deep sleep mode. 3. The listed electrical/optical characteristics are only guaranteed under the controller & waveform provided by Waveshare. 3. Electrical measurement：Multimeter 6.3 AC CHARACTERISTICS 6.3.1 DISPLAY AC CHARACTERISTICS... - Page 13 5.79inch e-Paper (G) User Manual 3-wire serial internal characteristics (read mode) 6.3.3 4-WIRE AC CHARACTERISTICS 4-wire serial internal characteristics (Write mode)
- Page 14 5.79inch e-Paper (G) User Manual 4-wire serial internal characteristics (Read mode)
-
Page 15: Command Table
5.79inch e-Paper (G) User Manual 7. COMMAND TABLE... - Page 16 5.79inch e-Paper (G) User Manual...
- Page 17 5.79inch e-Paper (G) User Manual...
- Page 18 5.79inch e-Paper (G) User Manual...
- Page 19 5.79inch e-Paper (G) User Manual...
- Page 20 5.79inch e-Paper (G) User Manual...
- Page 21 5.79inch e-Paper (G) User Manual...
- Page 22 5.79inch e-Paper (G) User Manual...
- Page 23 5.79inch e-Paper (G) User Manual...
- Page 24 5.79inch e-Paper (G) User Manual...
- Page 25 5.79inch e-Paper (G) User Manual...
- Page 26 5.79inch e-Paper (G) User Manual...
- Page 27 5.79inch e-Paper (G) User Manual...
-
Page 28: Optical Specifications
5.79inch e-Paper (G) User Manual 8. OPTICAL SPECIFICATIONS Measurements are made with that the illumination is under an angle of 45 degree, the detection is perpendicular unless otherwise specified. Symbol Parameter Conditions Min Typ. Units Notes White Reflectivity White 8- 1 Contrast Ratio Indoor T update... -
Page 29: Handling, Safety, And Environment Requirements
5.79inch e-Paper (G) User Manual 9. HANDLING, SAFETY, AND ENVIRONMENT REQUIREMENTS WARNING The display glass may break when it is dropped or bumped on a hard surface. Handle with care. Should the display break, do not touch the electrophoretic material. In case of contact with electrophoretic material, wash with water and soap. -
Page 30: Reliability Test
5.79inch e-Paper (G) User Manual 10. RELIABILITY TEST Test items Test condition T = -25°C, 240 h Low-Temperature Storage Test in white pattern T=+60ºC, RH=35%, 240h High-Temperature Storage Test in white pattern High-Temperature Operation T=40ºC, RH=35%, 240h Low-Temperature Operation 0ºC, 240h High Temperature T=40ºC , RH=80%, 240h High Humidity Operation... -
Page 31: Reference Circuit
5.79inch e-Paper (G) User Manual 11. REFERENCE CIRCUIT... -
Page 32: Typical Application Circuit
5.79inch e-Paper (G) User Manual 12. TYPICAL APPLICATION CIRCUIT Remarks: 1) The recommended component value and reference part in Table is subject to change depending on panel loading. 2) Customer is required to review if the selected component value and part is suitable for their application. -
Page 33: Initialization Procedure
5.79inch e-Paper (G) User Manual 13. INITIALIZATION PROCEDURE 14. INSPECTION METHOD AND CONDITION 14.1 INSPECTION CONDITION Item Condition Illuminance 800~ 1500 lux Temperature 22℃±3℃ Humidity 55±10 %RH Distance ≥30cm Angle Vertical fore and aft 45 Inspection method By eyes 14.2 ZONE DEFINITION A Zone: Active area B Zone: Border zone C Zone: From B zone edge to panel edge... -
Page 34: General Inspection Standards For Products
5.79inch e-Paper (G) User Manual 14.3 GENERAL INSPECTION STANDARDS FOR PRODUCTS 14.3.1 APPEARANCE INSPECTION STANDARD... - Page 35 5.79inch e-Paper (G) User Manual...
- Page 36 5.79inch e-Paper (G) User Manual...
-
Page 37: Packaging
5.79inch e-Paper (G) User Manual 15. PACKAGING...
