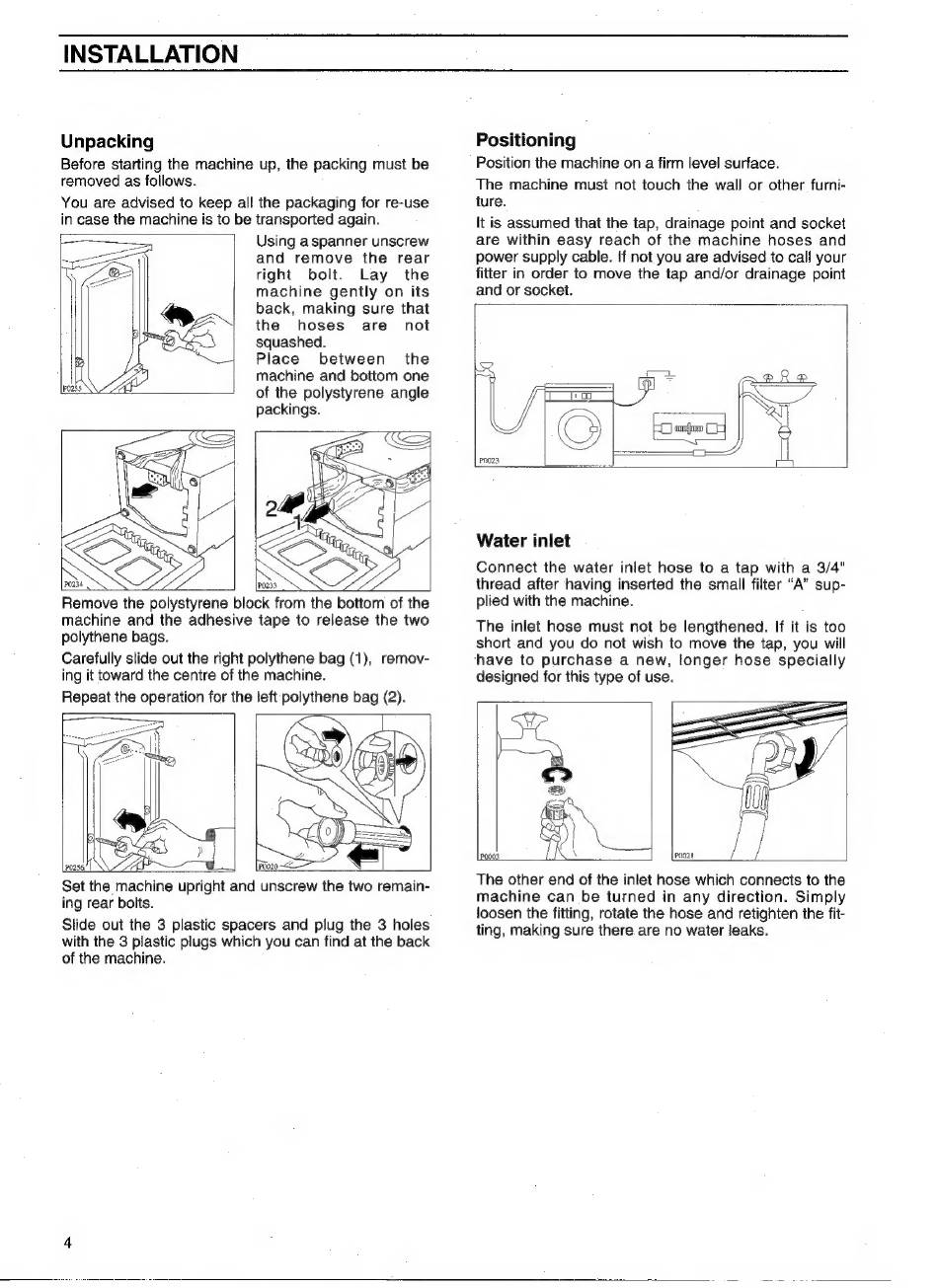

Zanussi FJS 904 CV Instruction Booklet page 4

INSTALLATION
Unpacking
Before starting the machine up, the packing must be
removed as follows.
You are advised to keep all the packaging for re-use
in case the machine is to be transported again.
Using aspanner unscrew
and remove the rear
right bolt. Lay the
machine gently on its
back, making sure that
the hoses are not
squashed.
Place between the
machine and bottom one
of the polystyrene angle
packings.
Positioning
Position the machine on a firm level surface.
The machine must not touch the wall or other furni-
ture.
It is assumed that the tap, drainage point and socket
are within easy reach of the machine hoses and
power supply cable. If not you are advised to call your
fitter in order to move the tap and/or drainage point
and or socket.
Remove the polystyrene block from the bottom of the
machine and the adhesive tape to release the two
polythene bags.
Carefully slide out the right polythene bag (1), remov-
ing it toward the centre of the machine.
Repeat the operation for the left polythene bag (2).
Set the machine upright and unscrew the two remain-
ing rear bolts.
Slide out the 3 plastic spacers and plug the 3 holes
with the 3 plastic plugs which you can find at the back
of the machine.
Water inlet
Connect the water inlet hose to a tap with a 3/4"
thread after having inserted the small filter "A" sup-
plied with the machine.
The inlet hose must not be lengthened. If it is too
short and you do not wish to move the tap, you will
have to purchase a new, longer hose specially
designed for this type of use.
P0003,
The other end of the inlet hose which connects to the
machine can be turned in any direction. Simply
loosen the fitting, rotate the hose and retighten the fit-
ting, making sure there are no water leaks.
