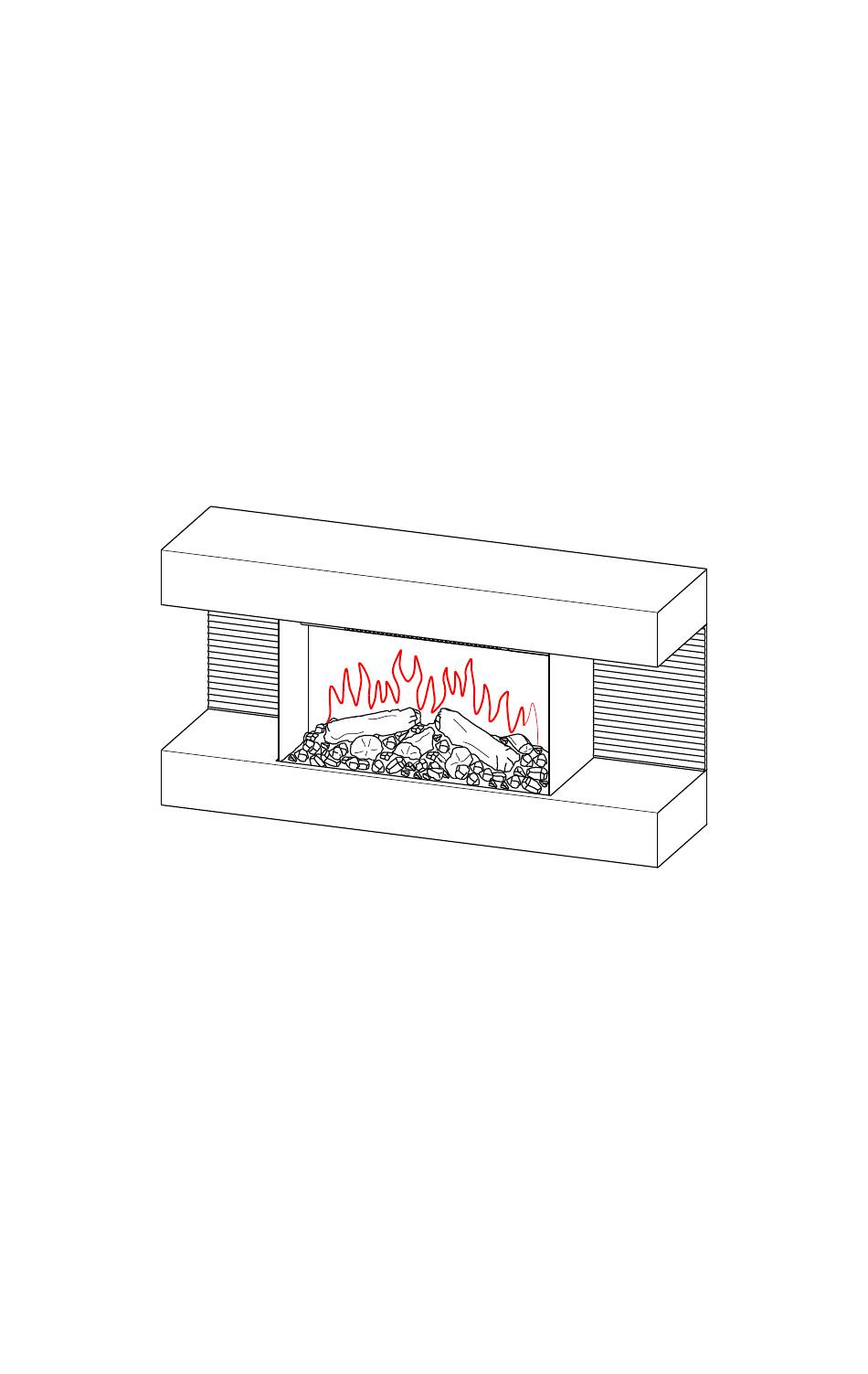

- Page 1 ELECTRIC FIREPLACE INSTRUCTION MANUAL M O DEL N O .:EF4 63 A /EF464A PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND USING APPLIANCE. SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Read all of the instruc ons before using this Ÿ appliance. For indoor use only. This appliance is not suitable Ÿ for use outside the house and only suitable for well insulated spaces or occasional use. DO NOT use this appliance in the immediate Ÿ... - Page 4 Keep the power cord away from hot surfaces and Ÿ hot condi ons. DO NOT route the power lead in front of the appliance. To reduce the risk of fire, keep tex les, curtains, or Ÿ any other flammable material a minimum distance of 1 meter from the air outlet.
- Page 5 been placed or installed in its intended normal opera ng posi on and instruc ons and supervision concerning the safe usage of the appliance are given. Cleaning and user maintenance shall not be made Ÿ by children without supervision. This appliance shall not be played with by children. Ÿ...
-
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL NO.: EF463A/EF464A Supply Voltage: AC 230-240V 50Hz Maximum power consump on: 1.8KW Power for flame effect:5W HEAT OUTPUT: Nominal heat output (Pnom): 1.8KW Minimum heat output (indica ve) (Pmin): 1.8KW Maximum con nuous heat output (Pmax): 1.8KW AUXILIARY ELECTRICITY CONSUMPTION: At nominal heat output (elmax): 15.5W... -
Page 7: Parts And Hardware
PARTS AND HARDWARE Unpack the fire carefully, make sure that the appliance is intact with no Ÿ signs of damage caused by transport and that no parts have been exposed to water. If in doubt, do not use the appliance and contact an authorized service center. -
Page 8: Appliance Dimensions
APPLIANCE DIMENSIONS Unit:mm M O D E L EF463A 1120 EF464A INSTALLATION INSTRUCTIONS TOOLS REQUIRED Drilling machine, hammer and screwdriver 1. SETTING UP THE APPLIANCE Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a loca on, ensure that the general instruc ons are followed. -
Page 9: Minimum Clearance To Combustible
MINIMUM CLEARANCE TO COMBUSTIBLE Sides......0 Floor......0 M i n 0 Back......0 op (Mantel or TV) ..0mm Minimum Bottom ......0mm Minimum Front......100cm Minimum M i n 0 2. Remove the wall bracket 3. Secure the wall bracket to the wall Place the wall mounted bracket in the desired posi on ensuring that the bracket is level. - Page 10 4. Mark the posi on for bo om fixing brackets the appliance up and a ach to the wall bracket, mark the hole posi on of the two bo om fixing brackets, take the appliance down, drill holes on the marks and then insert wall plugs into it .
- Page 11 5. A ach the appliance on the bracket and secure OPERATING INSTRUCTION 1. GENERAL WARNING! Do not operate the appliance if it is damaged or has malfunc oned. If you suspect the appliance is damaged or has malfunc oned, call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before re-use.
-
Page 12: Manual Control Panel
The appliance can be operated conveniently in 2 different ways: manually or via the remote control handset. 2. MANUAL CONTROL PANEL NOTE: The manual bu ons control basic func ons, not a full range of Ÿ controls. Use the remote handset to carry out all func ons. STAND-BY 1. -
Page 13: Remote Control
3.REMOTE CONTROL STAND BY AMBIENT LIGHT FLAME TEMPERATURE HEATER 7 DAYS TIMER TIMER TIME ENTER Icon Title Func on Fireplace Response Press to turn on or turn The flame runs. off the flame effects and T h e c u r r e n t fl a m e STANDY BY heater. - Page 14 The number 30, 1H, 2H, Repeatedly press to cycle 3H, 4H, 5H, 6H, 7H, 8H, t h ro u g h m e r o p o n s . 9H, 0H will show on the Select an amount of me display.
- Page 15 Set Up Current Day and Time Hold me bu on on the remote to enter date and me se ng mode; Repeatedly press me bu on to select date, D1-D7 will show on the display which represents Monday-Sunday. Press bu on to confirm, and then automa cally enter hour se ng.
-
Page 16: Maintenance
The appliance is fi ed with an Electronic Safety Control (E.S.). This is a safety device which switches off the fire if, for any reason, the appliance overheats, e.g. when covered. If the heater stops opera ng while the flame effect con nues working normally, this indicates that the E.S. - Page 17 DISPOSAL Meaning of crossed-out wheeled dustbin: Electrical appliances should not be disposed as unsorted municipal waste. Separate collec on facili es should be used in the disposal of electrical appliances. To have this appliance processed at the end of its useful life please contact WEEE Care Plc on 0844 8002004.The relevant producer number is WEE/MM3069AA.
- Page 20 Distributor: Moddelo Ltd Unit 6A-6E, Airfield Industrial Estate, Hixon,Staffordshire,ST18 0PF Tel: 01785 719005 Email: customerservice@moddelo.co.uk...
