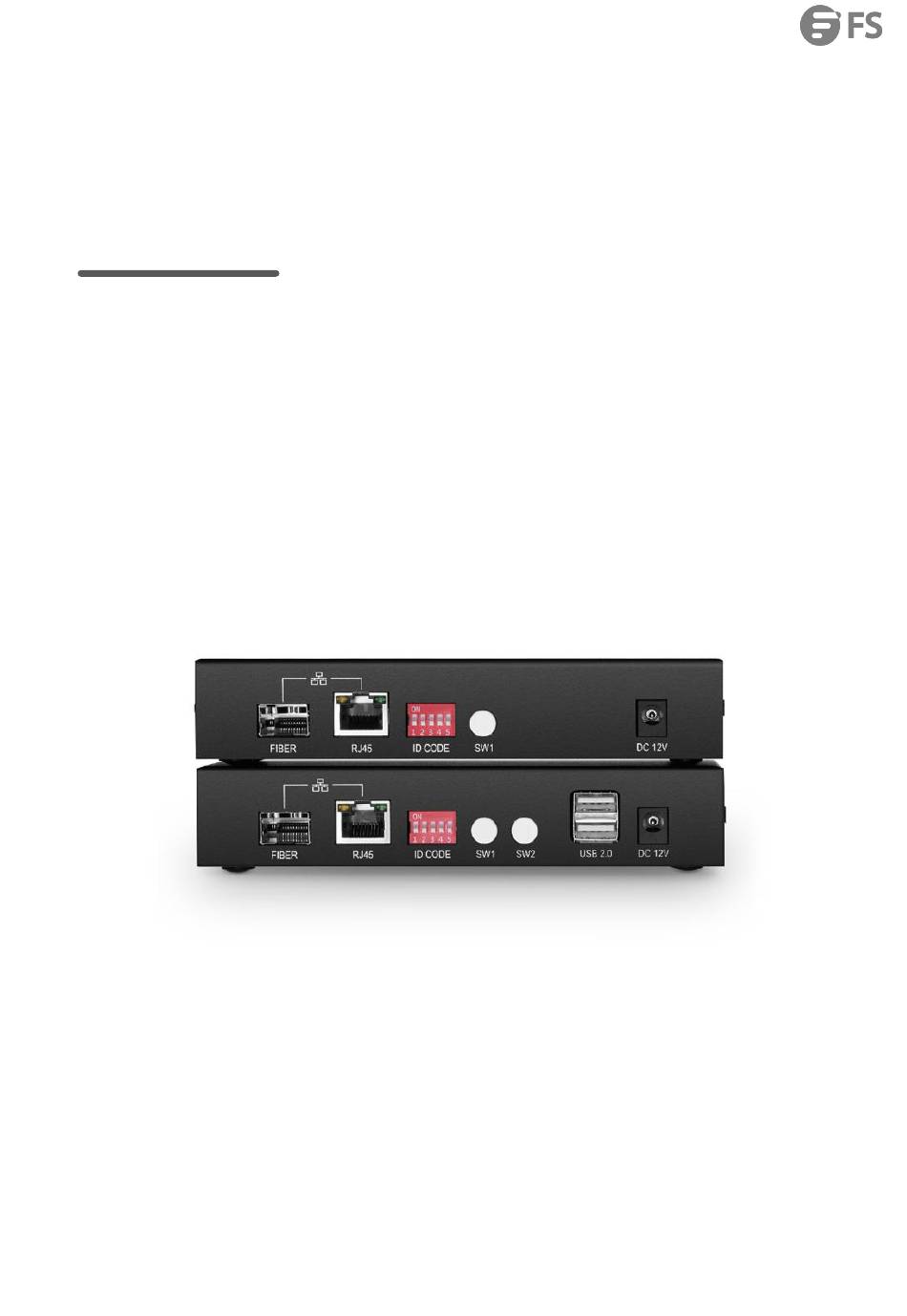

- Page 1 4KHDMIUFR USER MANUAL 4KHDMIUFR USER MANUAL Models: 4KHDMIUFR ww.fs.com...
-
Page 2: Table Of Contents
4KHDMIUFR USER MANUAL Content 1. Overview ........................... 1 2. Functions and Features ....................1 3. Typical Application ......................1 4. Specifications ........................1 5. Panel Instruction .......................2 5.1. Front and Rear Panel ........................2 5.2. LED Description ..........................3 5.3. EDID learning ........................... 3 6. -
Page 3: Overview
4KHDMIUFR USER MANUAL 1. Overview Thank you for using our HDMI digital transmitter/receiver over fiber. All products comply with ISO9001 quality system, and we provide customers with high-reliable equipment and good services. This HDMI fiber transceiver supports many resolutions up to 4K@30Hz. Longest distance could be up to 60Km; widely used in video conference, video wall, remote teaching, remote control and surveillance and so on 2. -
Page 4: Panel Instruction
4KHDMIUFR USER MANUAL Optic Parameter Wavelength: 1310 or 1550nm Fiber Type: single mode is 0-60KM(SM) or multimode is 0-300M(MM) Standard is 10KM for single mode Reflection loss: >40db Transmitter output optical power: -5~-10dBm（or larger） Receiver sensitivity: -24dBm Connector: LC/PC Power: ≈5W... -
Page 5: Led Description
4KHDMIUFR USER MANUAL 5.2. LED Description LED /Status Definition Light No Light Video cable indication HDMI cable link is normal HDMI cable link is LINK abnormal Transmitter: System System works Abnormal indication Receiver: fiber indication Fiber cable link is normal... -
Page 6: Laser Safety
4KHDMIUFR USER MANUAL 7. Laser Safety All series of “power/optic” converter has a laser, the purpose is to limit and reduce the risk of harm from laser exposure, so please carefully read the following notes about laser safety Emission wavelength of laser of equipments is 1310 nm or 1550 nm, means that the human eye can not see beam, and nictation can not protect your eyes (the human eye could see wavelength range, from 400nm to 700nm);...
