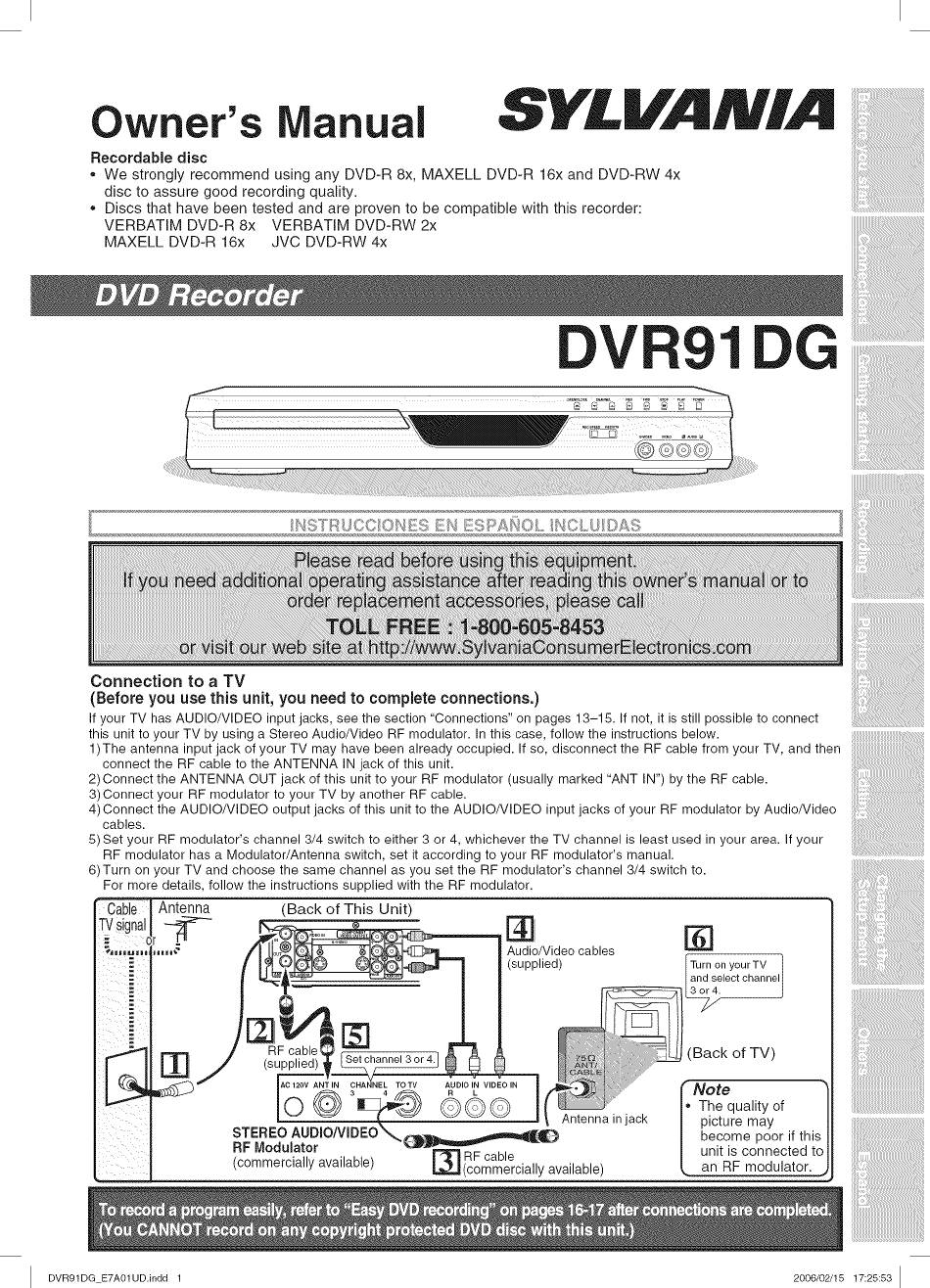

Owner's
anLlal
Recordable
disc
,, We strongly recommend using any DVD-R 8x, MAXELL DVD-R 16x and DVD-RW 4x
disc to assure good recording quality.
,, Discs that have been tested and are proven to be compatible with this recorder:
VERBATIM
DVD-R 8x
VERBATIM DVD-RW 2x
MAXELL DVD-R 16x
JVC DVD-RW 4x
DV
Connection
to a TV
(Before you use this unit, you need to complete connections.)
If your TV has AUDIO/VIDEO
input jacks, see the section "Connections" on pages 13-15. If net, it is still possible to connect
this unit to your TV by using a Stereo Audio/Video RF modulator. In this case, follow the instructions below.
1) The antenna input jack of your TV may have been already occupied.
If so, disconnect
the RF cable from your TV, and then
connect the RF cable to the ANTENNA
IN jack of this unit.
2) Connect the ANTENNA
OUT jack of this unit to your RF modulator (usually marked "ANT IN") by the RF cable.
3) Connect your RF modulator to your TV by another RF cable.
4) Connect the AUDIONIDEO
output jacks of this unit to the AUDIO/VIDEO
input jacks of your RF modulator by Audio/Video
cables.
5) Set your RF modulator's
channel 3/4 switch to either 3 or 4, whichever the TV channel is least used in your area. If your
RF modulator has a Modulator/Antenna
switch, set it according to your RF modulator's manual.
6)Turn on your TV and choose the same channel as you set the RF modulator's channel 3/4 switch to.
For more details, follow the instructions
supplied with the RF modulator.
_i-
Antenna
ITVsignal I--_
L,o..°L..=
(Back
of This
Unit)
_t
Audio/Video cables
(supplied)
Turn on yourTV
1
3nI
4elect channe I
RF cable
(supplied)
[A_V
ANT IN
TOTV
AUDIO IN VIDEO IN
_
3_------'W_f_
QQQ
Antenna in jack
STEREO AU DIOAq D EO'_
_.___._._{1_
RF Modulator
_mp,_m,Jv
-_
(commercially
available)
_
RF cable
_(commercially
available)
(Back
of TV)
L Note
The quality of
picture may
become poor if this
unit is connected
to
an RFmo_u!a!or.
I
DVR91DG
E7A01UD.indd
1
2006/02/15
17:25:53
