USER GUIDE
DV23 Non‐Contact Voltage Detector
Safety
WARNING: Risk of Electrocution. Before use, always test the Voltage
Detector on a known live circuit to verify proper operation
WARNING: Risk of Electrocution. Keep hands and fingers on the
body of the probe and away from the probe tip and tested inductor
CAUTION: Read, understand and follow Safety Rules and Operating
Instructions in this manual before using this product.
 Do not attempt repairs. There are no user serviceable parts.
 Do not expose unit to extreme temperatures or high humidity
 Do not use the unit if it is wet or damaged
 Do not apply more than the rated voltage between the probe tip
and ground.
 Do not operate with the case open.
This symbol, adjacent to another symbol or terminal,
indicates the user the user must refer to the manual for
further information.
This symbol, adjacent to a terminal, indicates that, under
normal use, hazardous voltages may be present.
Double insulation symbol
Specifications
Voltage Sensitivity 50V to 600V AC
Bandwidth 50/60Hz
Detection distance <0.2"
Operating Temperature 32 to 104
Storage Temperature 14 to 122
Altitude <7000' (2000m)
Relative Humidity < 95% RH
Batteries 2 x 1.5 'AAA' type
Dimensions/Weight 6.25x1" (159x25mm) / 1.5oz (42g)
Safety This unit complies with:
EMC: EN61326‐1:2006
LVD: EN61010‐1:2010, EN61010 031:2002+1:2008
nd
UL: UL61010‐1, 2 Edition, 2005‐07‐22
CAN/CSA‐C22.2 No. 61010‐1, 2
For indoor use and in accordance with Overvoltage Category IV‐
600V, Pollution Degree 2; conforms to CE standards
UL Listed The UL mark does not indicate that this product has
been evaluated for the accuracy of its readings.
1
2
o o
F (0 to 40 C)
o o
F (‐10 to 50 C)
nd
edition, 2004‐07

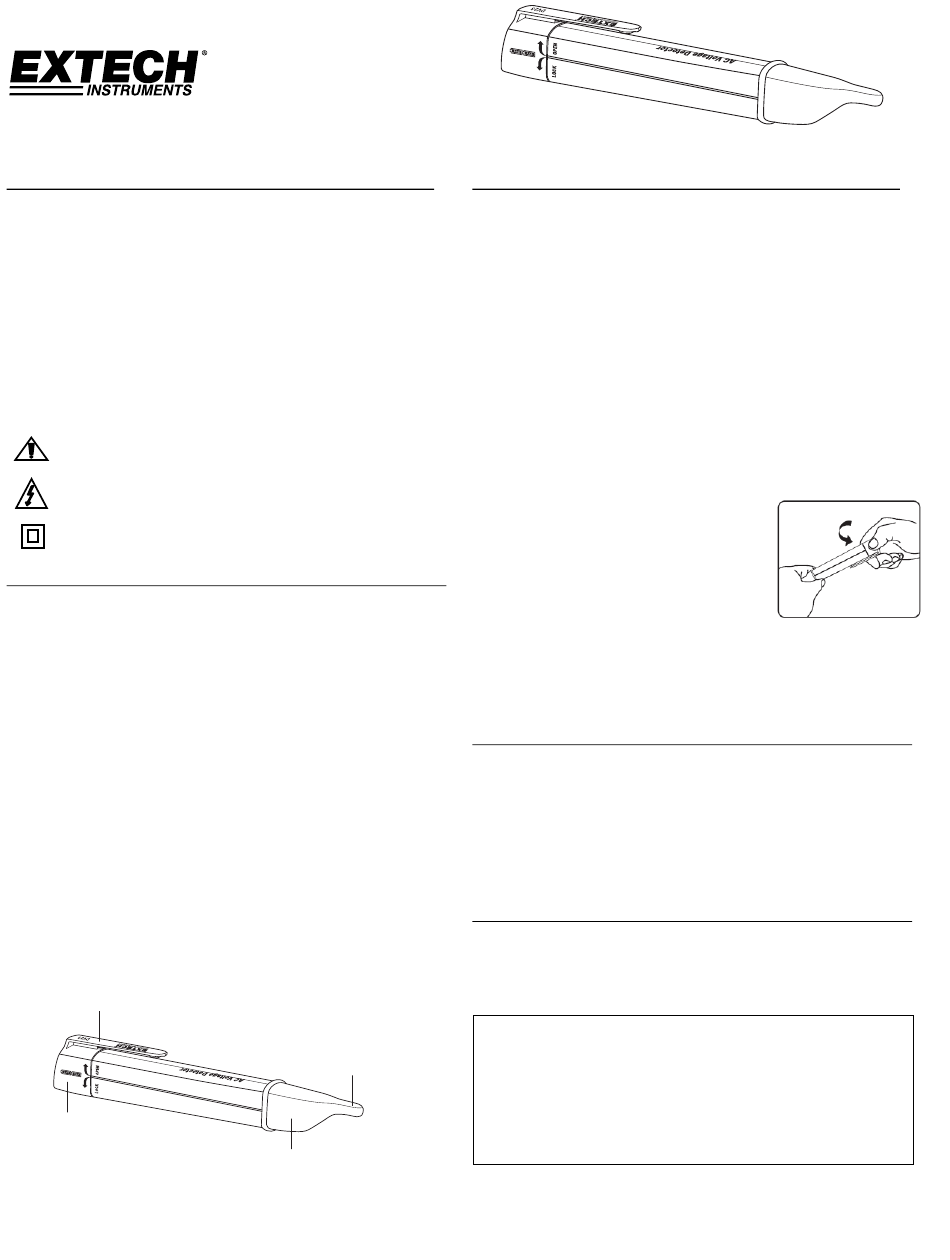

1. Pocket clip
2. Battery compartment
3. Probe tip
4. Detector cone lamp
3
4
Operating Instructions
Note: For new meters, remove the battery end cap and then remove
the battery insulating strip (if necessary).
AC VOLTAGE DETECTION
1. Touch the probe tip (3) to the hot conductor or insert into the
hot side of the electrical outlet.
2. If AC voltage is present, the detector cone will illuminate (4) and
the meter will beep.
NOTE: The conductors in electrical cord sets are often twisted. For
best results, rub the probe tip along a length of the cord to assure
getting the tip in close proximity to the live conductor.
NOTE: The detector is designed with high sensitivity. Static electricity
or other sources of energy may randomly trip the sensor. This is
normal operation.
BATTERY INSTALLATION
1. Remove the end cap (2) by gently twisting.
2. Insert two AAA batteries (observe polarity).
3. Replace the end cap.
NOTE: If the meter does not work properly, check
the batteries to ensure that they're fresh and
properly inserted.
CLEANING
Please wipe the meter with a damp cloth as needed. Do not use
solvents or abrasives when cleaning.
Warranty
FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship
for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should
become necessary to return the instrument for service during or beyond the warranty period, contact the
Customer Service Department for authorization. Visit the website www.extech.com for contact information. A
Return Authorization (RA) number must be issued before any product is returned. The sender is responsible for
shipping charges, freight, insurance and proper packaging to prevent damage in transit. This warranty does not
apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of
specification, improper maintenance or repair, or unauthorized modification. FLIR Systems, Inc. specifically
disclaims any implied warranties or merchantability or fitness for a specific purpose and will not be liable for any
direct, indirect, incidental or consequential damages. FLIR's total liability is limited to repair or replacement of the
product. The warranty set forth above is inclusive and no other warranty, whether written or oral, is expressed or
implied.
Calibration, Repair, and Customer Care Services
FLIR Systems, Inc. offers repair and calibration services for the Extech
Instruments products we sell. NIST certification for most products is also
provided. Call the Customer Service Department for information on
calibration services available for this product. Annual calibrations should be
performed to verify meter performance and accuracy. Technical support and
general customer service is also provided, refer to the contact information
provided below.
Support Lines: U.S. (877) 439‐8324; International: +1 (603) 324‐7800
Technical Support: Option 3; E‐mail: support@extech.com
Repair & Returns: Option 4; E‐mail: repair@extech.com
Product specifications are subject to change without notice
Please visit our website for the most up‐to‐date information
www.extech.com
