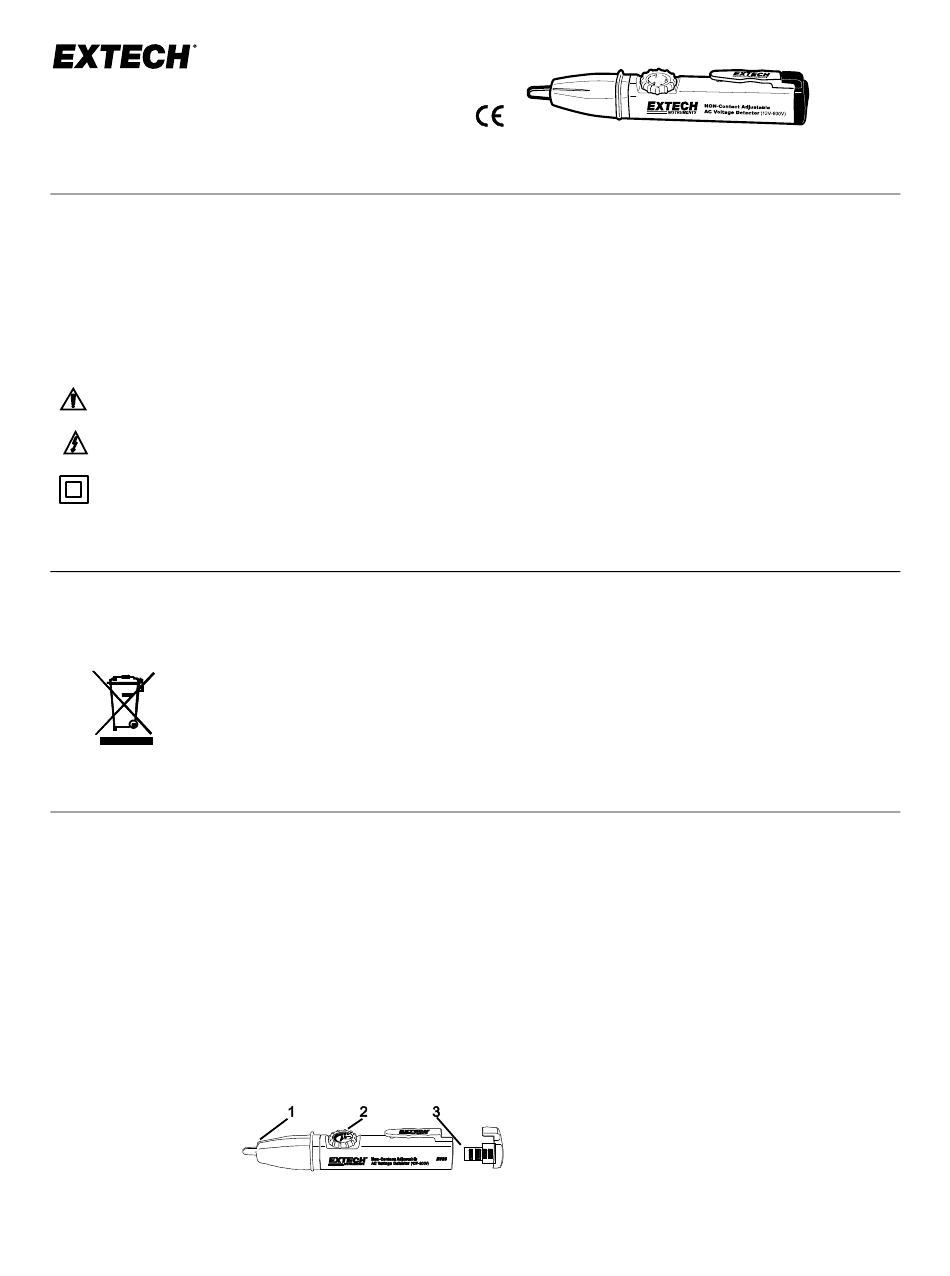

Extech Instruments DV30 User Manual

Model DV30
AC VOLTAGE DETECTOR

Safety Precautions

1. Improper use of this meter can cause damage, shock, injury or death. Read this guide before use.
2. Secure any covers or battery doors before use.
3. Inspect the condition of the meter for any damage before use.
4. Remove the batteries from the meter if the meter is to be stored for long periods.
5. For Indoor use
International Safety Symbols
Refer to the user's guide for information
Hazardous voltages may be present
Double insulation

Battery Replacement

1. Turn power OFF and release the end cap latch from the pocket clip and slide out the battery compartment (3).
2. Replace the four LR44 batteries and replace the battery compartment.
Never dispose of used batteries or rechargeable batteries in household waste.
As consumers, users are legally required to take used batteries to appropriate collection sites, the
retail store where the batteries were purchased, or wherever batteries are sold.
Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end-of-
life devices to a designated collection point for the disposal of electrical and electronic equipment.

Operation

WARNING: Risk of Electrocution. Before use, always test the Detector on a known live circuit to verify
proper operation.
NOTE on RF Interference: RF signals in close proximity to the detector may cause the voltage light and beeper to
latch into a constant tone and light indication. Wait until the RF signal has disappeared before proceeding with
voltage detection.
1. Turn the On/Off-Sensitivity switch (2) clockwise to turn the unit on.
2. Set the Sensitivity adjustment (2) to the high (counterclockwise) position
3. If the detector begins to beep/flash (1), slowly reduce the sensitivity (clockwise) until the beep stops.
4. Move the detector voltage sensor (1) near the conductor until the tip flashes and beeper sounds.
5. Slowly adjust the sensitivity (2) and reduce the distance between the sensor and conductor to pinpoint and identify
the conductor.
User Manual
1 DV30-en-US_V3.3 12/21
