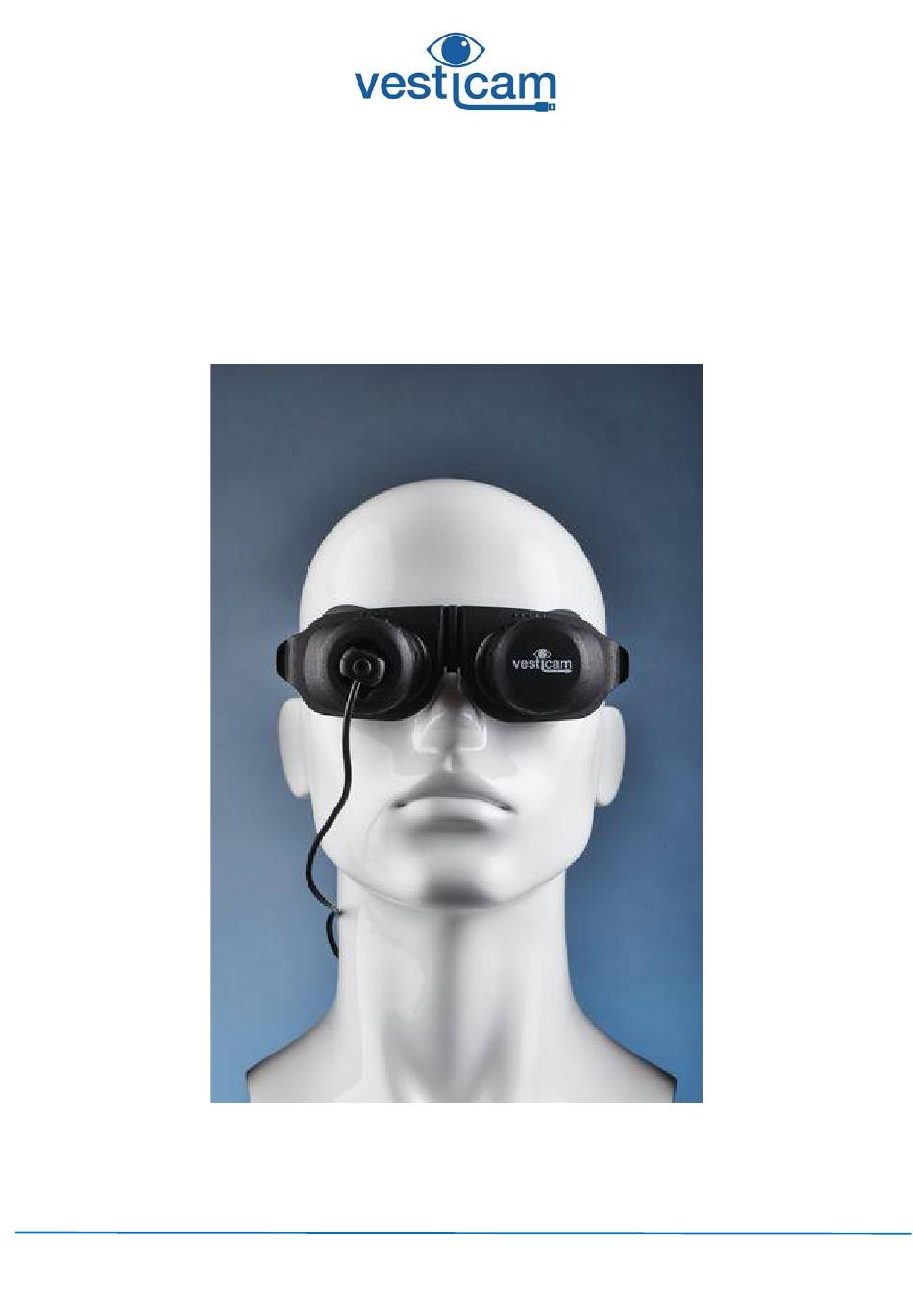

- Page 1 User Manual Vesticam2 Monocular IR video goggles, with fixation light (V2C22021) Vesticam2 Binocular IR video goggles, with fixation lights (V2C2C22021 Version 2.6 Date of issue: 09-10-2024 Vesticam™ User Manual Page | 1...
-
Page 2: Table Of Contents
(c) Minimum Requirements for Monocular Viewing………………………........5 (d) Minimum Requirements for Binocular Viewing ……………………..……………………………….….….6 Warnings, precautions & recommendations ………………………………………………....….7 2. Setting up and Using Vesticam2 Monocular IR video goggles ………….……………………..…….…9 3. Setting Up and Using Vesticam2 Binocular IR video goggles ……………….………………..…….…11 4. -
Page 3: Introduction
02 6638 9618 e: info@vesticam.com w: www.vesticam.com 1.2 Intended Use Vesticam2 IR video goggles are a medical device intended to capture eye movements. Viewing and recording eye movement requires a separate device and software. Vesticam2 IR video goggles are intended to be used by trained health professionals. The health professional remains entirely responsible for their choice of specific bedside tests. -
Page 4: Product Description
1. Goggles flexible face plate and mounting plate: comfortable, hypo-allergic face frame and quick release buttons. 2. Camera cylinder with internal fixation light. Light tight and reversible for use on either eye. Easily adjusted in all planes while in situ to suit most inter-pupillary distances and corneal depths. The camera comes with a light weight, resilient 90mm cable, which can be extended to 2.9 m with supplied extension lead. -
Page 5: (C) Minimum Requirements For Monocular Viewing
1. Android Phone or Tablet System requirements: Android Phone/Tablet Application Monocular / Single camera Operating System Android 10+ with OTG Processor Octa-core 2.0 GHz or faster 3GB + USB Ports USB Type-C or USB Micro B Storage 32GB + Microphone Built in... -
Page 6: (D) Minimum Requirements For Binocular Viewing
8GB+ USB Ports USB Type-C or USB-A Binocular viewing requires two dedicated USB-A and/or USB Type C ports (USB 2.0 or USB 3.0). Use a Bluetooth compatible mouse to free up a USB port if needed. Storage 32GB +... -
Page 7: Warnings, Precautions & Recommendations
USB connectors, cable, body unit, camera unit shell, or electrical (camera/infrared light bulbs/visible light bulb) components. • Before using the goggles on a patient, please follow the Initial Setup & Checks in Section 2.1.1 to confirm that the goggles, computer, and any software are functioning properly. - Page 8 • Do not leave the patient alone while goggles are in place. • Always clean the goggles before each patient use, following the recommendations for cleaning in Section 4.1.2. • Do not allow the electronics components or cables to come into contact with water.
-
Page 9: Setting Up And Using Vesticam2 Monocular Ir Video Goggles
2. Follow your normal patient hygiene pathways when applying the goggles. Use effective alcohol/anti-microbial wipes to clean goggles face plate, silicone eye cups and head band before and after each patient. Do not use on patients with infective disorders. (see also 3.1.2 “Cleaning and avoiding contamination” and Appendix 1 full instruction manual) - Page 10 NOTE: the fixation light will only work when the camera is plugged in to a phone, tablet or computer. Vesticam2 goggles are designed to be light tight. Adjust the goggles on your patient so they are comfortable, secure, light tight, and firm. If you have questions or concerns, please check www.vesticam.com/support or email support@vesticam.com Version 2.6 Date of issue: 09-10-2024 Vesticam™...
-
Page 11: Setting Up And Using Vesticam2 Binocular Ir Video Goggles
2. Follow your normal patient hygiene pathways when applying the goggles. Use effective alcohol/anti-microbial wipes to clean goggles face plate, silicone eye cups and head band before and after each patient. Do not use on patients with infective disorders. (see also 3.1.2 “Cleaning and avoiding contamination” and Appendix 1 full instruction manual) - Page 12 NOTE: the fixation light will only work when the camera is plugged in to the phone, tablet or computer. Vesticam2 goggles are designed to be light tight. Adjust the goggles on your patient so they are comfortable, secure, light tight, and firm. If you have questions or concerns, please check www.vesticam.com/support or email support@vesticam.com Version 2.6 Date of issue: 09-10-2024 Vesticam™...
-
Page 13: Maintenance/General
• For Vesticam2 repair contact support@vesticam.com • Check your Vesticam unit before each use. Do not use the Vesticam IR goggle unit if it is showing any signs of damage. If you are unsure, please contact Vesticam support (support@vesticam.com •... -
Page 14: Cleaning And Avoiding Contamination
These guidelines are aimed at providing information to assist Vesticam IR video goggle users in minimising the risk of transmission of infection. Persons proposing to use Vesticam IR video goggles for medical purposes must rely on their own medical and legal judgment. -
Page 15: Full Clean And Check
1. Inspect goggles for damage, focusing on electronic parts like USB connectors, cables, and the camera shell. 2. Verify that the eye cups are securely in place by gently pulling on each one. 3. Confirm the headband tightens and releases easily. -
Page 16: Features And Specifications
• USB Type-C, or • USB-A [2.0+] for PC/Mac/Laptop (via supplied adapter), or • USB Micro-B for Android with Micro-B (via supplied adapter) Lead length = 1.0m + USB Extension lead 2.0m (supplied) = 3.0m Camera Frame Rate: 30fps+ Resolution: 1080P... -
Page 17: Legal, Safety And Regulatory
30 day money back satisfaction guarantee on purchase. If for any reason you are not satisfied with your Vesticam IR video goggles, simply e-mail support@vesticam.com in the first 30 days from delivery and we will fully refund your money (less shipping costs). -
Page 18: Marking Details
4.5 Marking Details Marking Picture Medical Device Serial Number Refer to Instruction Manual Manufacturer and Location Fragile Keep electronics & cables dry Warning Temperature Humidity Atmospheric Pressure Version 2.6 Date of issue: 09-10-2024 Vesticam™ User Manual Page | 18...
