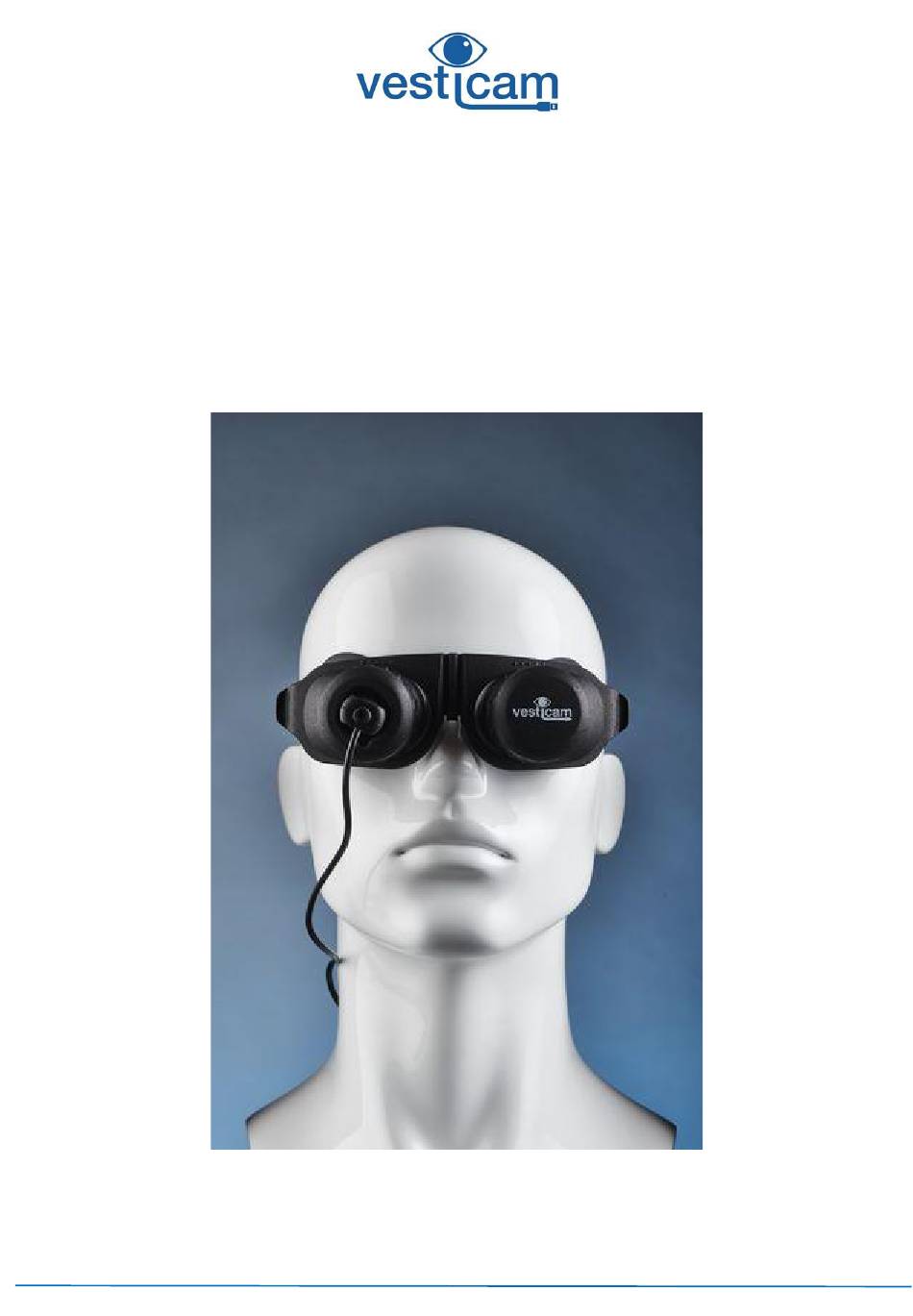

- Page 1 IR video goggle solution User Manual Vesticam Monocular IR video goggles, with fixation light (V2C22021) Vesticam Binocular IR video goggles, with fixation lights (V2C2C22021 Version V2C22021 Vesticam™ User Manual Page | 1...
-
Page 2: Table Of Contents
2.1 Clinical 2.1.1 Setting Up and Using Vesticam2 Monocular IR Video Goggles and Android Recorder or Tablet……………………………………………………………………………………………………………………..…….…7 2.1.2 Recording Using the Vesticam App for Android Phones (Monocular Use Only) ..……….…..8 2.1.3 Vesticam - Tips for Working with Video Recordings………………………………………………………….9 2.2 Technical 2.2.1 Installing/Reinstalling the Vesticam App……………………………………………………………..……………9... -
Page 3: Introduction
Vesticam IR video goggles are an active medical device intended by the manufacturer to be used for the specific purpose of improving observation of eye movement during some of the currently accepted and used 15 clinical bedside tests. -
Page 4: (B) Minimum Requirements For Monocular Viewing And Recording
Phones and ipads are not currently able to work directly with Vesticam IR video goggles. The Vesticam App is not required for viewing or recording eye movement. Any software for viewing videos via a USB camera will function with Vesticam2 IR video goggles. It is not the responsibility or intention of the manufacturer to recommend or approve software for viewing eye movement. - Page 5 Customers may be invoiced for assistance provided in the physical act of transferring a copy of OBS with suggested modifications. The Vesticam Support Team can assist by email, phone or screensharing to ensure the setup is complete and the equipment works to its specifications. Please check with your organization’s IT department that OBS meets its security requirements.
-
Page 6: (D) Included And Optional Parts
PIN. • The Vesticam app is pre-installed and ready to use. It can be uninstalled by the user at any time. • Vesticam Pty Ltd does not take any responsibility for the functioning of the android recorder / phone... -
Page 7: Vesticam2 Monocular Ir Video Goggles
2.1.1 Setting Up and Using Vesticam2 Monocular IR Video Goggles and Android Recorder or Tablet Vesticam IR video goggles are easy to set up and use. SETTING UP VESTICAM IR GOGGLES ON YOUR PATIENT 1. Start with the camera cylinder and eye patch cylinder off…not attached to the goggles 2. -
Page 8: Recording Using The Vesticam App For Android Phones (Monocular Use Only)
4. If you want extra cable length, connect the camera cable to the extension lead now. 5. Connect the lead with camera attached to the phone via the USB socket. 6. “Allow the app Vesticam to access the USB device”….. Press “OK” Your screen should now show the Vesticam camera image. -
Page 9: Vesticam - Tips For Working With Video Recordings
2.1.2 Recording using the Vesticam App for Android Recorders (Monocular Use Only) PRE-NAMING RECORDINGS Files can be renamed at any stage. To pre-name the eye movement video BEFORE recording press the pencil icon and tap on information box. The keyboard will appear. Press “next” then “done” then “save”. -
Page 10: Technical
Note: Your existing Videos will not be lost when you Uninstall or Install the Vesticam App. 4. To install, go to Home Screen, then tap on the “Vesticam Info.” folder at the bottom-left hand side of the screen. Tap on “vesticamlogin” (this will open a shared folder on the Google Drive). Select “Vesticam Setup”. -
Page 11: Recorder
2.2.2 Organising and finding Eye Movement Video Recordings into Folders on your Android Recorder Vesticam videos can be found in the Vesticam app “Video Library”. You can search for patient files names by patient ID, test, clinician, or date using the search button in the app. - Page 12 A notification box may pop up on your Android Recorder screen. Select “Transfer files” If no notification box appears: i Swipe down from the very top of the device screen, ii “USB charging this device” appears. Tap screen for more options. Version V2C22021 Vesticam™ User Manual Page | 12...
- Page 13 On your Laptop/PC open “File Explorer” Open “This PC” then “Devices & Drives” Click on the “Android Recorder” or other “<ANDROID PHONE NAME>” Next, click on “Internal storage”… then “Vesticam” … then “Videos” The location for your Vesticam Videos is: MyPC\\Vesticam Android Recorder\Internal storage\Vesticam\Videos STEP 5 Still on your Laptop/PC, Select and “Copy”...
- Page 14 STEP 1 Insert the micro-USB memory stick into the Android Recorder STEP 2 Open the Files App on the Android Recorder and navigate to the Vesticam folder - “Internal storage”… then “Vesticam” … then “Videos”. Copy the Videos folder STEP 3...
- Page 15 Note: If you can access your cloud storage on the Android Recorder then you can upload videos/images to that service. STEP 3: On the Android Recorder, Open Vesticam App > Image Library. Select the Video, select Send, select the destination …. eg. Dropbox or Google drive or Gmail/email. Note: Video files exceeding 25MB cannot to emailed.
-
Page 16: Recording Using Your Pc Or Mac
Use “Change Camera” to switch to the USB camera (ie. not “Main Camera” and not “Front-facing Camera” but “USB 2 HD Camera”). Once you have switched to USB camera, you are able to preview and record from the Vesticam camera. Recordings are saved in “Camera Roll” (Usually found at C:\Users\\Pictures\Camera Roll). Saved MP4 videos can be played, renamed, shared, backed up. -
Page 17: Screen Casting Your Android Recorder To A Larger Screen
(located in the bottom left of screen). You will see the preview from the inbuilt face camera. Connect the USB convertor plug (provided) to the micro USB plug at the end of the Vesticam camera lead. NOW connect the USB convertor to your PC/Mac USB port. - Page 18 Version V2C22021 Vesticam™ User Manual Page | 18...
-
Page 19: Vesticam2 Binocular Ir Video Goggles
The Binocular Vesticam equipment requires additional components (2 Camera, Dual cable, Laptop) that can be added to existing Vesticam monocular equipment. This means you can purchase and use different components to meet your clinical testing needs. This Vesticam designed setup (using OBS Studio software) provides vestibular clinicians with a feature rich solution for binocular recording. - Page 20 Vesticam2 goggles are designed to be light tight. Adjust the goggles with your patient so they are comfortable, secure, light tight, and firm. If you have further questions or concerns please check www.vesticam.com/support or email support@vesticam.com Version V2C22021 Vesticam™...
-
Page 21: Recording Using Obs Software
Customers may be invoiced for assistance provided in the physical act of transferring a copy of OBS with suggested modifications. The Vesticam Support team can assist by email, phone or screensharing to ensure the setup is complete and the equipment works to its specifications. -
Page 22: Maintenance/General
• For Vesticam2 servicing or repair contact support@vesticam.com • Do not use the Vesticam IR goggle unit if it is showing any signs of damage. If you are unsure, please contact Vesticam support (support@vesticam.com • Take care when connecting and disconnecting the camera or any adaptors to your recording device. The USB ports can be damaged if not used correctly •... -
Page 23: Features And Specifications
Do not autoclave. Do not use hard or pointed objects to clean any part of the Vesticam unit • Do not allow liquid to enter any part of the goggles camera unit. The Vesticam camera lens (visible when looking into the camera cylinder) should be checked regularly for stains and dust and should be cleaned as required using a standard spectacle lens cloth •... -
Page 24: Legal, Safety And Regulatory Information
The video size for Vesticam recordings varies, but is approximately 15mb per minute, therefore a patient video recording of 5 minutes will result in a 75mb mp4 video file. Vesticam Support estimate that a 64GB Android Recorder (with 20GB of available space) has the capacity for more than 800 video recordings! Frame Rate: 25 frames pers second is required on a video to observe nystagmus and most covert saccadic movements of the eye. -
Page 25: Contacting Support
Purchasers are required to follow their usual patient record sharing pathways when sharing eye movement videos. Vesticam is not responsible for the protection of any patient health data, or for any diagnosis made by practitioners based on Vesticam videos. -
Page 26: Appendix 1: Effective Cleaning Of Vesticam2 Goggles
APPENDIX 1: Effective Cleaning of Vesticam IR Video Goggles, References 1. Instilling a culture of cleaning: Effectiveness of decontamination practices on non-disposable sphygmomanometer cuffs Zimmerman P, Browne M, Rowland D. Journal of Infection Prevention, Volume: 19 issue: 6, page(s): 294-299 This recent study from Australia tested whether disinfection of blood pressure cuffs using disinfectant wipes was an effective (and cost saving) option.
