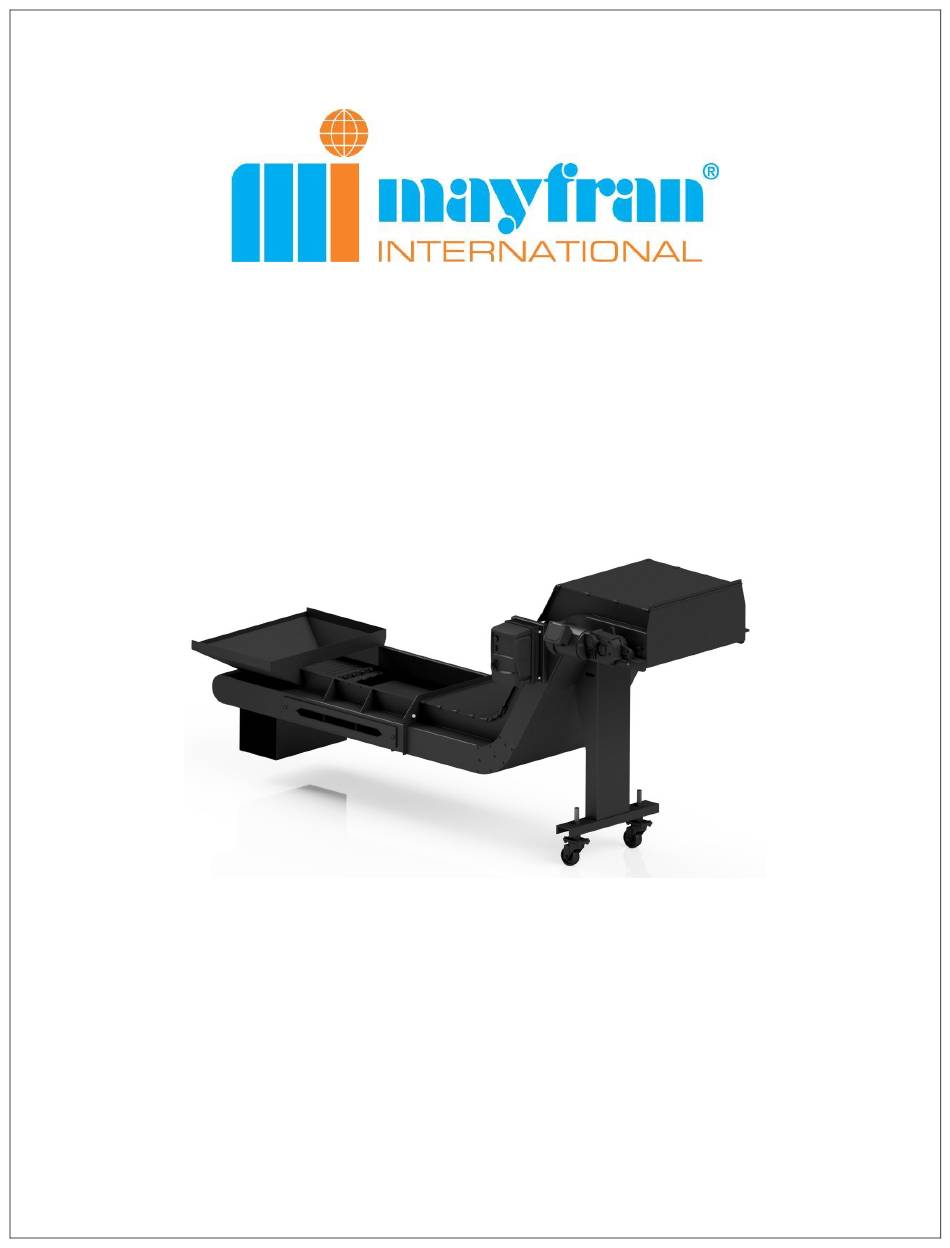

Mayfran International, Incorporated Installation / Startup / Maintenance Manual TABLE OF CONTENTS Table of Contents ..............................ii Conveyor / System Information .......................... 1 Warranty Statement ............................2 Safety Information ............................... 3 Safety Information, Continued ........................ 4 Parts Ordering Instructions ..........................5 Parts List for Conveyor ..........................
Your Warranty period: Date shipped___________ through ___________ CUSTOMER SERVICE / PARTS ORDERS If you have any questions or need to order parts, please contact Mayfran International at: (440) 461-4100 Fax: (440) 461-5565 8:00 a.m. to 5:00 p.m. (EST) THIS GUIDE IS COPYRIGHTED All rights are reserved.
Should any failure to conform to this warranty appear within the first 2000 hours of operation, but not later than one (1) year after shipment, Mayfran will, upon prompt notification thereof and substantiation that the equipment has been installed, maintained and operated in accordance with good industry practice and with any specific recommendations, correct such nonconformity, including nonconformity to the specifications in Mayfran’s Proposal, by in-place repair or, at its option,...
Mayfran International, Incorporated Installation / Startup / Maintenance Manual SAFETY INFORMATION THE SAFETY INFORMATION CONTAINED HEREIN MUST BE COMMUNICATED BY THE CUSTOMER, OWNER, OR END USER TO ALL PERSONNEL WHO WILL ACTUALLY OPERATE, MAINTAIN, REPAIR, OR ADJUST THIS MACHINERY, OR WHO ARE ASSIGNED TO WORK IN THE VICINITY OF THIS MACHINERY.
MAYFRAN INTERNATIONAL, INCORPORATED WILL NOT BE RESPONSIBLE FOR ANY WORK PERFORMED, OR ALTERATIONS MADE TO ANY OF ITS PRODUCTS UNLESS PRIOR APPROVAL HAS BEEN GRANTED IN WRITING BY AN AUTHORIZED MAYFRAN REPRESENTATIVE. ANY OTHER WORK WILL VOID ANY AND ALL WARRANTIES AND LIABILITIES.
Mayfran identification numbers for that particular conveyor. Note: This is also the Mayfran sales order number. Part Number: Specify the Mayfran part number as given in this manual or as found on the drawings for the particular conveyor.
Side Wing, Right Hand 4-7L Side Wing, Left Hand 4-7M Outer Cleat 4-7N Inner Cleat 4-7O Wiper Assembly 4-7P Brush Assembly All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
Mayfran International, Incorporated Installation / Startup / Maintenance Manual CONVEYOR TERMINOLOGY Figure 1a: Conveyor nomenclature. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
Be sure that slings will not deform conveyor parts. A spreader must be used if it appears that side panels, guards, etc. may be deformed by the sling. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
A chain that is too tight, may cause excessive wear of chain components and create overloads on the drive system. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
(or loosen the other side). Tighten only a couple of turns then restart the conveyor and observe the belt for at least one complete revolution. Repeat as required until centered. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
Page 13
The dimension should be the same on both sides. If the belt runs to the side, the head shaft is not square. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
Page 14
Repeat as required until centered. Ensure that all guards are properly installed. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
Both adjustment bolts must be tightened evenly. Incorrect adjustment may result in excessive wear of chain and/or sprockets. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
The belt is going to be fed into the lower tracks, the belting must be assembled upside down. Verify cleat spacing if the belt is equipped with cleats. Check installation drawings for cleat spacing. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
Page 17
A pair of channel lock pliers can be used to do this. Figure 4: Installation of belt pin back through roller block assembly. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
Page 18
Before resuming operation of the conveyor system, make sure to check the belt tension. Finally, be sure to check that the adjustment screws are locked in position. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
Before resuming operation of the conveyor system, make sure to check the belt tension (See the section “CONVEYOR / CHECKING BELT TENSION”). Be sure to replace all the guarding on the conveyor system. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
Check the screen on the filter box assembly. Clean when necessary Monthly Check roller chain adjustment/lubricate Every 6 months Lubricate take-up assembly Every 6 months All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
It is imperative that any unusual noises are identified, diagnosed, and corrected immediately to prevent serious damage from occurring. All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
Loose belt Adjust take-up to tension belt Broken/slipping v-belts Replace/tension v-belts Broken drive chain Repair/replace drive chain All drawings shown are typical examples of Mayfran equipment provided for the purpose of customer education only, and are subject to change.
