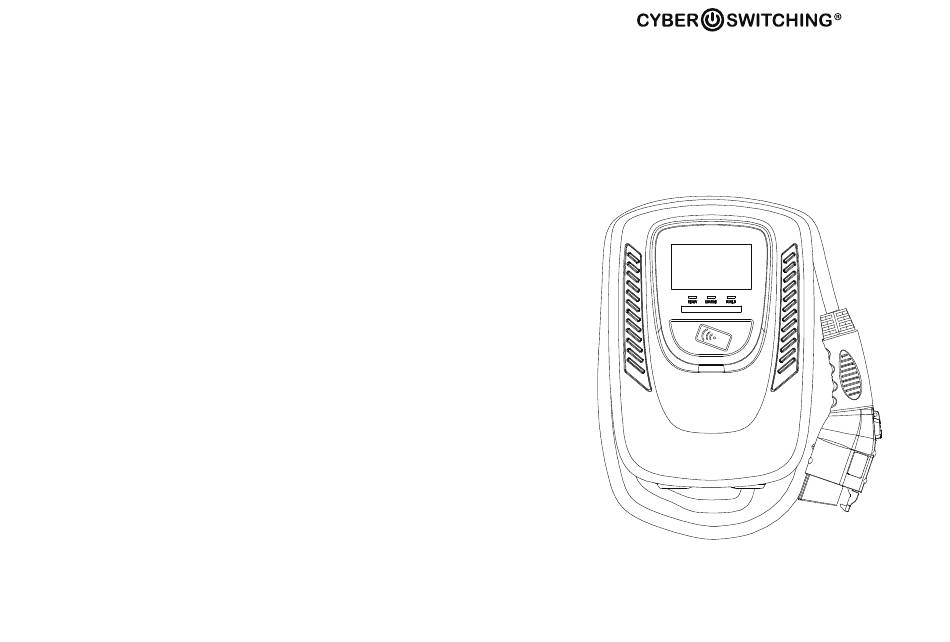

- Page 1 Electric Vehicle AC Charger CSE3 Series - User Manual...
-
Page 2: Table Of Contents
USER MANUAL USER MANUAL TABLE OF CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS ........1 2. PRODUCT INTRODUCTIONS........... 5 3. VERIFY CONTENTS..............7 4. GATHER TOOLS ............... 9 5. PLAN THE MOUNTING ............10 6. MOUNT THE CHARGING STATION ........12 7. WIRE THE CIRCUIT ..............14 8. -
Page 3: Warning And Caution
USER MANUAL USER MANUAL WARNING & CAUTION WARNING & CAUTION WARNING & CAUTION 1. Important Safety Instructions 1.2 Installation Requirements WARNING: Disconnect electrical power prior to installing the charging station. 1.1 Overall Warnings & Cautions WARNING: Be sure to preview the user manual and ensure local building and electrical codes are WARNING: To avoid fire, injury or death, carefully read and follow the instructions during reviewed before installing the AC charger. -
Page 4: Consignes De Sécurité Importantes
USER MANUAL USER MANUAL WARNING & CAUTION WARNING & CAUTION Consignes De Sécurité Importantes 1.2 Exigence Avant L’installation 1.1 Avertissement & Mise En Garde Généraux AVERTISSEMENT : Assurez-vous de consulter le manuel d'utilisation et assurez-vousque les codes locaux du bâtiment et de l'électricité sont passés en revue avant d'installer le chargeur. AVERTISSEMENT : Pour éviter les risques d’incendie, de blessure ou de mort, il faut lire et suivre soigneusement les instructions pendant l’installation, l’utilisation et l’entretien. -
Page 5: Product Introductions
USER MANUAL USER MANUAL WARNING & CAUTION 2. Product Introductions 2.3 Specifications CAUTION: Avoid placing the charger near hot objects and at high temperature locations Model Number EVC10 Version and away from dangerous substances such as flammable gases and corrosive materials. Rated Input Voltage 208/240VAC Rated Output Current... -
Page 6: Verify Contents
USER MANUAL USER MANUAL 3. Verify Contents Product Name Quantity Description Check the box to ensure you have this installation guide and these parts: With attached input power cable and AC Charger output charging cable User Manual Please read carefully before use Electric Vehicle AC Charger Installation Instructions For mounting the charging station to... -
Page 7: Gather Tools
USER MANUAL USER MANUAL 4. Gather Tools 5. Plan The Mounting Tools required before installing the Wall-Mounted charger, gather the following tools: WARNING: In areas with frequent thunderstorms, add surge protection at the service 1. Wire stripper panel for all circuits. Ensure all power and ground connections, especially those at the 2. -
Page 8: Mount The Charging Station
USER MANUAL USER MANUAL 6. Mount the Charging Station STEP 3 (Only for 4G Version) STEP 1 Tighten 13 screws on the front cover after the front cover is put back, the recommended screw torque is Use 4 sets Hexagonal Expansion Screws to secure the 1.0 N.m (9.6 lbf.in) (for 4G Version).clean and tight. -
Page 9: Wire The Circuit
USER MANUAL USER MANUAL 7. Wire The Circuit STEP 4 WARNING: This device must be grounded. Disconnect electrical power prior to installing Overall outlook picture after installation. the charging station. WARNING: Improper connection of the equipment-grounding conductor would result in a risk of electric shock. -
Page 10: Operate Your Device
USER MANUAL USER MANUAL 8. Operate Your Device STEP 2 Plug the Charging Connector: WARNING: This device should be supervised when used around children. Please plug the charging connector into the vehicle charging inlet. CAUTION: Please use the charger properly. Do not hit or press hard on the enclosure. If the case is damaged, please contact a professional technician. - Page 11 USER MANUAL USER MANUAL 8.2 Operating Steps with RFID (Optional) STEP 3 Swipe the RFID Card: CAUTION: Please keep your RFID card properly to avoid unnecessary loss. Swipe the RFID card first and plug in the charging connector within 120 seconds, otherwise you need to swipe the RFID card again.
-
Page 12: Light Codes
USER MANUAL USER MANUAL 9. Light Codes 10. Warranty and Maintenance 9.1 After Start UP • The warranty period for this charger is three years. • During the warranty period for any malfunction under normal use according to the User Manual Waiting to Standby, charge,...
