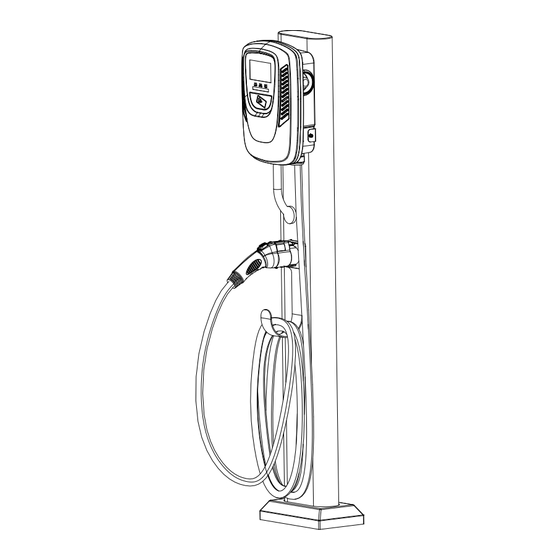

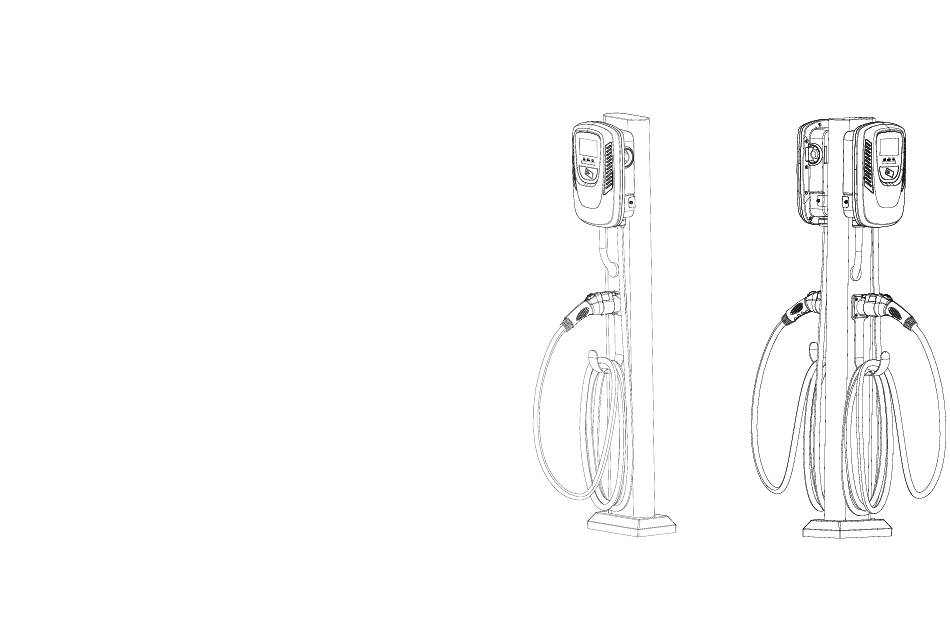

- Page 1 Pedestal Installation Manual Single Pedestal Back-to-back Pedestal...
- Page 2 INSTALLATION MANUAL INSTALLATION MANUAL WARNING Making drill holes • Mark the 4 holes on the concrete foundation using the base-plate of the pedestal. Make sure Safety instructions that the connection cable is located precisely underneath the opening in the base-plate. Not observing the safety instructions can result in risk of death, injuries and damage to the device! The •...
- Page 3 INSTALLATION MANUAL INSTALLATION MANUAL Thread in cable Bracket installation • Thread the connection cables from the bottom through the pedestal upwards through the cable • Insert one cable gland to the pedestal for single pedestal properly. opening. • Take off the wall-mounted bracket of the charger, and fix it in the corresponding position on the pedestal with 4 pcs of M8*16mm screws for single pedestal.
- Page 4 INSTALLATION MANUAL INSTALLATION MANUAL Connector base & Hook installation Mounting the charging station • NA Version: • Mount the charging stations on the pedestal using 2pcs of M5*12mm screws on two sides of the Use 4pcs of M5*22mm screws to fix the connector base and hook in the corresponding position. charger.
