- Page 1 Link Tubular Motor 35mm (for Atlantis & BCS ® ® USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Your Link Tubular Motor - Introduction - Accessories - Features & Benefits - Supported protocol - Declaration Of Conformity 2. Product Info - Product Info - Safety Instructions - Technical specification 3. Instructions - EasyTouch control buttons - Functionality buttons 4. -
Page 3: Your Link Tubular Motor

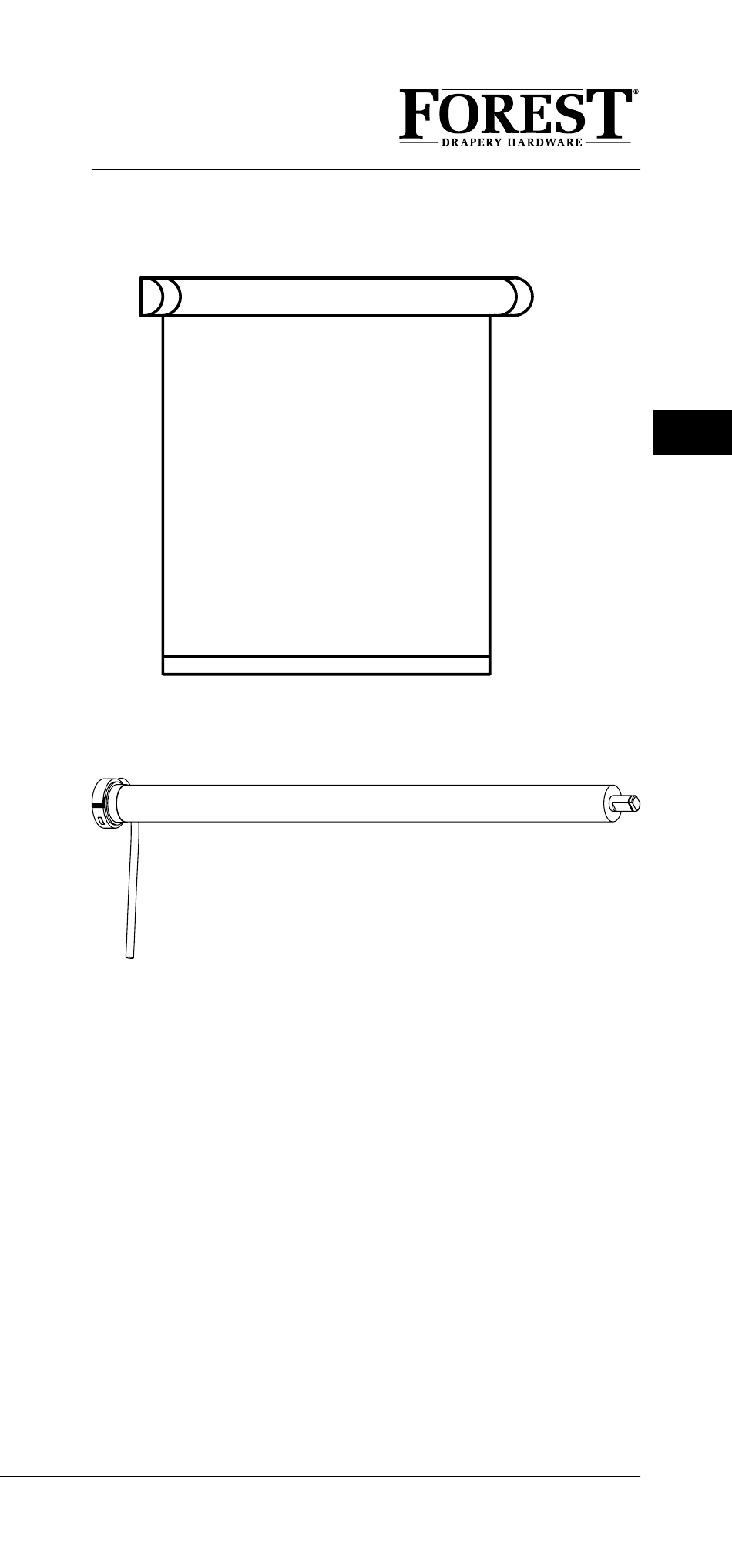

1. YOUR LINK TUBULAR MOTOR INTRODUCTION Thank you for choosing the Forest Link Tubular motor for the Atlantis roller blind system and ® roman blind system. ® This guide provides essential information on how to operate, maintain, and maximise the performance of your Forest Link Tubular 35mm motor. -
Page 4: Included In The Box
BCS - 11kg Atlantis 50mm - 12kg Atlantis 60mm - 10kg • 5 Year warranty on motor • Adjustable speed 15/20/25 rpm SUPPORTED PROTOCOL This Link Tubular 35mm Motor is equipped with the Forest Link protocol. ® YOUR LINK TUBULAR MOTOR... -
Page 5: Declaration Of Conformity
DECLARATION OF CONFORMITY YOUR LINK TUBULAR MOTOR 5... -
Page 6: Product Info
PRODUCT INFO Pairing Button Power line SAFETY INSTRUCTIONS 1. This product is for indoor use only, do not use outdoor or in humid environments. 2. Power supply: 230Vac 3. The motor will jog during setup, please do not proceed to the next step until jog is complete. 4. -
Page 7: Technical Specification
TECHNICAL SPECIFICATION • Voltage 220-240Vac • Power max. 50Hz – 60W • Current max. 0.3A • Torque 5 Nm • Speed 15 / 20 / 25 • Run time max. 6 minutes • Length 60cm • Diameter 35mm • Frequency 433.92MHz •... -
Page 8: Instructions
Channel FRONT LED bar Stop Open Channel - Channel + Favourite Close BACK Forest Group (Nederland) B.V. Teugseweg 42, 7418 AM www.forestgroup.com info@forestgroup.com Program Model no. 00000000000 Serial no. 00000000000 button FCC ID: 000000000 INSTRUCTIONS... -
Page 9: Functionality Buttons
FUNCTIONALITY BUTTONS Button Description/ function Opens the curtains Open or blinds Closes the curtains Close or blinds Stops the movement Stop Switches to the next Channel + channel. The LED indicator moves to the right Switches to the previous Channel - channel. - Page 10 MOTOR BUTTON FUNCTIONS Jogging Functions Operation Note time Control the Can only be used UP/STOP/DOWN Short press when limits are of the blind already set. Press the P button Adding/Removing on the remote Hold for 2s Jog 1x Controller control within 10 seconds.
-
Page 11: Get Started
PAIRING MOTOR WITH CONTROLLER Option 1: Before motor is powered. Power on Jog x1 Select Press Prg Jog x2 channel within 10s Option 2: After motor is powered on for more than 10s Pairing Button Press pairing Jog x1 Select Press Prg Jog x2 button x2s... -
Page 12: Settings
5. SETTINGS DIRECTION REVERSE Correct Press Blind Press Blind open goes up close goes down If the limits are not set, and direction goes opposite. & Direction reversed Fav & Stop x2s Jog x1 If limits are set and direction goes opposite. Jog x1 Press Jog x1... -
Page 13: Upper & Lower Limits Settings
UPPER & LOWER LIMITS SETTINGS & Open or close Fix upper Open & Jog x2 Upper point Fav x2s limit set & Open or close Fix lower Close & Lower Jog x2 point Fav x2s limit set Note: Upper&Lower limits cannot be set at the same point. -
Page 14: Setting & Cancelling Favourites Function
SETTING AND CANCELLING FAVOURITE FUNCTION Setting & Fix Fav. Fav & Open or close Stop x2s position Fav. position Jog x2 Important: The Favourites function can only be set if the end positions are configured. Cancelling & Fav & Shade is at Jog x1 Stop x2s Fav. -
Page 15: Adjusting Upper & Lower Limits
ADJUSTING UPPER & LOWER LIMITS Adjust Upper limit & Open & Open & Fix new Jog x1 Fav x6s close upper limit & Open & Jog x2 Fav x2s Adjust Lower limit & Jog x1 Close & Open & Fix new Fav x6s close lower limit... -
Page 16: Remove Remote Controls
REMOVE REMOTE CONTROLS Remove a single controller Pairing Button Press pairing Jog x1 Jog x1 button x2s Remove controller B via pre-existing controller A Prg on Jog x1 Prg on Jog x1 Jog x1 Stop on B existing A existing A (to remove) Controller B removed Remove all controllers... -
Page 17: Notice
6. Notice RECYCLING Do not dispose of the product with house- hold waste. Ensure that you return it to a collection point or depot for recycling purposes. NOTICE... -
Page 18: Support
7. Support Why isn’t the motor working? • Check if you have paired a remote control. If your remote is not paired yet you need to pair the remote control with the motor by following the pairing instructions in your manual. •... - Page 20 SCAN FOR MANUAL www.forestgroup.com/en/installation-guides...
