Summary of Contents for Forest SHUTTLE iOn

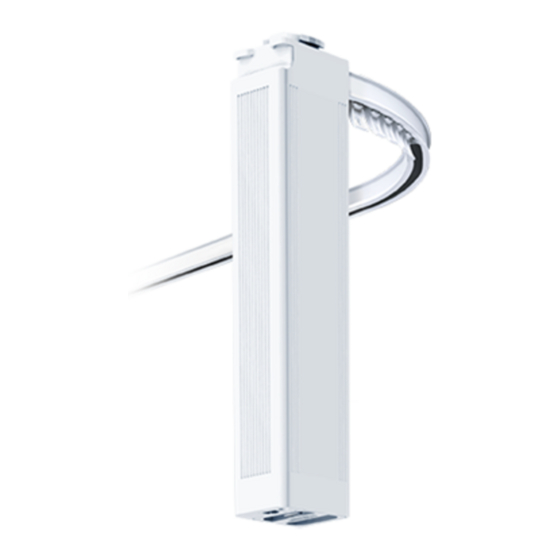

- Page 1 FOREST SHUTTLE® iOn...
- Page 2 Remove the security cap from the battery and insert the battery, push until a “click” is heard. Remove the Security cap! Setting the end limits of the FOREST SHUTTLE® iOn; The stack back (adjusted open limit) can be set by remote or switch. For programming see page 6. SETTING MOTOR DIRECTION AND CLOSE LIMIT: The Shuttle®...
- Page 3 4. Pair the Shuttle® iOn with a remote control; Any type of Forest RF remote can be paired to the Shuttle® iOn by activating the RF learning mode on the Shuttle® iOn and pressing the Open button on the remote.
- Page 4 Do not repair the battery pack if damaged; Replace the battery pack if damaged; Do not charge the battery in ambient conditions below 10⁰C (50⁰F); Dispose properly. 4 │ Installing the FOREST SHUTTLE® iOn battery motor v1.1...
- Page 5 - Single button switch mode: Every contact made between pin 3(COMMON) and pin 1 or 8 will trigger; open -> close -> stop -> open -> close -> stop -> etc.… 5 │ Installing the FOREST SHUTTLE® iOn battery motor v1.1...
- Page 6 4 seconds; the led will blink 3 times and turn OFF. 3: Pairing / Erasing mode for 433MHz RF remote Programming Forest RF remote channel: Press the configuration button 3 times and hold it down the 4 time for 4 seconds - LED will start blinking for 10 seconds - Within these 10 seconds press the OPEN button on the selected channel on the remote to pair the remote with the Shuttle®...
- Page 7 3400mAh Certification & Marking: Operation temperature: 0⁰C to +40⁰C (32⁰F to 104⁰F) 0⁰C to +40⁰C (32⁰F to 104⁰F) Net weight battery pack: 250 gr. (0.55 lbs) 250 gr. (0.55 lbs) 7 │ Installing the FOREST SHUTTLE® iOn battery motor v1.1...
- Page 8 It is important for the safety of persons to follow these instructions. Save these instructions for future reference. Do not use the product for any other purpose than intended. In order for the Forest Shuttle® iOn motor to function correctly and safely, the complete curtain system must be assembled with original parts and devices of Forest Group Nederland B.V.
