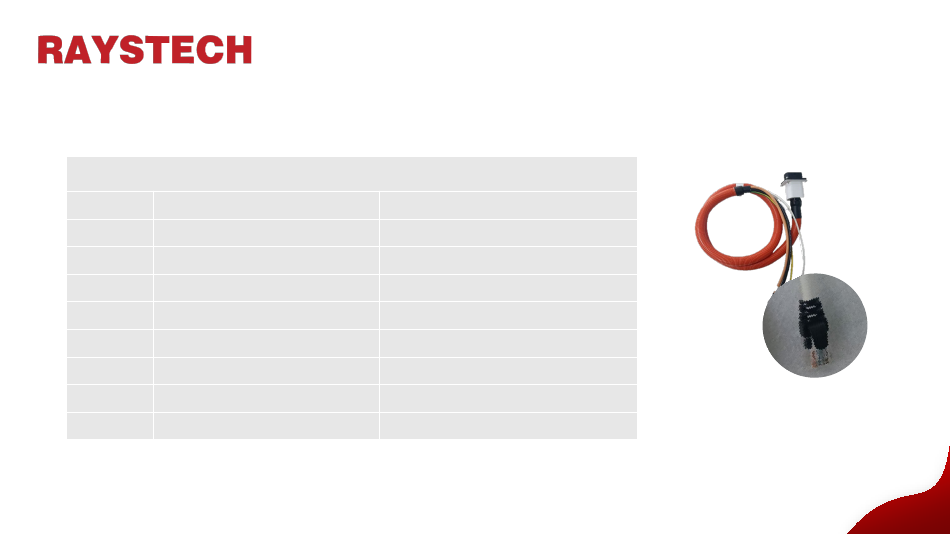

Battery RJ45 CAN/RS 485
PIN
Color
1
Orange & white
2
Orange
3
Green&white
4
Blue
5
Blue & white
6
Green
7
Brown & white
8
Brown
Battery PIN definition
Signal Name
BAT_CANH
BAT_CANL
NA
INV_CANH
INV_CANL
NA
INV_RS485_A
INV_RS485_B
17
