AIRPULSE A200 Manual

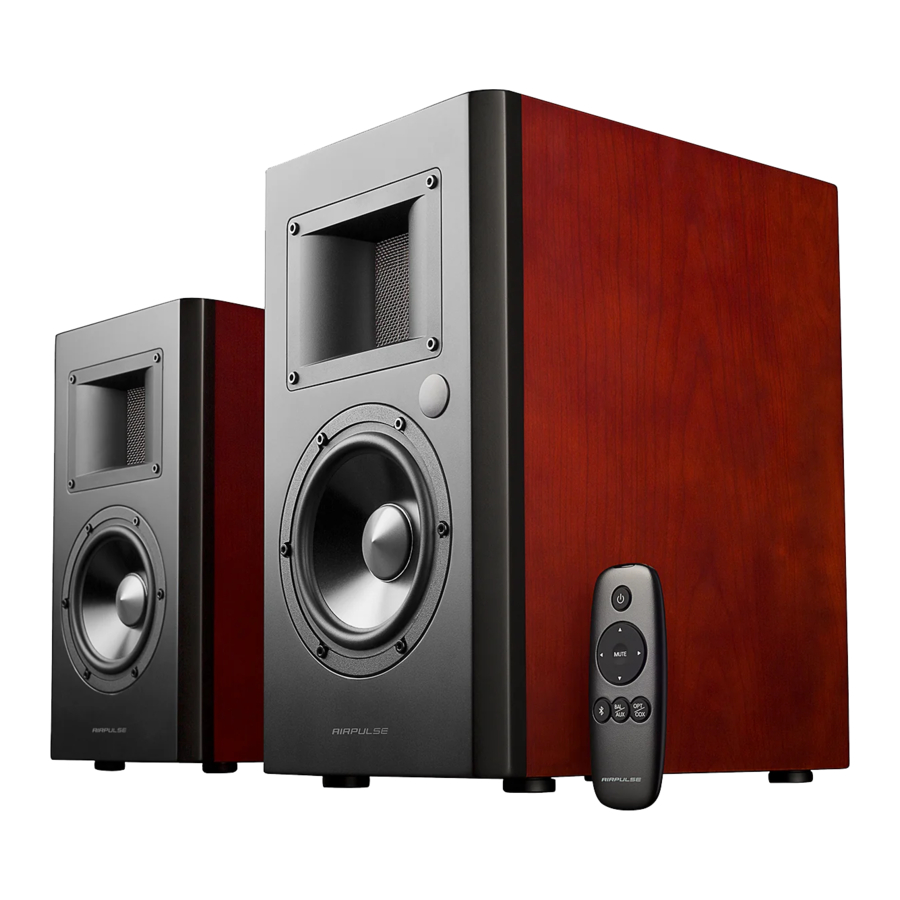

Inside the Box

Box Contents:

Device Controls

Master volume control/input selection
Press in to navigate between audio sources: BAL->AUX->Optical->Coaxial->Bluetooth.
Note: Press and hold the Master volume control to disconnect from Bluetooth devices
Bass
Treble
Balanced input port
AC input
Auxiliary input socket
Optical input socket
Coaxial input socket
Left speaker output
On/Off Switch
Speaker input
LED indicator
Red: Optical/Coaxial mode
Green: BAL/AUX mode
Blue: Bluetooth mode

Remote Control

IR Window
Power On
Master Volume Control
Mute
Optical/Coaxial mode
BAL/AUX mode
Bluetooth mode

How to change battery:
Insert a coin into the slot and rotate anti-clockwise to open the battery compartment, install the new CR 2025 battery (electrode + upturned) and rotate the cover clockwise to close the compartment.

Do not expose the remote control to extreme heat or humidity.
Do not charge the batteries.
Remove the batteries when not in use for an extended period of time.
Do not expose the battery to excessive heat such as direct sun, fire, etc.
Do not ingest battery, chemical burn hazard. The remote control supplied with. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children, if the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of body, seek immediate medical attention.

Connections

Balance and AUX Input

Balance and AUX Input Connection

Press master volume control on active speaker or press the "BAL/AUX" key on the remote control to select AUX audio source, LED indicator turns to green.
Connect BAL/AUX input port on active speaker to your audio source (cellphone, mp3, mp4 player etc) using the included RCA-RCA audio cable.
Touch play on your device and adjust the volume to a desired level.

Optical and Coaxial Input

Optical and Coaxial Input Connection

Press the master volume control on the active speaker or press the "OPT/COAX" button on the remote control to select the optical/coaxial input.
Using optical or coaxial cable (optical cable included) to connect audio sources to your speaker.
Play from your devices and adjust the volume accordingly.

Note: In optical and coaxial modes, only PCM signal with 44.1KHz/48KHz/96KHz/192KHz can be decoded.

Bluetooth Input

Turn on speaker and switch to Bluetooth mode by pressing the Bluetooth button on the remote control or press the master volume control on back panel of the active speaker.
Go to setup section on your source devices (mobile phones, tablets, etc.) and search for nearby Bluetooth devices, you will find "AIRPULSE A200" in the list.
Pair your device with "AIRPULSE A200".
Play audio tracks on your device and adjust the volume to a desired level.

Other operations

After pairing, using the pair record on your source device to re-connect to the speaker;
Bluetooth of the product will be powered off after switching away from Bluetooth mode, so in other audio mode Bluetooth connection can not be made.
When switch to Bluetooth mode, the speaker will try to connect the last connected Bluetooth source device.
To disconnect Bluetooth, press and hold the master volume control for about 2 seconds.

Note:

Bluetooth connectivity and compatibility may be different among different source devices, depending on the software versions of source devices.
To enjoy the full Bluetooth functions of this product, please ensure your mobile device supports A2DP and AVRCP profile.
PIN code for connection is "0000" if needed.

Specifications/statement

Power Output:	L/R Ribbon Tweeter: 10W+10W L/R Mid-Range: 55W + 55W
Signal-Noise Ratio dB(A):	≥90dB(A)
Input Interface:	AUX, Balance Input, Optical, Coaxial, Bluetooth
Input Sensitivity:	Balance Input 1300±50mV Aux Input: 550±50mV Bluetooth Input: 500±50mFFs Optical Input: 350±50mFFs Coaxial Input: 350±50mFFs
Noise Level:	≤25dB(A)
Frequency Response:	46Hz~20KHz
Tweeter:	Phase Correction Horn Loaded Ribbon Tweeter
Mid-Woofer:	5.5" Aluminum Cone Neo Power Mid-Woofer
Cabinet Size (WxHxD):	203 x 355 x 295 (mm)
Net Weight:	19 Kg (42 Pounds ) / Set

NOTICE: For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.

Troubleshooting

Problem	Solution
No sound	Check if the power indicator light is ON
	Try to turn up the volume using either the master volume control or remote control.
	Ensure the audio cables are firmly connected and the input is set correctly on the speakers.
	Check if there is signal output from the audio source.
Cannot connect via Bluetooth	Make sure the speaker is switched to Bluetooth input, in other audio input mode Bluetooth can not be paired or connected. Disconnect from any Bluetooth device by press and hold the volume dial in Bluetooth mode, then try again.
	Effective Bluetooth transmission range is 10 meters, please make sure operation is within the range.
	Try another Bluetooth device for connection.
The unit does not turn on	Check if mains power is connected. or if the wall outlet is switched on.

If you want to find out more about AIRPULSE, please visit our website at www.airpulseaudio.com

Important Safety Instruction

burn hazard
To reduce risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Thank you for purchasing AIRPULSE A200 Active Speakers. Please read this manual carefully before operating this system.

shock hazard The lightning flash with arrowhead inside the triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the product's enclosure that may be of a sufficient magnitude to constitute a risk of electric shock to persons.

RISK OF ELECTRIC SHOCK
DO NOT OPEN
To prevent the risk of electric shock, do not remove cover (or back). No user-serviceable Parts inside. Refer servicing to qualified Service personnel only.

warning The exclamation point inside the triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Clean only with dry cloth.
Do not use this speaker near water and never put this speaker into liquids or allow liquids to drip or spill onto it.
Do not place appliance filled with water on this speaker, such as vase; nor place any form of open fire such as lit candle.
Do not block any ventilation openings. Please leave enough space around the speakers to keep good ventilation (the distance should be above 5cm). Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the speaker.
Only use attachments/accessories specified by the manufacturer.
Unplug this speaker during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the speaker has been damage in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the speaker, the speaker has been exposed to rain or moisture, does not operate normally, or has been dropped.
The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
Do not use strong acid, strong alkali and other chemical solvents to clean the product surface. Please use neutral solvent or water to clean the product.
A warning that an apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.
For apparatus containing a USER-replaceable COIN/BUTTON CELL BATTERY, the following text or equivalent.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
