Summary of Contents for Bosch RG10L5

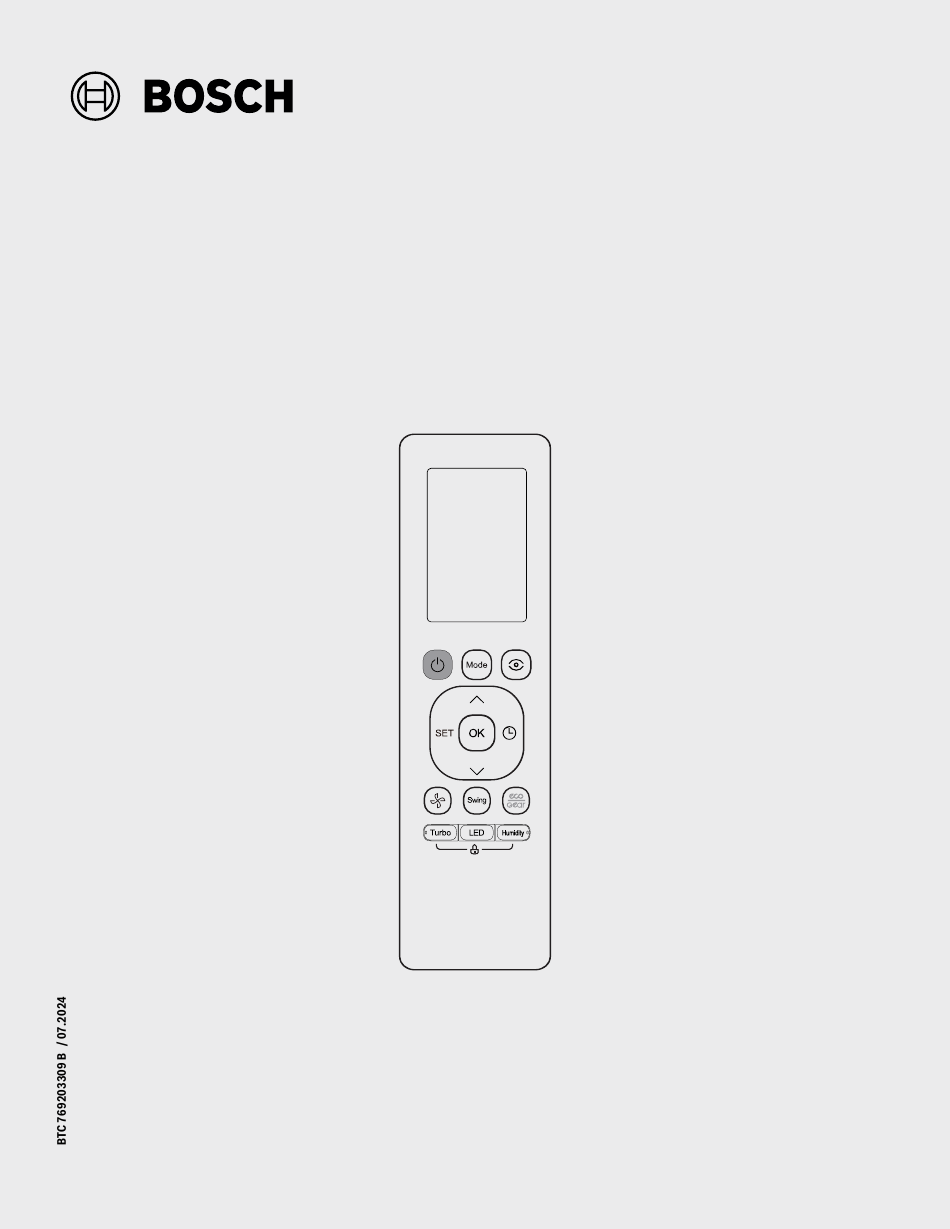

- Page 1 User Manual Remote Controller Climate 5000 Series - Wall Mounted...
- Page 2 User Manual Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024)
- Page 3 3.4.7 FP (Freeze Protection) 3.4.8 LOCK 4 Handling the Remote Controller 4.1 Location of the Remote Controller 4.2 Using the Remote Controller Holder (Optional) 4.3 Replacing Batteries Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024)
- Page 4 Transmission Distance Up to 25 ft Environment 23°F~140°F The info symbol indicates important information where there is no risk to people Table 1 or property. Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024)
- Page 5 TIMER Button will increase the auto-timed setting in 60 minutes increments. To cancel the auto-timed program, simply adjust the auto-on time to 0.0. Table 2 Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024)
- Page 6 5% increments. After setting the room humidity, it will display on the screen. NOTE: Humidity level may not be able to adjust in all configurations. Table 3 Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024)
- Page 7 Displayed when TURBO function is active functional signs are shown on the display window. Displayed when Intelligent Eye Functionis active. Displayed when FOLLOW ME function is active. Figure 4 Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024)
- Page 8 In the Auto mode, you can not switch the fan speed. The fan speed will be automatically controlled. • If the Auto mode is not comfortable , the desired mode can be selected manually. Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024)
- Page 9 While in Dry Mode, the unit will not shut down when it reaches the set temperature. The unit will will continue to run until it reaches 50 °F. Figure 8 Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024)
- Page 10 If you set both TIMER ON and TIMER OFF, the timers will activate from the time they were set. Start 2.5 hours later Figure 9 10 | Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024)
- Page 11 ): In this mode, the ambient temperature will be measured from the remote controller instead of the indoor unit itself, and adjust the system accordingly for maximum comfort. Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024) | 11...
- Page 12 -->Previous setting mode. Under GEAR operation, the display on the remote controller will alternate between electical energy consumption and set temperature. 12 | Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024)
- Page 13 If the Super heat function is stopped, “OF” displays for 3 seconds on the indoor unit display window. Change the mode or turn the unit off to stop the super heating operation. Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024) | 13...
- Page 14 (2x) Figure 20 3.4.8 LOCK Press and hold the TURBO and HUMIDITY buttons together for 5 seconds to lock/unlock the remote. Figure 21 14 | Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024)
- Page 15 Please visit our Service & Support webpage to find FAQs, videos, service bulletins, and more; www.boschheatingcooling.com/service or use your cellphone to scan the code below. Figure 23 Figure 25 Bosch Climate 5000 Series Gen 4 Wall Mounted Remote Controller - BTC 769203309 B (07.2024) | 15...
- Page 16 United States and Canada Bosch Thermotechnology Corp. 65 Grove St. Watertown, MA 02472 Tel: 800-283-3787 www.bosch-homecomfort.us BTC 769203309 B / 07.2024 Bosch Thermotechnology Corp. reserves the right to make changes without notice due to continuing engineering and technological advances.
